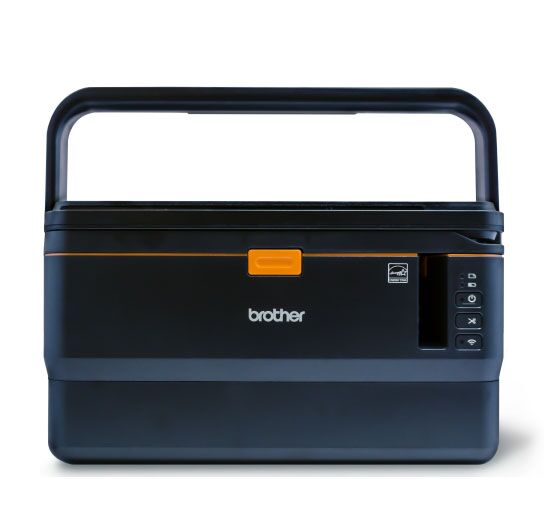

P-TOUCH EDGE 800W
Portable Industrial Desktop Label Printer with Full QWERTY Keyboard and Wi-Fi®
SKU: PT-E800W

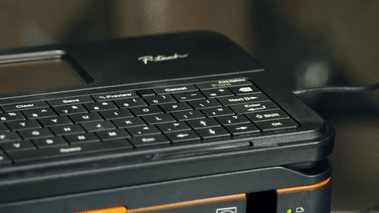

The EDGE PT-E800 offers the handheld portability of mobile printers with the advanced capabilities of desktop printers. Easily create high-quality laminated labels up to 36mm (including barcodes and QR codes) with the detachable full QWERTY keyboard. Use Wi-Fi® connectivity to print from cloud-based databases or apps. Or design custom labels in P-touch Editor design software and print from your PC with a standard USB connection. Even stash extra tapes in the convenient storage compartment.
Real Features
- Print the volumes of labels you need in 7 label sizes from 3.5mm to 36mm wide
- Connect to import databases and design labels wirelessly from apps like Cable Label Tool, Transfer Express, and iPrint&Label using Wi-Fi® connectivity
- Design your own custom labels including barcodes and QR codes with the included P-touch Editor software and PC connectivity
- Produce a strip of pre-cut labels for easy peel and application with the dual blade automatic cutter
- Take everything you need to the job site with a convenient carry handle and storage compartment for additional tape cartridges
| In the box | Label printer with detachable wired keyboard / display, Li-ion battery pack, coin cell battery, AC adapter, power cord, 36mm tape (8m), USB cable (3ft), quick start guide, safety guide |
| Dimensions | 13.4in x 7.5in x 6.9in (340.4mm x 190.5mm x 175.3mm) |
| Weight | Without tape and battery: 7.7lbs (3.5kg) |
| Memory | Up to 99 label designs (40,000 characters) |
| Control panel | 2 LEDs with 3 keys Detachable wired full size QWERTY keyboard (71 keys) with large graphic LCD and backlight |
| Real time clock | Standard |
| Operating temperature / humidity | 50° F to 95° F (10° C to 35° C), 20% to 80% non-condensing |
| Storage temperature / humidity | -4° F to 140° F (-20° C to 60° C), 20% to 80% non-condensing |
| Warranty | 2 Year Limited Warranty |
| Power | AC adapter (24VDC, 2.65A) |
| Battery | Rechargeable Li-ion battery |
| Battery yield | 15 tapes on one charge |
| Battery charging options | AC adapter |
| Battery charging time | 3 hours |
| Energy conservation certifications | Energy Star |
| Print technology | Laminating thermal transfer |
| Resolution | 360dpi |
| Max print speed | Up to 3.1ips via AC adapter, up to 2.3ips via battery |
| Max print width | 1.26in (32mm) |
| Max print length | 39.37in (1m) |
| Communications interfaces | USB v2.0, WLAN 802.11n (wireless direct), 802.11b/g/n (infrastructure), 802.11b (adhoc) |
| Communications security | SSID (32 characters), WEP 64/128 bit, WPA2-PSK (AES), LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS |
| OS compatibility | Windows®, MacOS®, Android™, iOS® For the most up-to-date compatibility, visit our Support Page |
| Print driver compatibility | Windows®, Mac® For the most up-to-date compatibility, visit our Support Page |
| SDK support | Android™, iOS® |
| Support software | Printer Driver, P-touch Editor v5.1 (with Cable Labeling Wizard), Cable Label Tool, Transfer Manager v2.2, Printer Setting Tool, Transfer Express, Update Software, BRAdmin Professional 4, BRAdmin Light, BRAgent, Driver Deployment Wizard, Firmware Update Tool |
| Apps | Pro Label Tool, Mobile Cable Label Tool, iLink&Label, iPrint&Label, Mobile Deploy, iPrint&Scan, Mobile Transfer Express, Print SDK Demo, Print Service Plug-in, P-touch Design&Print, P-touch Design&Print 2, Color Label Editor |
| Printer languages | Raster, ESC P, P-touch |
| Linear barcodes | Code39, Code128, I-2/5 (ITF), UPC-A/E, EAN-8/13, GS1-128 (UCC/EAN-128), Codabar (NW-7) |
| Fonts | Helsinki, Brussels, US, Los Angeles, San Diego, Florida, Calgary, Belgium, Atlanta, Adams, Brunei, Sofia, Germany, Letter Gothic |
| Function keys | Home (general, built-in templates and layouts, file, cable wrap / flag, downloaded templates, settings, programmable function settings), programmable function, insert (barcode), serialize (standard, advanced), symbol |
| Keyboard | QWERTY, full size touch type (71 keys) |
| Print capabilities | Up to 64 alpha-numeric characters, up to 99 alpha-numeric character increments (individual or simultaneous), auto formats (Cable wrap, cable flag, 35 templates, 17 block layouts), 466 symbols, text insert, multi-block up to 99, 20 languages, up to 99 graphic images (6MB) |
| Print layout | Print preview, up to 7 lines per label, 12 type styles, 11 type sizes, 5 type widths, vertical printing, mirror printing, repeat printing up to 99 copies |
| Cutter | Automatic dual blade cutter (full and easy to peel strip cutting) |
| Media sensors | Smart Identification |
| Media type | HGe, TZe, HSe, STe, FLe |
| Media loading | Cartridge |
| Media sizes | 36mm, 24mm, 18mm, 12mm, 9mm, 6mm, 3.5mm |
| Media width | 36mm (1.4in) max |
| Max print height | 1.26in (32mm) |
Related supplies
HGeS2615PK
36mm (1.4") black on yellow extra strength adhesive laminated tape (5 pack)
FLe6511
21mm x 45mm yellow non-laminated flag labels
HSe231
11.7mm (0.46in) black on white heat shrink tube
TZeSL661
36mm (1.4in) black Ink on yellow self-laminating label
TZeSL651
24mm (0.94in) black Ink on yellow self-laminating label
TZeSL261
36mm (1.4in) black Ink on white self-laminating label
TZeSL251
24mm (0.94in) black Ink on white self-laminating label

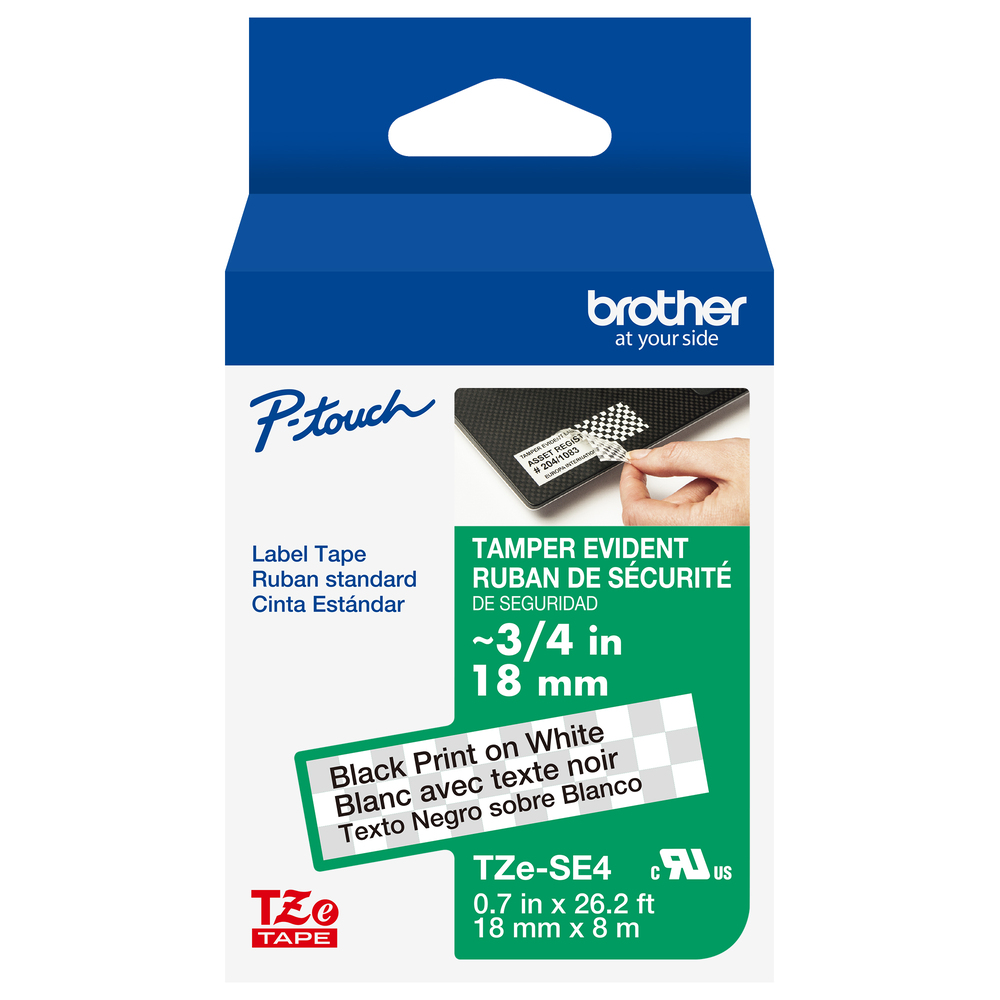

TZeSE4
18mm (0.7in) black on white tamper evident laminated tape

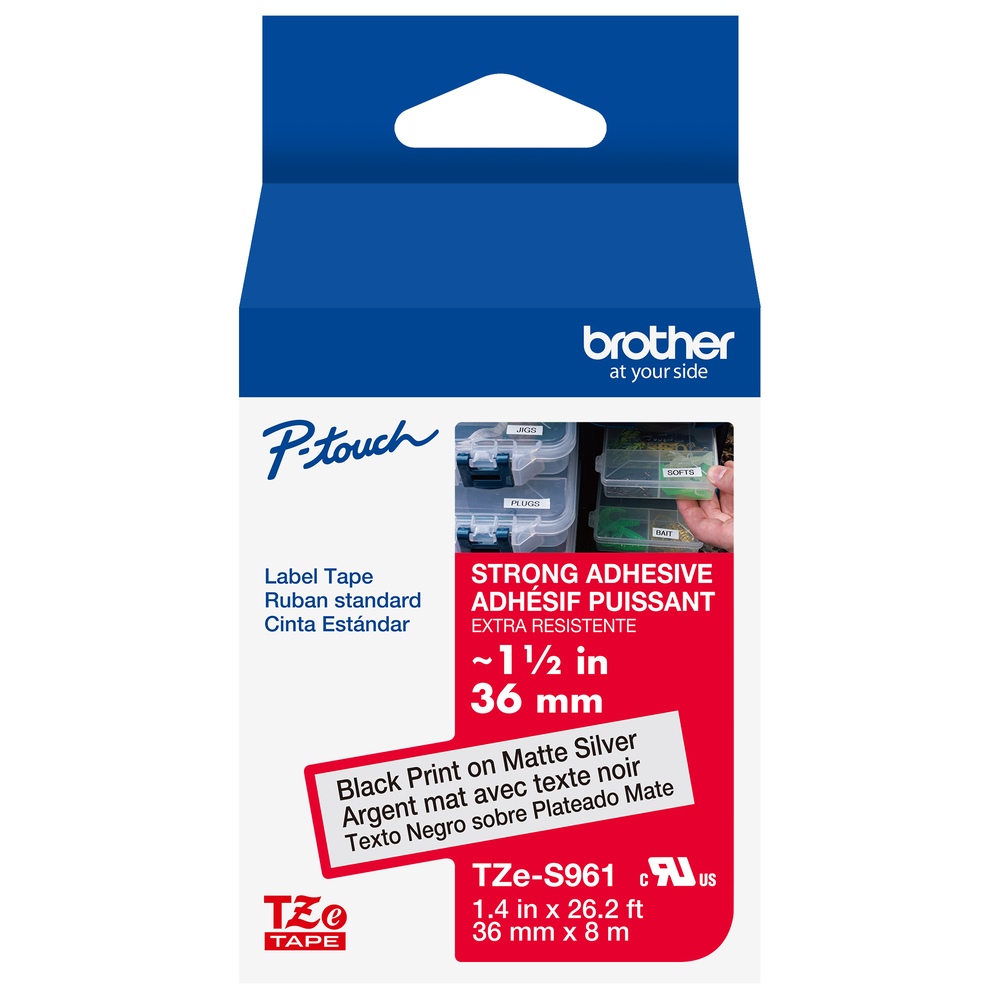

TZeS961
36mm (1.4in) black on matte silver extra strength adhesive laminated tape

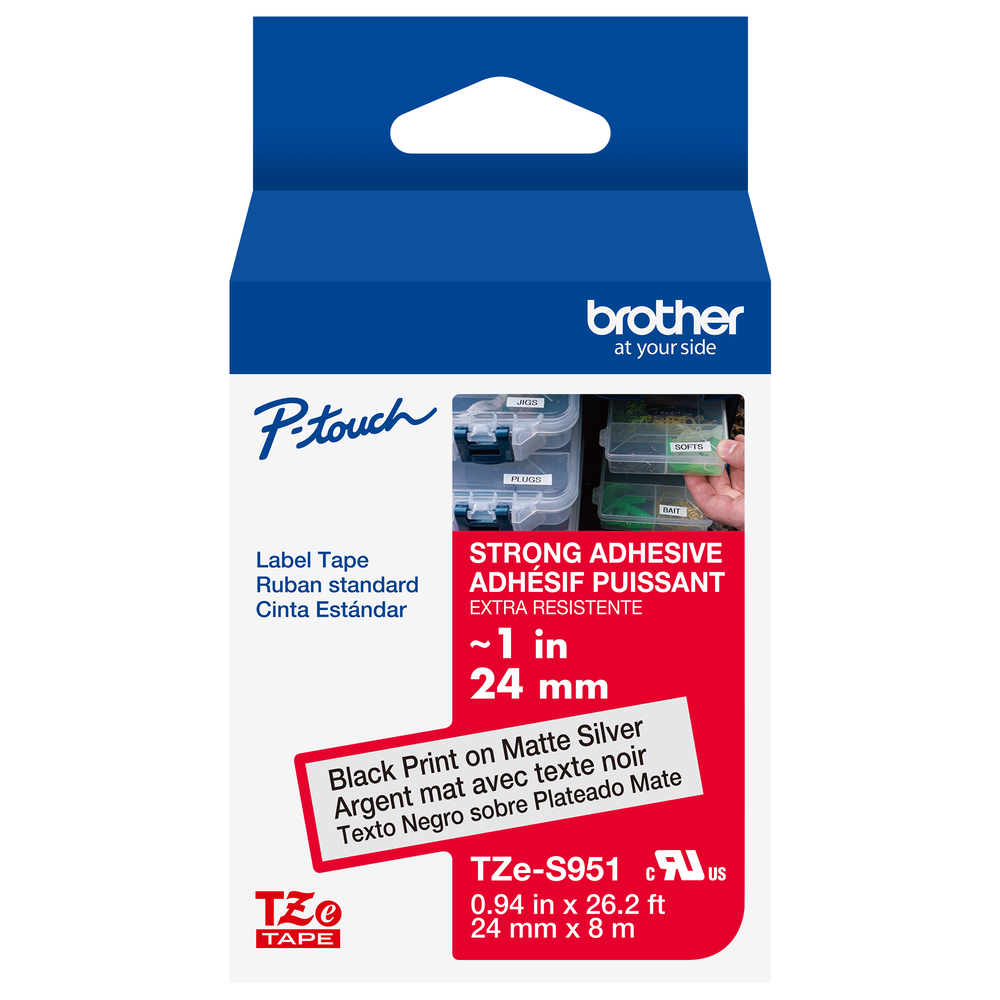

TZeS951
24mm (0.94in) black on matte silver extra strength adhesive laminated tape

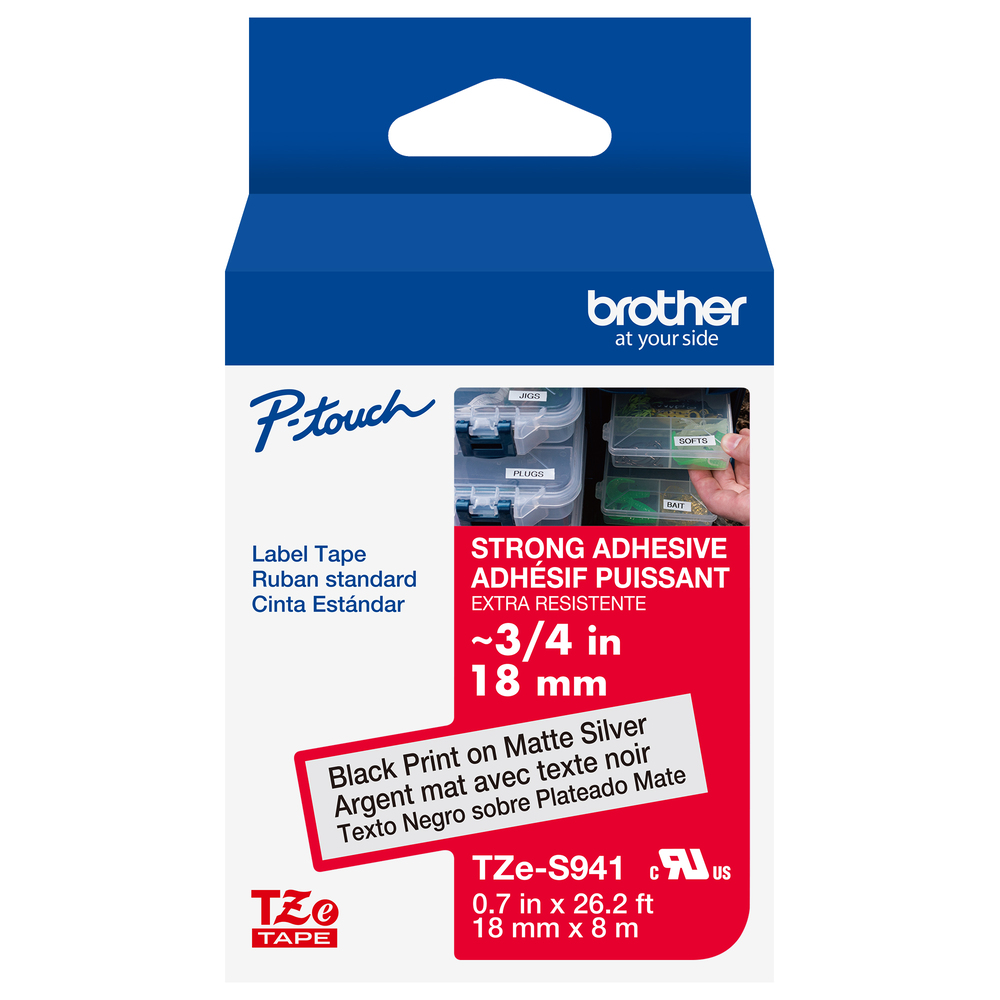

TZeS941
18mm (0.7in) black on matte silver extra strength adhesive laminated tape

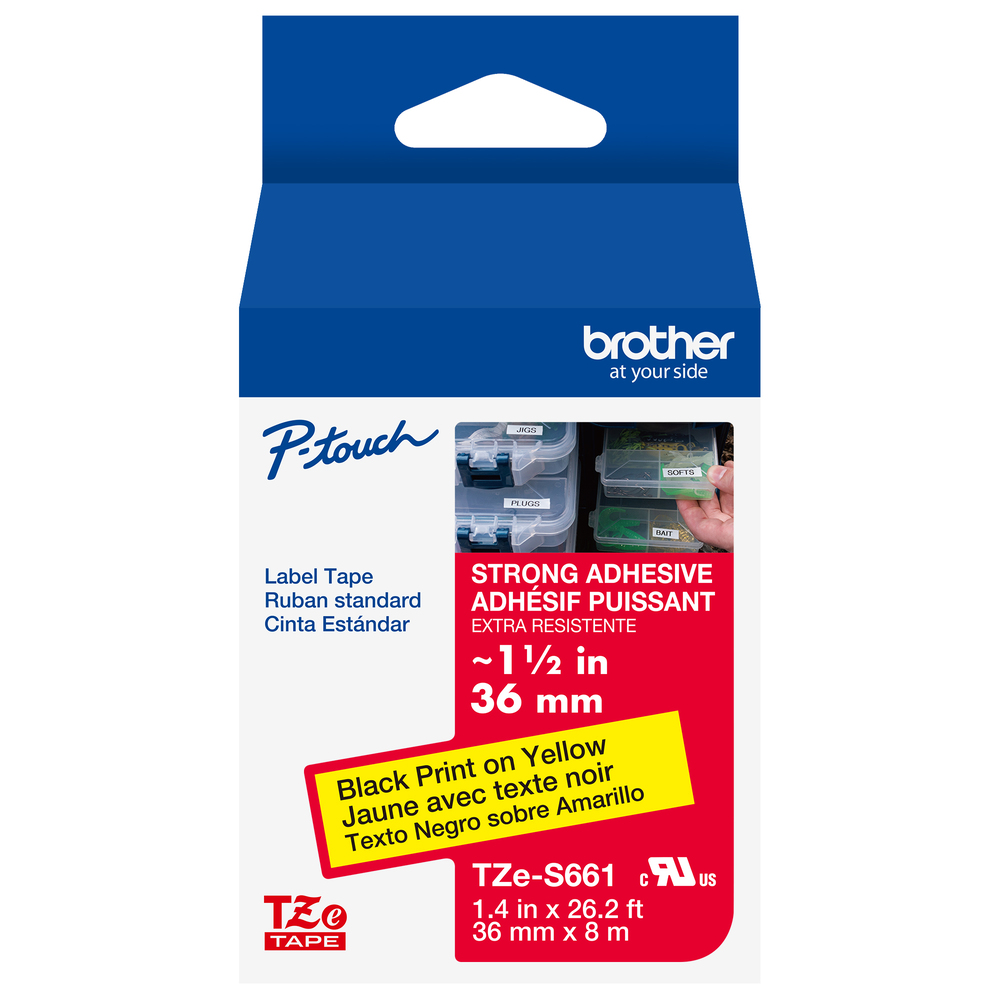

TZeS661
