RUGGEDJET 3230BL

3-Inch Rugged Mobile Receipt and Label Printer with Bluetooth® Wireless Technology and Li-ion battery

SKU: RJ-3230B-L

2022 CStore Product of the Year Award Logo

The RuggedJet 3230BL offers extreme durability and large media capacity that make it an optimal solution for on-the-go printing of public safety citations and field service receipts. Plus, you can charge with standard USB-C power and connect to print wirelessly from your mobile device with Bluetooth® connectivity. This rugged receipt and label printer also includes a rechargeable smart Li-ion battery with staying power to print in the field or on the road all day.

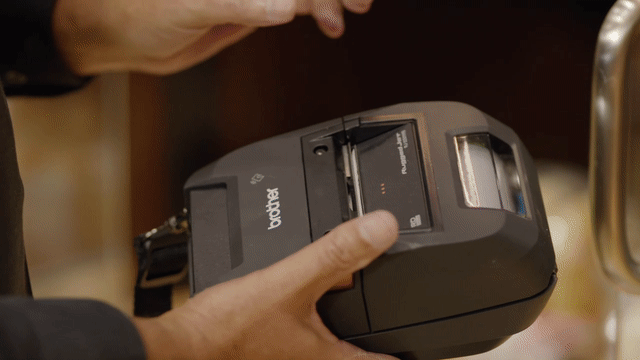

Beverage Delivery Driver holding RuggedJet 3200 Mobile Printer with Delivery Receipt

Real Features

  • Print 1-inch to 3-inch labels, receipts, and tags at up to 5 inches per second print speed to increase efficiency
  • Get ultimate durability for even the toughest conditions with a rugged design that features 6 foot drop protection, plus IP54 dust and water resistance even without a case
  • Print all day in a single charge with the included smart Li-ion battery
  • Expand the functionality of your printer with optional accessories, including mounts and carrying cases, AC adapters and DC vehicle adapters, expandable drop-in battery chargers, and more
  • Connect easily with USB Ver.2.0 (Full Speed) (Type C), Ethernet, and Bluetooth Ver. 5.0
  • Windows®, Android, and Apple® iOS®, MFi compatibility
  • 203dpi thermal print technology for top quality
  • Available with pre-installed conductor plate for compatibility with single or 4 bay docking station (see RJ-3230B-LCP)

In the box Printer, belt clip, documents, roll holder stop, roll holder (for 1.375" core diameter), Li-Ion smart battery
Dimensions 4.6in x 7.1in x 3.0in (117mm x 180mm x 77mm)
Weight Without battery: 1.5lbs (680g)
With battery: 1.78lbs (807g)
Memory 256MB DRAM / 128MB Flash
Control panel 1 LED with 4 buttons
Real time clock NTP (Network Time Protocol) support via LAN
Audio device Standard
Drop protection 6.56ft (2.0m), multiple drop, under controlled environment
Sealing certification IP54 dust- and water-resistance rating (without case)
Safety UL (AC Adapter)
Operating temperature / humidity Operate: -4° F to 131° F (-20° C to 55° C)
Operate with peeler: 14° F to 95° F (-10° C to 35° C)
Operate with linerless: 50° F to 86° F (10° C to 30° C)
Charge: 32° F to 104° F (0° C to 40° C)
10% to 90% non-condensing
With peeler or linerless: 50% non-condensing
Storage temperature / humidity -4° F to 140° F (-20° C to 60° C)
10% to 90% non-condensing
Warranty 2 Year Premier Limited Warranty

Power 15V DC 4.0A, USB-C
Battery Rechargeable Li-Ion smart battery, 7.2V, 3000mAh
Battery yield Continuously printing 15,000 labels (76mm x 29mm), in controlled environment
Battery charging options AC adapter (100-240V, 50/60Hz), car adapter (12-24V), USB Type C, battery charger which can be combined up to 4
Single cradle: single bay Ethernet and charging cradle
4-bay cradle: quad bay Ethernet and charging cradle
Battery charging time 3 hours with AC adapter
Print technology Direct thermal
Resolution 203dpi
Max print speed Up to 5ips
Max print width 2.8in (72 mm) max
Max print length 118.1in (3m) max

Communications interfaces USB (Type C), Bluetooth®, Ethernet (when docked in cradle)
Communications security Wired LAN: SSL/TLS1.0/1.1/1.2 (HTTPS, IPPS) SNMPv3,
802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)
OS compatibility Windows®
For the most up-to-date compatibility, visit our Support Page
Print driver compatibility Windows®, Linux
For the most up-to-date compatibility, visit our Support Page
SDK support Android 6 or later, iOS® 10 or later (supports Bluetooth® communication from iOS® 12.2 or later)
Support software P-Touch Editor, P-Touch Transfer Express, Printer Setting Tool, BRAdmin Light, BRAgent, BRAdmin Professional 4
Apps Support Center, PJ-673 Print, RJ-4040 Print, Mobile Deploy, Mobile Transfer Express

Printer languages BPL (P-touch® Template 2.0), Raster, ESC/P
Emulations ZPL II, CPCL (CPCL page print mode / CPCL line print mode)
Linear barcodes Common: CODE39, ITF(I-2/5), EAN-8(JAN8), EAN-13(JAN13), UPC-A, UPC-E, CODABAR(NW-7), CODE128, GS1-128(UCC/EAN-128), POSTNET, GS1 DataBar (RSS)
Additional ESC/P mode: CODE93, UPC/EAN EXTENSION, MSI, Intelligent Mail Barcode
Additional P-touch Template mode: Intelligent Mail Barcode
Additional ZPL II mode: CODE93, UPC/EAN EXTENSION, MSI, Intelligent Mail Barcode, Industrial 2-of-5, Standard 2-of-5
Additional CPCL mode: CODE93, MSI
(Supported barcodes depend on printer command. Please refer to the command reference for details.)
2D barcodes Common: QR Code, PDF417, MaxiCode, Aztec
Additional ESC/P mode: Micro QR Code, MicroPDF417, DataMatrix
Additional P-touch Template mode: GS1 Databar Composite, Micro QR Code, MicroPDF417, DataMatrix
Additional ZPL II mode: GS1 Databar Composite, MicroPDF417, DataMatrix
Additional CPCL mode: GS1 Databar Composite
(Supported barcodes depend on printer command. Please refer to the command reference for details.)
Fonts ESC/P: 6 BMP & 4 Outline Fonts
P-touch Template: 4 Outline Fonts
ZPL II: 2 BMP & 1 Outline Font
CPCL: 7 BMP Fonts
Downloadable fonts available with font manager

Cutter Tear up & tear down bars
Media sensors Transmissive, reflective
Media type Receipt, gap/black mark labels, tags, linerless (optional)
Media loading Auto-locking roll loading
Media roll diameter 2.6in (66 mm)
Media inner core diameter 0.5in (12.7mm) to 0.75in (19.0mm)
Media width 3.15in (80mm)
Max media thickness 2.2 mil (0.058mm) to 6.6 mil (0.170mm)
