Get 2-inch printing fit to your work with endurance to handle everyday hazards.

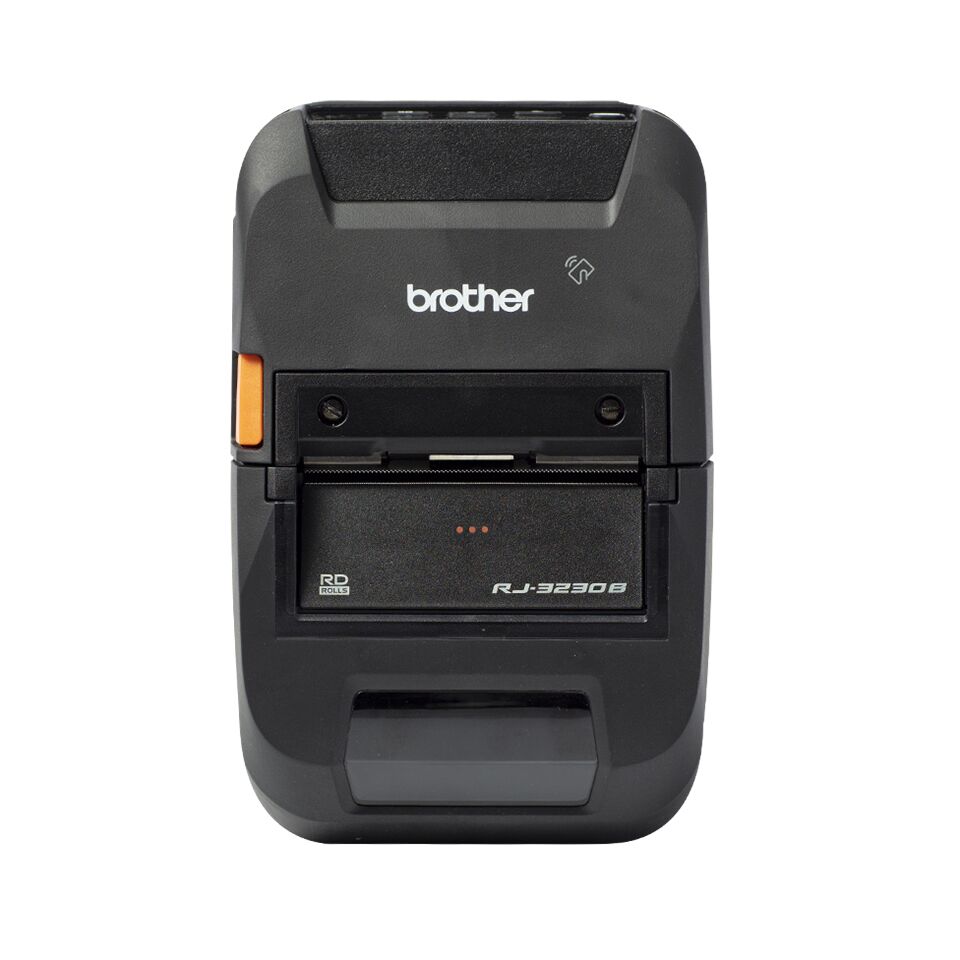

RUGGEDJET 3230BLF
3-Inch Rugged Mobile Linerless Label Printer with Bluetooth® Wireless Technology and Li-ion battery
SKU: RJ-3230B-LF
The RuggedJet 3230BLF delivers mobile linerless labeling up to 3.15 inches. Support efficiency and accuracy by labeling right at point of application thanks to Bluetooth® wireless technology. With no need to peel labels from liners, linerless printing boosts productivity while reducing waste and downtime. More labels per roll mean fewer changes, and eliminating liners helps keep workspaces cleaner and safer.
Built tough for demanding work on-the-go through the entire shift, this rugged mobile printer features universal USB-C charging and a long-lasting Li-ion battery. Help improve efficiency, accuracy, and sustainability with the RJ-3230BLF — the ultimate mobile printing solution.
Real Features
- Print 1-inch to 3-inch linerless labels at up to 5 inches per second1 print speed to increase efficiency
- Increase labels per roll, speed up label application, improve workplace safety and reduce landfill waste with linerless printing
- Get ultimate durability for even the toughest conditions with a rugged design that features 6 foot drop protection, plus IP54 dust and water resistance even without a case2
- Print all day in a single charge with the included smart Li-ion battery2
- Expand the functionality of your printer with optional accessories, including mounts and carrying cases, AC adapters and DC vehicle adapters, expandable drop-in battery chargers, and more
- Connect easily with USB Ver.2.0 (Full Speed) (Type C), Ethernet, and Bluetooth® Ver. 5.0
- Windows®, Android™, and Apple® iOS®, MFi compatibility
- 203dpi thermal print technology for top quality
| In the box | Printer, belt clip, documents, roll holder stop, roll holder (for 1.375" core diameter), Li-Ion smart battery |
| Dimensions | 4.6in x 7.1in x 3.0in (117mm x 180mm x 77mm) |
| Weight | Without battery: 1.5lbs (680g) With battery: 1.78lbs (807g) |
| Memory | 256MB DRAM / 128MB Flash |
| Control panel | 1 LED with 4 buttons |
| Real time clock | NTP (Network Time Protocol) support via LAN |
| Audio device | Standard |
| Drop protection | 6.56ft (2.0m), multiple drop, under controlled environment |
| Sealing certification | IP54 dust- and water-resistance rating (without case) |
| Safety | UL (AC Adapter) |
| Operating temperature / humidity | Operate: -4° F to 131° F (-20° C to 55° C) Operate with peeler: 14° F to 95° F (-10° C to 35° C) Operate with linerless: 50° F to 86° F (10° C to 30° C) Charge: 32° F to 104° F (0° C to 40° C) 10% to 90% non-condensing With peeler or linerless: 50% non-condensing |
| Storage temperature / humidity | -4° F to 140° F (-20° C to 60° C) 10% to 90% non-condensing |
| Warranty | 2 Year Premier Limited Warranty |
| Power | 15V DC 4.0A, USB-C |
| Battery | Rechargeable Li-Ion smart battery, 7.2V, 3000mAh |
| Battery yield | Continuously printing 15,000 labels (76mm x 29mm), in controlled environment |
| Battery charging options | AC adapter (100-240V, 50/60Hz), car adapter (12-24V), USB Type C, battery charger which can be combined up to 4 Single cradle: single bay Ethernet and charging cradle 4-bay cradle: quad bay Ethernet and charging cradle |
| Battery charging time | 3 hours with AC adapter |
| Print technology | Direct thermal |
| Resolution | 203dpi |
| Max print speed | Up to 5ips |
| Max print width | 2.8in (72 mm) max |
| Max print length | 118.1in (3m) max |
| Communications interfaces | USB (Type C), Bluetooth®, Ethernet (when docked in cradle) |
| Communications security | Wired LAN: SSL/TLS1.0/1.1/1.2 (HTTPS, IPPS) SNMPv3, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS) |
| OS compatibility | Windows® For the most up-to-date compatibility, visit our Support Page |
| Print driver compatibility | Windows®, Linux For the most up-to-date compatibility, visit our Support Page |
| SDK support | Android™ 6 or later, iOS® 10 or later (supports Bluetooth® communication from iOS® 12.2 or later) |
| Support software | P-Touch Editor, P-Touch Transfer Express, Printer Setting Tool, BRAdmin Light, BRAgent, BRAdmin Professional 4 |
| Apps | Support Center, PJ-673 Print, RJ-4040 Print, Mobile Deploy, Mobile Transfer Express |
| Printer languages | BPL (P-touch® Template 2.0), Raster, ESC/P |
| Emulations | ZPL II, CPCL (CPCL page print mode / CPCL line print mode) |
| Linear barcodes | Common: CODE39, ITF(I-2/5), EAN-8(JAN8), EAN-13(JAN13), UPC-A, UPC-E, CODABAR(NW-7), CODE128, GS1-128(UCC/EAN-128), POSTNET, GS1 DataBar (RSS) Additional ESC/P mode: CODE93, UPC/EAN EXTENSION, MSI, Intelligent Mail Barcode Additional P-touch Template mode: Intelligent Mail Barcode Additional ZPL II mode: CODE93, UPC/EAN EXTENSION, MSI, Intelligent Mail Barcode, Industrial 2-of-5, Standard 2-of-5 Additional CPCL mode: CODE93, MSI (Supported barcodes depend on printer command. Please refer to the command reference for details.) |
| 2D barcodes | Common: QR Code, PDF417, MaxiCode, Aztec Additional ESC/P mode: Micro QR Code, MicroPDF417, DataMatrix Additional P-touch Template mode: GS1 Databar Composite, Micro QR Code, MicroPDF417, DataMatrix Additional ZPL II mode: GS1 Databar Composite, MicroPDF417, DataMatrix Additional CPCL mode: GS1 Databar Composite (Supported barcodes depend on printer command. Please refer to the command reference for details.) |
| Fonts | ESC/P: 6 BMP & 4 Outline Fonts P-touch Template: 4 Outline Fonts ZPL II: 2 BMP & 1 Outline Font CPCL: 7 BMP Fonts Downloadable fonts available with font manager |
| Cutter | Tear up bar |
| Media sensors | Transmissive, reflective |
| Media type | Receipt, gap/black mark labels, tags, linerless |
| Media loading | Auto-locking roll loading |
| Media roll diameter | 2.6in (66 mm) |
| Media inner core diameter | 0.5in (12.7mm) to 0.75in (19.0mm) |
| Media width | 3.15in (80mm) |
| Max media thickness | 2.2 mil (0.058mm) to 6.6 mil (0.170mm) |
