RUGGEDJET 3255WBLCP

3-Inch Rugged Mobile Receipt and Label Printer with Wi-Fi®, Bluetooth® Wireless Technology, Li-ion Battery and Charging Conductor Plate

SKU: RJ-3255WB-LCP

Designed for mobile retail environments, the RuggedJet 3255WBLCP helps teams print labels and receipts wherever work happens. A rechargeable smart Li-ion battery supports full-shift printing, while rugged design and large media capacity help manage higher volumes of shelf tags, markdown labels, and more. Built-in Wi-Fi® and enhanced Bluetooth® connectivity allow wireless printing from a range of mobile devices. USB-C charging offers added convenience, and the pre-installed conductor plate supports charging through compatible docking stations.

Try one for free Contact sales team
A person placing a portable Brother printer onto a charging dock in a warehouse setting.

Real features

  • Print 1-inch to 3-inch labels, receipts, and tags at up to 5 inches per second1 print speed to increase efficiency
  • Get ultimate durability for even the toughest conditions with a rugged design that features 6.5ft drop protection2, plus IP54 certification for dust and water resistance even without a case
  • Print through a full-day shift with industry-leading battery life of the smart Li-ion battery2, complete with battery status indicator
  • Connect easily with USB Type-C®, Bluetooth®, and Wi-Fi®
  • Expand the functionality of your printer with optional accessories, including mounts and carrying cases, AC adapters and DC vehicle adapters, expandable drop-in battery chargers, and more3
  • Use the pre-installed conductor plate for compatibility with single or 4 bay docking station
  • Windows®, Android™, and Apple iOS® compatibility
  • 203dpi thermal print technology for top quality resolution

In the box Printer, belt clip, documents, roll holder (for 1.375in core diameter installed), Li-ion smart battery, docking port
Dimensions 4.6in x 7.1in x 3.0in (117mm x 180mm x 77mm)
Weight Without battery: 1.5lbs (680g)
With battery: 1.78lbs (807g)
Memory 256MB DRAM / 128MB Flash
Control panel 1 LED with 4 buttons
Real time clock NTP (Network Time Protocol) support via LAN
Audio device Standard
Drop protection 6.56ft (2.0m), multiple drop, under controlled environment
Sealing certification IP54 dust- and water-resistance rating (without case)
Safety UL (AC Adapter)
Operating temperature / humidity Operate: 5° F to 122° F (-15° C to 50° C)
Operate with peeler: 14° F to 95° F (-10° C to 35° C)
Operate with linerless: 50° F to 86° F (10° C to 30° C)
Charge: 32° F to 104° F (0° C to 40° C) 10% to 90% non-condensing
With peeler or linerless: 50% non-condensing
Storage temperature / humidity -4° F to 140° F (-20° C to 60° C)
10% to 90% non-condensing
Warranty 2 Year Premier Limited Warranty

Power 15V DC 4.0A, USB-C
Battery Rechargeable Li-ion smart battery, 7.2V, 3000mAh
Battery yield Continuously printing 15,000 labels: 3in x 1.14in (76mm x 29mm), in controlled environment
Battery charging options AC adapter (100-240V, 50/60Hz), car adapter (12-24V), USB Type C, battery charger which can be combined up to 4
Single cradle: single bay Ethernet and charging cradle
4-bay cradle: quad bay Ethernet and charging cradle
Battery charging time 4 hours with AC adapter
Print technology Direct thermal
Resolution 203dpi
Max print speed Up to 5ips
Max print width 2.8in (72mm) max
Max print length 118.1in (3m) max

Communications interfaces USB-C, Bluetooth®, Wi-Fi®, Ethernet (when docked in cradle)
Communications security Ad hoc Mode: N/A
Infrastructure Mode:
Personal mode: Open System None/WEP Public Key Authentication WEP WPA/WPA2-PSK/WPA3-SAE (TKIP+AES / AES), WPA3-SAE (AES)
Enterprise mode: EAP-FAST (TKIP/AES) PEAP (TKIP/AES) EAP-TLS (TKIP/AES) EAP-TTLS (TKIP/AES)
Wireless direct Mode: WPA2-PSK (AES)
OS compatibility Windows®
For the most up-to-date compatibility, visit our Support Page
OS printing Airprint®
Print driver compatibility Windows®, Linux
For the most up-to-date compatibility, visit our Support Page
SDK support Android™ 8 to 15 or later
iOS® 15 to 18 or later
Support software P-Touch Editor, P-Touch Transfer Express, BRConfiguration Tool, BRAdmin Light, BRAgent, BRAdmin Professional 4
Apps Support Center, PJ-673 Print, RJ-4040 Print, Mobile Deploy, Mobile Transfer Express

Printer languages BPL (P-touch® Template 2.0), Raster, ESC/P
Emulations ZPL II emulation, CPCL emulation (CPCL page print mode / CPCL line print mode)
Linear barcodes Common: CODE39, ITF(I-2/5), EAN-8(JAN8), EAN-13(JAN13), UPC-A, UPC-E, CODABAR(NW-7), CODE128, GS1-128(UCC/EAN-128), POSTNET, GS1 DataBar (RSS)
Additional ESC/P mode: CODE93, UPC/EAN EXTENSION, MSI, Intelligent Mail Barcode
Additional P-touch Template mode: Intelligent Mail Barcode
Additional ZPL II mode: CODE93, UPC/EAN EXTENSION, MSI, Intelligent Mail Barcode, Industrial 2-of-5, Standard 2-of-5
Additional CPCL mode: CODE93, MSI
(Supported barcodes depend on printer command. Please refer to the command reference for details.)
2D barcodes Common: QR Code, PDF417, MaxiCode, Aztec
Additional ESC/P mode: Micro QR Code, MicroPDF417, DataMatrix
Additional P-touch Template mode: GS1 Databar Composite, Micro QR Code, MicroPDF417, DataMatrix
Additional ZPL II mode: GS1 Databar Composite, MicroPDF417, DataMatrix
Additional CPCL mode: GS1 Databar Composite
(Supported barcodes depend on printer command. Please refer to the command reference for details.)
Fonts ESC/P: 6 BMP & 4 Outline Fonts
P-touch Template: 4 Outline Fonts
ZPL II: 5 BMP & 1 Outline Font
CPCL: 7 BMP Fonts

Downloadable fonts available with font manager

Cutter Tear up & tear down bars
Media sensors Transmissive, reflective
Media type Receipt, gap/black mark labels, tags, linerless (optional)
Media loading Auto-locking roll loading
Media roll diameter 2.6in (66 mm)
Media inner core diameter 0.5in (12.7mm) to 0.75in (19.0mm)
Media width 3.15in (80mm)
Max media thickness 2.2 mil (0.058mm) to 6.6 mil (0.170mm)
Download the datasheet

Related supplies

RD001U5V2

RDR01U5

2in wide standard direct thermal receipt paper, continuous roll
Go to product
RD003U1P

RDR01U1

2in x 1in white premium direct thermal labels with black mark, die-cut roll
Go to product
RDQ02U1

RDQ03U1

2in x 4in white premium direct thermal labels, die-cut roll
Go to product
RDQ02U1

RDQ02U1

2in x 3in white premium direct thermal labels, die-cut roll
Go to product
RD003U1P

RDQ01U1

2in x 1in white premium label, die-cut roll with gap
Go to product
RD001U5V3

RDP04U5

3in wide premium direct thermal receipt paper, continuous roll
Go to product
RD001U5V2

RDP02U5

3in wide standard direct thermal receipt paper, continuous roll
Go to product
RD001U5V2

RDP01U5

2in wide standard direct thermal receipt paper, continuous roll
Go to product
RD-SO2U1

RDP01U1

3in x 4in white with Sensor mark premium direct thermal labels, die-cut roll with black mark
Go to product
RD001U5V3

RD017U5P

3in bright white economy grade receipt paper, continuous roll
Go to product
RD003U1P

RD016U1P

1.5in x 1.5in white standard direct thermal perforated labels, die-cut roll
Go to product
RD010U1P

RD010U1P

3in x 1in uncoated direct thermal labels, die-cut with gap
Go to product

Related accessories

LBX115001-USBCPower SupplyWithACCord

LBX115001

AC / USB Type-C® charging power supply with AC cord for P-touch EDGE, PocketJet 8 and RuggedJet 3200
Go to product
PA-BC-003

PA-BC-003

Expandable drop-in battery charger for RuggedJet 3200 and RuggedJet 4200 printers
Go to product
LB3690-car-adapter

LB3690

3ft automobile auxiliary power outlet adapter for PocketJet & RuggedJet printers
Go to product
PA-BT-006

PA-BT-006

Rechargeable Li-Ion Smart battery for RuggedJet 4 printers
Go to product
PAAD003-USBCPower Supply

PA-AD-003

AC / USB Type-C® charging power supply (no AC cord) for PocketJet 8, RuggedJet 3200 and P-touch EDGE
Go to product
palp007

PA-LP-007

Peeler conversion kit for RuggedJet 3200 printers
Go to product
PACR005

PA-CR-005

Single bay charging / ethernet latching printer cradle for RuggedJet 3200 printers
Go to product
PA4CR003

PA-4CR-003

4-bay charging / ethernet latching printer cradle for RuggedJet 3200 printers
Go to product
A black USB-C cable coiled in a circle, with connectors visible at both ends, against a plain white background.

LBX116001

6ft USB cable Type C to C for RuggedJet 3200, PocketJet and P-touch EDGE printers
Go to product
A black USB-C cable coiled in a circle, with connectors visible at both ends, against a plain white background.

LBX114001

4ft USB cable Type C to C for RuggedJet 3200, PocketJet and P-touch EDGE printers
Go to product
LBX110001

LBX110001

10ft USB cable Type A to C for RuggedJet 3200, PocketJet and P-touch EDGE printers
Go to product
LBX106001

LBX106001

6ft USB cable Type A to C for RuggedJet 3200, PocketJet and P-touch EDGE printers
Go to product
Software & Drivers

Software & Drivers

Download and install the latest drivers and software for your Brother products.

Get software & drivers
Manuals & Guides

Manuals & Guides

Download the latest manuals and user guides for your Brother products.

Get the product manual
Support & FAQs

Support & FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

Get Support
Quick Links

Quick Links

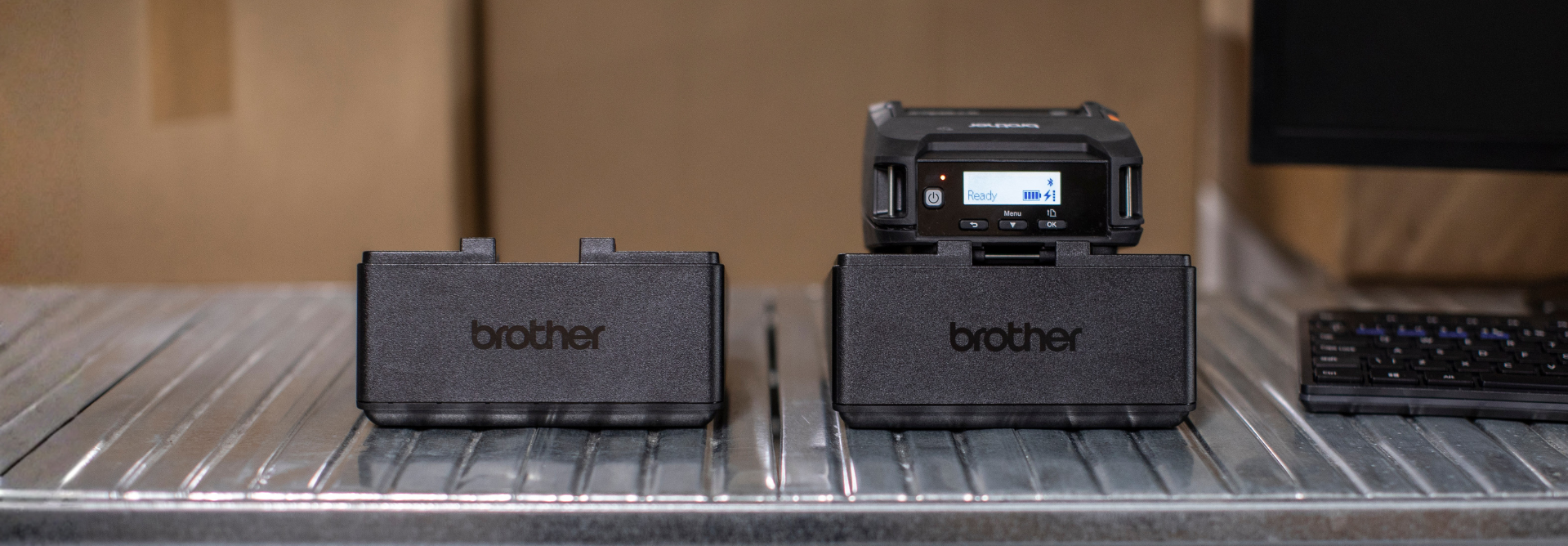

Two Brother label printer devices on a metal surface, one with a display screen, next to a computer keyboard.
