Get 2-inch printing fit to your work with endurance to handle everyday hazards.

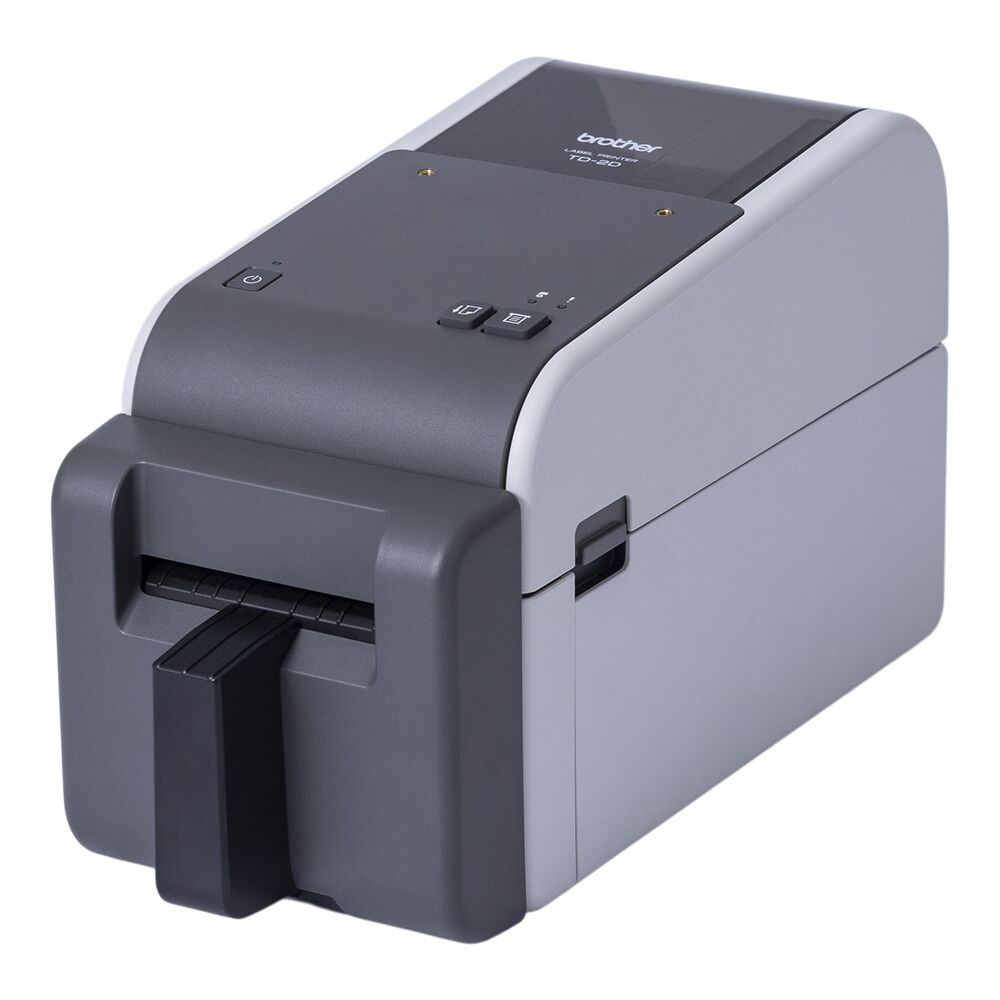

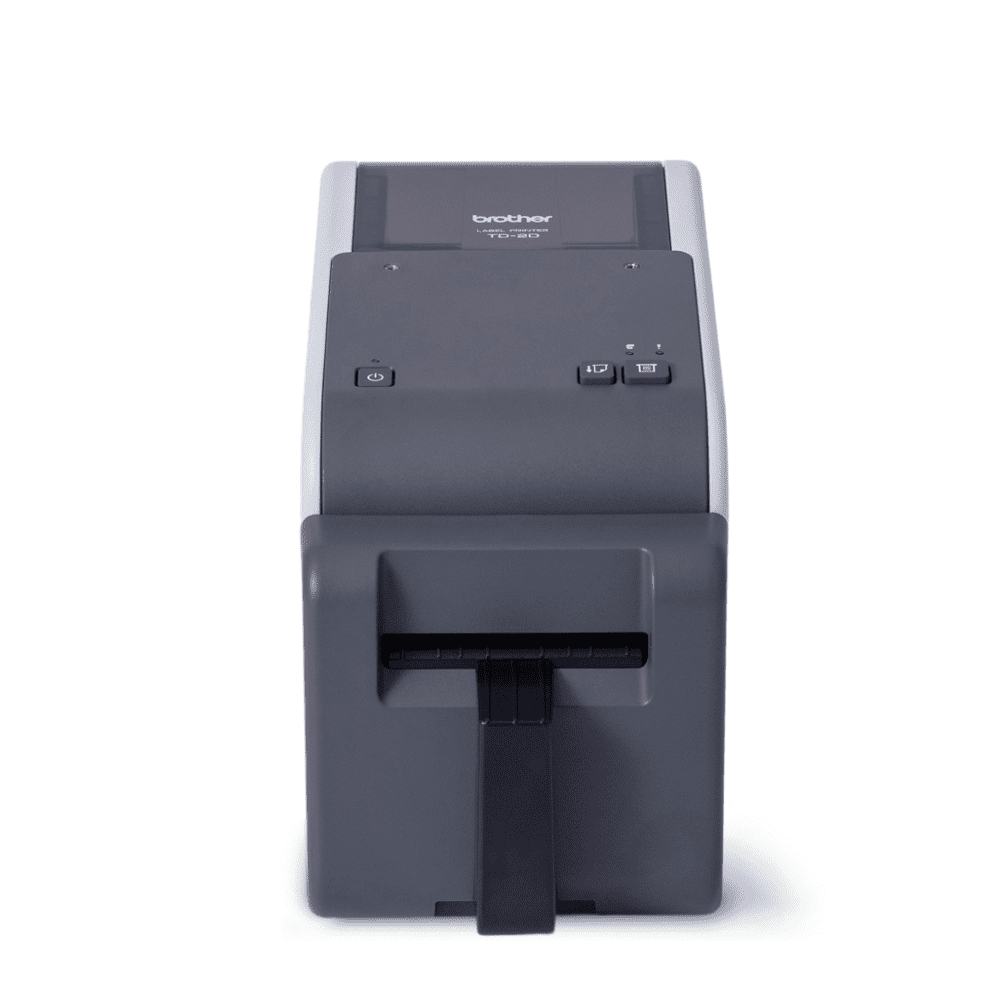

TD 2320DFC300
High-Resolution 2-Inch Linerless Label Printer with USB and Network Capability
SKU: TD-2320DFC300
With 300dpi resolution, the TD-2320DFC300 linerless label printer produces sharp, precise fonts and details, making it an excellent choice for nutrition, ingredient, pharmacy, and veterinary applications. Designed with linerless technology, it eliminates the need to peel liners, speeding up labeling processes while fitting more labels per roll to reduce downtime. Say goodbye to cluttered workspaces and messy liner waste, and hello to a safer, cleaner environment—all while supporting your sustainability goals by minimizing landfill contributions.
Ideal for stationary setups, the TD-2320DFC300 features a network connection and USB interface, making it perfect for a single point of application shared by multiple users. Its connectivity supports centralized management and ensures seamless integration into your existing systems. The durable, compact design fits neatly into your countertop or workstation, and the integrated cutter delivers clean, professional edges for every label.
Real Features
- Print linerless labels up to 2.4 inches wide at up to 6 inches per second print speed to increase efficiency
- Increase labels per roll, speed up label application, improve workplace safety and reduce landfill waste with linerless printing
- Stand up to the toughest shifts with splash and spill resistant keypad and durable metal components
- Choose your own labels and reduce roll change frequency with capacity up to 5 inch in diameter and drop-in spindle-less design
- Create professional labels with the included P-touch Editor label design software1 application
- 300dpi thermal print technology for reliable quality
- Connect easily with Ethernet, USB 2.0 and RS-232C Serial interfaces
- Get the confidence of a 2-year Premier Limited Warranty
| In the box | Printer, linerless cutter, AC adapter, power cord, USB A to C cable, media roll holder (1in & 1.5in) installed, media disk roll holder for (0.5in & 0.75in), quick start guide, safety guide |
| Dimensions | 4.7in x 10.1in x 6.2in (119mm x 256mm x 158mm) |
| Weight | 3.95lbs (1.79kg) |
| Memory | 256MB RAM / 32MB Flash / 32MB User Area |
| Control panel | 3 LEDs with 3 buttons |
| Real time clock | Standard with battery backup |
| Operating temperature / humidity | 41° F to 104° F (5° C to 40° C), 20% to 80% non-condensing |
| Storage temperature / humidity | -4° F to 140° F ( -20° C to 60° C), 10% to 90% non-condensing |
| Warranty | 2 Years Premier Limited Warranty |
| Power | External AC Adapter (Input: 100-240V AC 50/60Hz 1.5A, Output: 24V DC 3.6A) External Device Charging: USB-C at 5V/3A |
| Battery | 14.4v, 1750 mAh, 26Wh (optional) |
| Battery yield | 13,000 labels (50mm x 30mm), in a controlled environment |
| Battery charging options | Direct in battery base or optional single slot charger |
| Battery charging time | Up to 2.2hrs |
| Energy conservation certifications | Energy Star Certified |
| Print technology | Direct thermal |
| Resolution | 300dpi |
| Max print speed | Up to 6ips |
| Max print width | 2.32in (59mm) |
| Max print length | 118.1in (3000mm) |
| Communications interfaces | LAN (10/100 BASE-TX), USB v2.0 (Full Speed) Type C, USB Host (Keyboards, Scanners, Memory), RS232C (RJ25) |
| Communications security | WEP 64/128bit, WPA/WPA2-PSK/WPA3-SAE (TKIP+AES / AES), WPA3-SAE (AES), EAP-FAST, PEAP, EAP-TLS, EAP-TTLS |
| OS compatibility | Windows® 10 & 11, Linux, Android™ and iOS® For the most up-to-date compatibility, visit our Support Page |
| Print driver compatibility | Windows®, Linux For the most up-to-date compatibility, visit our Support Page |
| SDK support | Windows® bPAC, Android™ 9 For more information on SDKs, please visit our Support Page |
| Support software | Brother P-Touch Editor Label Design/Print, Brother BRAdmin Device Management, Brother Printer Setting Tool |
| Apps | Mobile Deploy, Mobile Transfer Express, Print SDK Demo |
| Printer languages | P-touch Template 2.0, Raster, ESC/P |
| Emulations | ZPL, EPL, DPL, CPCL, SBPL(option) |
| Linear barcodes | CODE 39, ITF(I-2/5), EAN-8/13(JAN8/13), UPC-A, UPC-E, CODABAR (NW-7), CODE 128, GS1-128(UCC/EAN 128), GS1 Databar & Composite, CODE93, POSTNET, MSI, Intelligent Mail Barcode (IMb) |
| 2D barcodes | QR Code, Micro QR, Maxicode, PDF417, MicroPDF417, Data Matrix, Aztec |
| Fonts | 6 BMP & 4 Outline fonts |
| Cutter | Included, factory installed |
| Media sensors | Media out sensor |
| Media type | Roll, continuous linerless |
| Media loading | Drop-in spindle-less design, rear feed (external roll and fanfold) |
| Media roll diameter | 5.00in (127mm) |
| Media inner core diameter | 0.5in (11mm to 12.7mm), 0.75in (19mm), 1.0in (25mm to 25.4mm), 1.38in (34.9mm), 1.5in (38.1mm) |
| Media width | 0.59in to 2.48in (15mm to 63 mm) |
| Max media thickness | 2mil to 11mil (0.058mm to 0.279mm) |
| Max print height | Cutter: 0.79in to 118in (20mm to 3,000mm) |
