Get 2-inch printing fit to your work with endurance to handle everyday hazards.

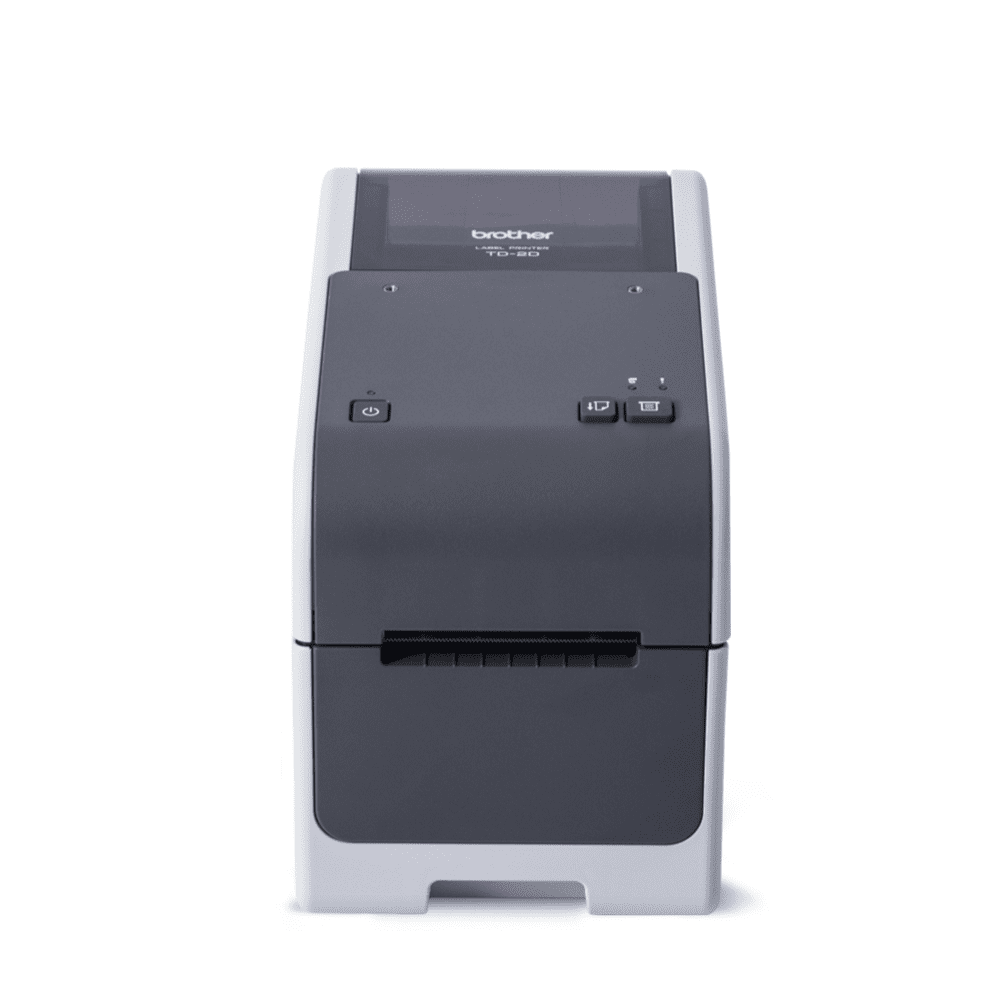

TD 2320D300
High-Resolution 2-Inch Direct Thermal Desktop Printer with USB and Network Capability
SKU: TD-2320D300
For crisp, clear labels up to 2.4 inches without breaking the bank, this desktop printer delivers. Its 300dpi resolution perfects small fonts on nutrition, ingredient, prescription, and veterinary labels. Enjoy customization with cross-PC and mobile device sharing, remote management, and an optional cutter or peeler. Tailor features to your workflow with optional battery, cutter or label peeler, all in a compact design that withstands spills, splashes, and heavy use.
Real Features
- Print labels, receipts, and tags up to 2.4 inches wide at up to 6 inches per second print speed to increase efficiency
- Stand up to the toughest shifts with splash and spill resistant keypad and durable metal components
- Choose your own labels and reduce roll change frequency with capacity up to 5 inch in diameter and drop-in spindle-less design
- Create professional labels with the included P-touch Editor label design software1 application
- 300dpi thermal print technology for top quality
- Connect easily with Ethernet, USB 2.0 and RS-232C Serial interfaces
- Get the confidence of a 2-year Premier Limited Warranty
| In the box | Printer, AC adapter, power cord, USB A to C cable, media roll holder (1in & 1.5in) installed, media disk roll holder for (0.5in & 0.75in), quick start guide, safety guide |
| Dimensions | 4.7in x 8.8in x 6.2in (119mm x 224mm x 158mm) |
| Weight | 3.31lbs (1.50kg) |
| Memory | 256MB RAM / 32MB Flash / 32MB User Area |
| Control panel | 3 LEDs with 3 buttons |
| Real time clock | Standard with battery backup |
| Operating temperature / humidity | 41° F to 104° F (5° C to 40° C), 20% to 80% non-condensing |
| Storage temperature / humidity | -4° F to 140° F ( -20° C to 60° C), 10% to 90% non-condensing |
| Warranty | 2 Years Premier Limited Warranty |
| Power | External AC Adapter (Input: 100-240V AC 50/60Hz 1.5A, Output: 24V DC 3.6A) External Device Charging: USB-C at 5V/3A |
| Battery | 14.4v, 1750 mAh, 26Wh (optional) |
| Battery yield | 13,000 labels (50mm x 30mm), in a controlled environment |
| Battery charging time | Up to 2.2hrs |
| Battery charging options | Direct in battery base or optional single slot charger |
| Energy conservation certifications | Energy Star Certified |
| Print technology | Direct thermal |
| Resolution | 300dpi |
| Max print speed | Up to 6ips |
| Max print width | 2.32in (59mm) |
| Max print length | 118.1in (3000mm) |
| Communications interfaces | LAN (10/100 BASE-TX), USB v2.0 (Full Speed) Type C, USB Host (Keyboards, Scanners, Memory), RS232C (RJ25) |
| Communications security | WEP 64/128bit, WPA/WPA2-PSK/WPA3-SAE (TKIP+AES / AES), WPA3-SAE (AES), EAP-FAST, PEAP, EAP-TLS, EAP-TTLS |
| OS compatibility | Windows® 10 & 11, Linux, Android™ and iOS® For the most up-to-date compatibility, visit our Support Page |
| Print driver compatibility | Windows®, Linux For the most up-to-date compatibility, visit our Support Page |
| SDK support | Windows® bPAC, Android™ 9 For more information on SDKs, please visit our Support Page |
| Support software | Brother P-Touch Editor Label Design/Print, Brother BRAdmin Device Management, Brother Printer Setting Tool |
| Apps | Mobile Deploy, Mobile Transfer Express, Print SDK Demo |
| Printer languages | P-touch Template 2.0, Raster, ESC/P |
| Emulations | ZPL, EPL, DPL, CPCL, SBPL(option) |
| Linear barcodes | CODE 39, ITF(I-2/5), EAN-8/13(JAN8/13), UPC-A, UPC-E, CODABAR (NW-7), CODE 128, GS1-128(UCC/EAN 128), GS1 Databar & Composite, CODE93, POSTNET, MSI, Intelligent Mail Barcode (IMb) |
| 2D barcodes | QR Code, Micro QR, Maxicode, PDF417, MicroPDF417, Data Matrix, Aztec |
| Fonts | 6 BMP & 4 Outline fonts |
| Media sensors | Top cover, transmissive (gap), full width moveable reflective (black mark), optional peeler |
| Media type | Label, receipt, tag, continuous, die cut, roll, fanfold, wristband |
| Media loading | Drop-in spindle-less design, rear feed (external roll and fanfold) |
| Media roll diameter | 5.00in (127mm) |
| Media inner core diameter | 0.5in (11mm to 12.7mm), 0.75in (19mm), 1.0in (25mm to 25.4mm), 1.38in (34.9mm), 1.5in (38.1mm) |
| Media width | 0.59in to 2.48in (15mm to 63 mm) |
| Max media thickness | 2mil to 11mil (0.058mm to 0.279mm) |
| Max print height | Continuous: 0.25in to 118in (6.4mm to 3,000mm) Peeler: 0.67in to 118in (17mm to 3,000mm) Cutter: 0.79in to 118in (20mm to 3,000mm) Tear: 0.71in to 118in (18mm to 3,000mm) |
