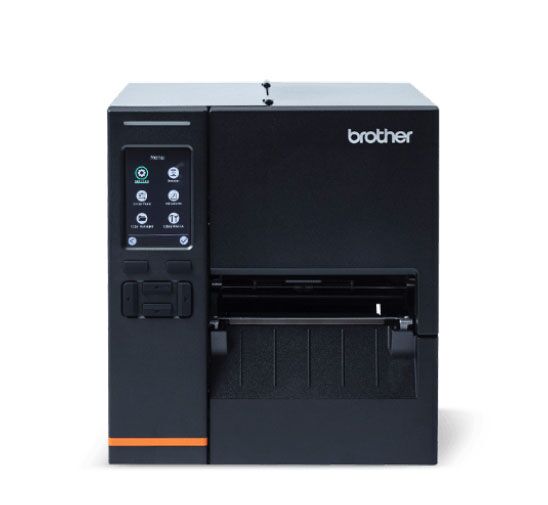

BROTHER TITAN INDUSTRIAL PRINTER 4021TN

Fast Speed, High-Volume Barcode Label Printer with Touch Panel

SKU: TJ-4021TN

As the most compact of the ultra-fast Brother Titan Industrial Printer series, the TJ-4021TN is a barcode label printer that produces 203dpi labels at up to 10 inches per second1. Printing high volumes at high speeds via a simple Ethernet/LAN connection, this printer is ideal for shipping label applications in demanding, round-the-clock operations.

Brother Titan Industrial Printer Sitting on Warehouse Shelf

Real features

  • Print barcode labels, shipping labels, and more at up to 10 inches per second1 print speed to increase efficiency
  • 203dpi thermal print technology for top quality
  • Up to 450m ribbon capacity to support higher volume printing
  • Ethernet/LAN connectivity lets you share the printer between multiple users and manage remotely
  • Navigate intuitively with a 3.5-inch, full-color HVGA touch panel display
  • Explore field upgradeable options to customize your printer, including: Wi-Fi®, label cutter, and label peeler
  • Make integration easy with WMS and ERP compatibility and a full suite of included emulations, SDKs, and drivers
  • Get the confidence of a 2-year Premier Limited Warranty

In the box Printer, power cord, USB cable, paper core, safety guide
Dimensions 9.8in x 10.8in x 17.2in (248mm x 274mm x 436mm)
Weight 20.7lbs (9.4kg)
Memory 128MB DRAM / 128MB Flash
Control panel 1 3-color status LED with 6 buttons, 3.5in HVGA color touch control panel
Real time clock Standard
Audio device Standard
Safety UL/cUL 62368-1
Operating temperature / humidity 32° F to 104° F (0° C to 40° C), 25% to 85% non-condensing
Storage temperature / humidity -40° F to 140° F (-40° C to 60° C), 10% to 90% non-condensing
Warranty 2 Year Premier Limited Warranty

Power Built-in power supply (100-240V AC 50/60Hz 2.0A)
Energy conservation certifications Energy Star 3.0
Print technology Direct thermal & thermal transfer
Resolution 203dpi
Max print speed Up to 10ips
Max print width 4.21in (107 mm)

Communications interfaces Standard: Ethernet LAN (10/100Base-TX), USB 2.0, Host USB, RS232C Serial
Optional: Wi-Fi® WLAN (5GHz 802.11a/n, 2.4GHz 802.11b/g/n Infrastructure)
Communications security WLAN: IPv4, ARP, ICMP, UDP, TCP, RAW, DHCP Client, DHCP FQDN Option, Unicast DHCP Offer
Wired LAN: ARP, MAC, BOOTP, DHCP, DNS, WINS, FTP SERVER, HTTP server, SNTP client, SMTP client, SNMP V1, Telnet, LPR/LPD, RAW 9100, IPV4, ICMP, IGMP, TCP, UDP
OS compatibility Windows®, MacOS X®, macOS®, Linux
For the most up-to-date compatibility, visit our Support Page
Print driver compatibility Windows®, Mac®, Linux
For the most up-to-date compatibility, visit our Support Page
SDK support Windows®, Android 5.0 or higher, iOS® 10.0 or higher
Support software Seagull BarTender UltraLite Design/Print Software Application Brother Printer Management Software Tool

Printer languages FBPL II, ZPL II, EPL2, DPL
Emulations FBPL II, ZPL II, EPL2, DPL
Linear barcodes Code 11 (USD-8), Code 39, Code 93, Code 128 with subsets A/B/C, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, GS1-128 (UCC/EAN-128), MSI Plessey, POSTNET, Standard 2-of-5 (IATA), Industrial 2-of-5, Interleaved 2-of-5, ITF-14, EAN-14, LOGMARS, Codabar (NW-7), Planet, Telepen, Deutsche Post Identcode, Deutsche Post Leitcode, Datalogic 2-of-5 (China Post)
2D barcodes CODABLOCK F, PDF417, Code 49, GS1 DataMatrix, MaxiCode, QR Code, TLC39, MicroPDF417, GS1 DataBar (RSS), Aztec Code
Fonts 8 BMP & 1 Scalable

Cutter Optional guillotine full cutter
Media sensors Transmissive (full width moveable gap), reflective (black mark), ribbon encoder and ribbon end, head open peeler (optional)
Media type Labels, tags, roll or fanfold, die cut, notch or continuous
Media loading Internal: 1in spindle with 3in core adapters (2 pieces)
External: rear feed (external roll and fanfold)
Media roll diameter 8.00in (203.2mm) outer diameter
Media inner core diameter Wound out 1in (25.4mm) or 3in (76.2mm) core inside diameter
Media width Width (tear, peeler): 0.79in to 4.72in (20mm to 120mm)
Width (cutter): 0.79in to 4.49in (20mm to 114mm)
Max media thickness 2.36mil to 11mil (0.06mm to 0.28mm)
Ribbon types Wax, semi (wax / resin), resin
Ribbon length 1,476ft (450m) per roll, 3.2in (81.3mm) outer diameter, wound in/out on 1in (25.4mm) core inside diameter (no notch)
984ft (300m) per roll, 2.64in (67mm) outer diameter, wound in/out on 1in (25.4mm) core inside diameter (no notch)
Ribbon width 1.57in to 4.33in (40mm to 110mm)
Ribbon take up core 4.33in (110mm) wide, 1in (25.4mm) inside diameter (no notch)
