Get 2-inch printing fit to your work with endurance to handle everyday hazards.

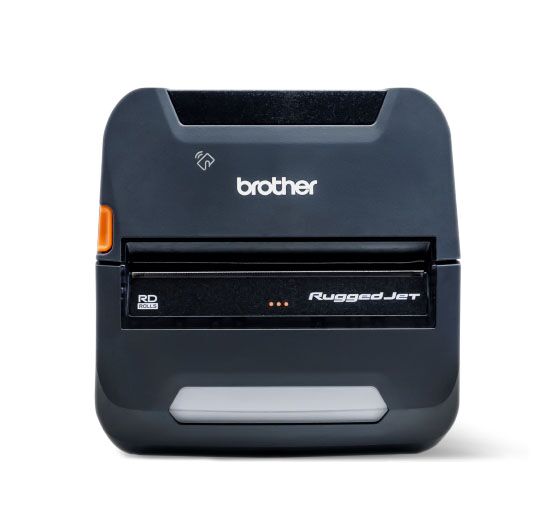

RUGGEDJET 4230BL
4-Inch Rugged Mobile Printer with Wi-Fi® and Bluetooth® Wireless Connectivity and Smart Li-ion Battery
SKU: RJ-4230B-L
The Bluetooth®-enabled RJ-4230BL mobile label and receipt printer delivers industry-leading performance, ruggedness, and mobility – plus MFi compatibility with iOS®. This ultra-durable printer comes with a rechargeable smart Li-ion battery – making it fast and easy for on-the-go workers like to print labels, receipts, invoices, bills of lading, and more both in-vehicle and out.
Real features
- Print 2-inch to 4-inch labels, receipts, tags, and more at up to 5 inches per second print speed to increase efficiency
- Stay printing amidst demanding applications or conditions with IP54 certification for dust and moisture, plus 6.88ft drop protection, reinforced parts, and molded rubber housing
- Enable even greater mobility with optional accessories, including mounts and carrying cases, shoulder straps, belt clips, extra batteries, in-vehicle DC adapter, 4-bay battery charger, and more
- Connect easily with USB Ver.2.0, Bluetooth® Ver. 4.2, MFi, and NFC pairing
- Windows®, Android™, and Apple iOS® and AirPrint® compatibility
- Print through a full day shift with the industry-leading battery life of the smart Li-ion battery, complete with battery status indicator
- Make remote updates and configuration easy with free Mobile Deploy app
| In the box | Printer, belt clip, support documents, roll holder stop, Li-ion smart battery |
| Dimensions | 6.02in x 6.26in x 2.68in (153mm x 159mm x 68mm) |
| Weight | Without battery: 1.58lbs (717g) With battery: 1.87lbs (850g) |
| Memory | 256MB DRAM / 64MB Flash |
| Control panel | 1 LED with 4 buttons |
| Drop protection | 6.9ft (2.1m), multiple drops, under controlled environment |
| Sealing certification | IP54 |
| Safety | UL, CE, CSA |
| Operating temperature / humidity | Battery: -4° F to 131° F (-20° C to 55° C) AC adapter: 14° F to 104° F (-10° C to 40° C) Car adapter: 14° F to 122° F (-10° C to 50° C) Charging: 32° F to 104° F (0° C to 40° C), 10% to 90% non-condensing, max wet bulb: 80.6° F |
| Storage temperature / humidity | -4° F to 140° F (-20° C to 60° C), 10% to 90% non-condensing, max wet bulb: 113° F (45° C) |
| Warranty | 2 Year Premier Limited Warranty |
| Power | 15V DC 4.0A |
| Battery | Rechargeable Li-Ion smart battery: 7.2V, 3000mAh |
| Battery yield | Up to 5360 (1in x 4in @ 7% black) labels per charge, under controlled environment with optional battery |
| Battery charging options | AC adapter, car adapter |
| Battery charging time | 4 hours with optional battery |
| Print technology | Direct thermal |
| Resolution | 203dpi |
| Max print speed | Up to 5ips |
| Max print width | 4.09in (104mm) |
| Max print length | 118.1in (3m) |
| Communications interfaces | USB, MFi, Bluetooth®, NFC |
| OS compatibility | Windows® For the most up-to-date compatibility, visit our Support Page |
| Print driver compatibility | Windows® and Linux For the most up-to-date compatibility, visit our Support Page |
| SDK support | Android™ 6 or later iOS® 10 or later |
| Support software | P-Touch Editor, P-Touch Transfer Express, Printer Setting Tool |
| Apps | Print Service Plugin Support Center, PJ-673 Print, Print SDK Demo, RJ-4040 Print, Mobile Deploy, Mobile Transfer Express |
| Printer languages | P-touch Template2.0, Raster, ESC/P |
| Emulations | ZPL, CPCL (CPCL page print mode / CPCL line print mode) |
| Linear barcodes | CODE 39, ITF (I-2/5) , EAN-8, EAN-13, UPC-A, UPC-E, UPC / EAN EXTENSION, CODABAR, CODE 128, GS1-128 (UCC / EAN 128), POSTNET, GS1 Databar (Omnidirectional / Truncated / Stacked / Stacked Omnidirectional / Limited / Expanded / Expanded Stacked), CODE93, MSI / Plessey, Intelligent Mail Barcode |
| 2D barcodes | QR Code (model 1, model 2, micro QR), Maxi Code, PDF417 (Standard, Truncate), MicroPDF 417, Data Matrix (Square, Rectangular), Aztec Code |
| Fonts | ESC/P, P-touch Template: 3 BMP & 4 Outline Fonts ZPL: 1 BMP & 1 Outline Font CPCL: Standard Script, OCR-A, Unison, Manhattan, MICR, Warwick |
| Cutter | Tear up & tear down bars |
| Media sensors | Transmissive, reflective, continuous receipt, gap/black mark labels and tags, continuous linerless |
| Media type | Paper and synthetic receipts, labels, and tags |
| Media loading | Drop in roll |
| Media roll diameter | 2.28in (58mm) |
| Media inner core diameter | Receipt: 0.50in (12.7mm) Label: 1.00in (25.4mm) |
| Media width | 4.49in (114mm) max |
| Max media thickness | Receipt: 2.3mil to 3.5mil (0.058mm to 0.089mm) Tag: 3.5mil to 5.3mil (0.089mm to 0.135mm) Label: 3.2mil to 6.7mil (0.081mm to 0.170mm) |
