Get 2-inch printing fit to your work with endurance to handle everyday hazards.

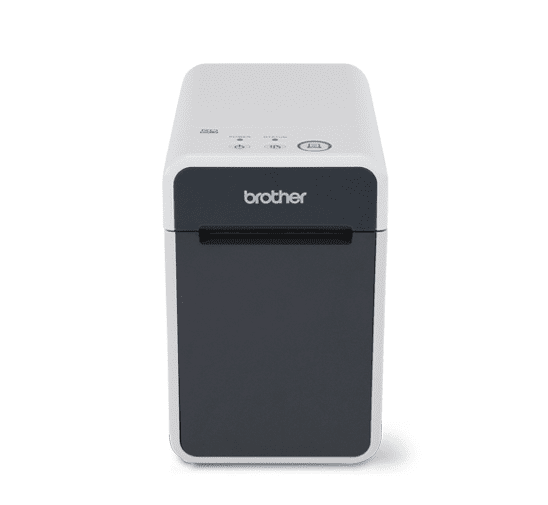

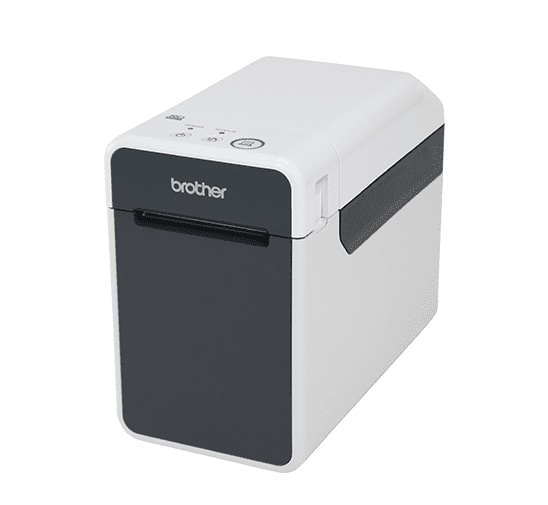

TD 2020A
Standard-Resolution 2-Inch Direct Thermal Desktop Printer with USB
SKU: TD-2020A
Save space, help improve productivity and reduce operations costs with the compact, fast and affordable TD-2020A desktop printer. Print high-quality labels, tags, and receipts up to 2.4 inches wide directly from a PC at up to 6 inches per second.
Real Features
- Print labels, receipts, and tags up to 2.4 inches wide at up to 6 inches per second print speed to increase efficiency
- 203dpi thermal print resolution for reliable quality
- Connect easily with USB 2.0 and RS-232C Serial interfaces
- Easily change media rolls with capacity up to 5 inch in diameter with drop-in spindle-less design
- Create professional labels with the included P-touch Editor label design software application1
- Get the confidence of a 2-year Premier Limited Warranty
| In the box | Printer, AC adapter, power cord, USB mini cable, CD quick start guide, safety guide |
| Dimensions | 4.33in x 6.77in x 8.4in (109.98mm x 171.96mm x 213.36mm) |
| Weight | 2.91lbs (1320g) |
| Memory | 32MB DRAM / 16MB Flash |
| Control panel | 2 LEDs with 3 buttons |
| Operating temperature / humidity | 41° F to 104° F (5° C to 40° C), 20% to 80% non-condensing |
| Storage temperature / humidity | -4° F to 140° F ( -20° C to 60° C), 20% to 80% non-condensing |
| Warranty | 2 Years Premier Limited Warranty |
| Power | External AC Adapter (Input: 100-240V AC 50/60Hz 2.1A , Output: 25V DC 6A) |
| Print technology | Direct thermal |
| Resolution | 203dpi |
| Max print speed | Up to 6ips |
| Max print width | 2.205in (56mm) max |
| Max print length | 39.37in (1,000mm) |
| Communications interfaces | USB 2.0, RS232C Serial |
| OS compatibility | Windows®, Linux For the most up-to-date compatibility, visit our Support Page |
| Print driver compatibility | Windows®, Android™ For the most up-to-date compatibility, visit our Support Page |
| SDK support | Windows® bPAC, Android™ 8 or higher |
| Support software | Brother Design/Print and Setup Software |
| Printer languages | ZPL II, CPCL |
| Emulations | Raster Graphics, Text (Template) ESC P |
| Linear barcodes | Code39, Code93, Code128, ITF, UPC-A/E, EAN8/13, GS1-128 (UCC / EAN - 128), GS1 DataBar (RSS), MSI / Plessey, Industrial 2/5, Codabar (NW-7), POSTNET |
| 2D barcodes | PDF417 / MicroPDF417, Data Matrix, Maxicode, QR Code / Micro QR Code, Aztec |
| Fonts | 6 BMP & 4 Outline fonts |
| Media sensors | Top cover, transmissive (gap), full width moveable reflective (black mark), optional peeler |
| Media type | Roll or fanfold, die cut or continuous label, continuous receipt, tag and wristband |
| Media loading | Drop-in spindle-less design, rear feed (external roll and fanfold) |
| Media roll diameter | 5.00in (127mm) |
| Media inner core diameter | 1in (25.4mm) min |
| Media width | 2.48in (63mm) max |
| Max media thickness | 11mil (0.279mm) max |
| Max print height | 39.37in (1,000mm) max |
