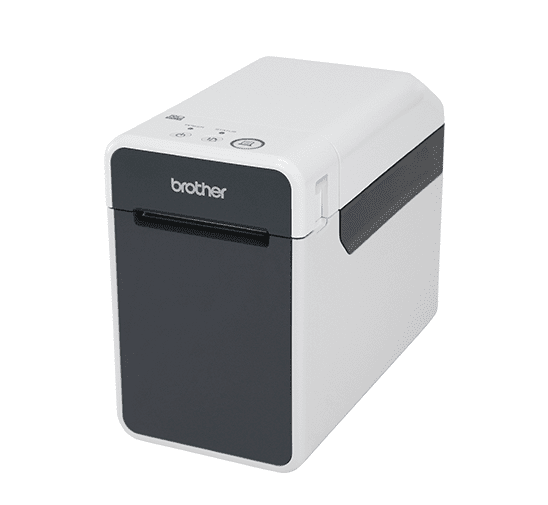

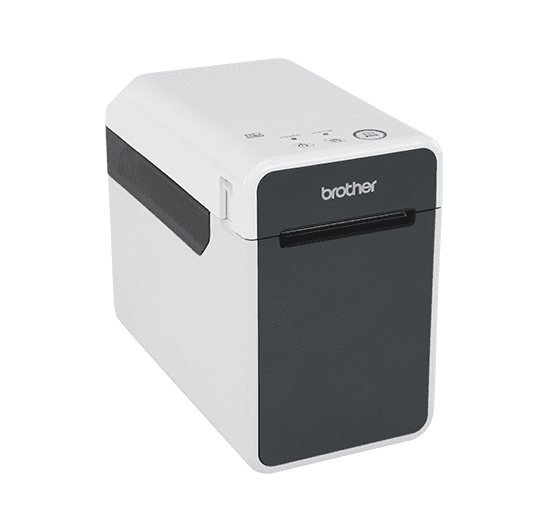

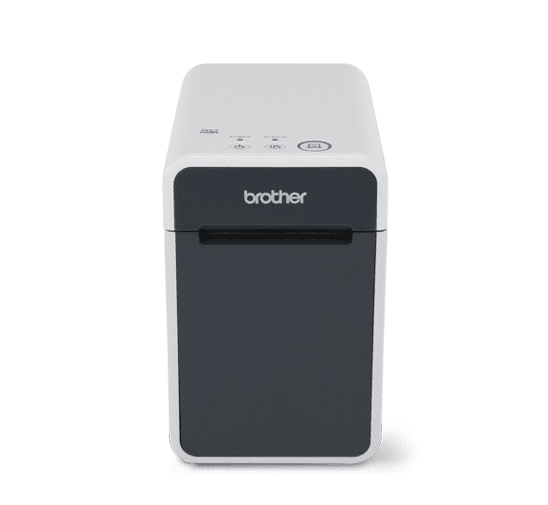

TD 2135N

High-Resolution 2-Inch Direct Thermal Desktop Printer with USB and Network Capability

SKU: TD-2135N

Featuring 300dpi print resolution, the TD-2135N desktop printer lets you print small fonts and barcodes on professional labels, tags, and receipts up to 2.4 inches with consistent clarity. Conveniently connect to and print from mobile devices and PCs using USB or network capability, and work from where you want to by adding an optional touch-panel keyboard for self-contained printing. And continue to keep things simple by adding an optional peeler that removes the label backing for you2.

Order sticker printed by TD2

Real Features

  • Print labels, receipts, and tags up to 2.4 inches wide at up to 6 inches per second print speed to increase efficiency
  • 300dpi thermal print resolution for top quality
  • Connect easily with Ethernet, USB 2.0 and RS-232C Serial interfaces
  • Increase ease of use with an optional peeler or print without using a PC by adding an optional keyboard and screen for standalone printing capabilities2
  • Windows® and Android compatibility
  • Easily change media rolls with capacity up to 5 inch in diameter with drop-in spindle-less design
  • Create professional labels with the included P-touch Editor label design software application1
  • Get the confidence of a 2-year Premier Limited Warranty

In the box Printer, AC adapter, power cord, USB mini cable, CD quick start guide, safety guide
Dimensions 4.33in x 6.77in x 8.46in ((109.98mm x 171.96mm x 214.88mm)
Weight 2.96lbs (1342.6g)
Memory 32MB DRAM / 16MB Flash
Control panel 2 LEDs with 3 buttons
Optional touch panel and LCD
Real time clock Optional, available with touch panel & LCD
Operating temperature / humidity 41° F to 104° F (5° C to 40° C), 20% to 80% non-condensing
Storage temperature / humidity -4° F to 140° F ( -20° C to 60° C), 20% to 80% non-condensing
Warranty 2 Years Premier Limited Warranty

Power External AC Adapter (Input: 100-240V AC 50/60Hz 2.1A, Output: 25V DC 6A)
Battery Optional rechargeable Li-ion battery
Battery yield 2000 labels per charge, under controlled environment
Battery charging options AC adapter, car adapter
Battery charging time 4 hours
Print technology Direct thermal
Resolution 300dpi
Max print speed Up to 6ips
Max print width 2.205in (56mm) max
Max print length 39.37in (1,000mm)

Communications interfaces Ethernet LAN (10/100 Base-TX), USB 2.0, Host USB, RS232C Serial
Optional interfaces Wi-Fi® (802.11 a/b/g/n), Bluetooth® Ver 5.2 (Classic & LE) via TD-2135NWB
OS compatibility Windows®, Linux
For the most up-to-date compatibility, visit our Support Page
Print driver compatibility Windows®, Linux, Android, iOS®
For the most up-to-date compatibility, visit our Support Page
SDK support Windows bPAC, Android 8 or higher, iOS® 11 or higher
Support software Brother Design/Print, Network Printer Management and Setup Software
Apps Support Center, Print SDK Demo, Mobile Deploy, Mobile Transfer Express

Printer languages ZPL II, CPCL
Emulations Raster Graphics, Text (Template) ESC P, AirPrint®
Linear barcodes Code39, Code93, Code128, ITF, UPC-A/E, EAN8/13, GS1-128 (UCC / EAN - 128), GS1 DataBar (RSS), MSI / Plessey, Industrial 2/5, Codabar (NW-7), POSTNET
2D barcodes PDF417 / MicroPDF417, Data Matrix, Maxicode, QR Code / Micro QR Code, Aztec
Fonts 3 BMP & 5 Outline fonts

Media sensors Top cover, transmissive (gap), full width moveable reflective (black mark), optional peeler
Media type Brother RD roll or fanfold, die cut or continuous label, continuous receipt, tag and wristband
Media loading Drop-in spindle-less design, rear feed (external roll and fanfold)
Media roll diameter 5.00in (127mm)
Media inner core diameter 1in (25.4mm) min
Media width 2.48in (63mm) max
Max media thickness 11mil (0.279mm) max
Max print height 39.37in (1,000mm) max
