Get 2-inch printing fit to your work with endurance to handle everyday hazards.

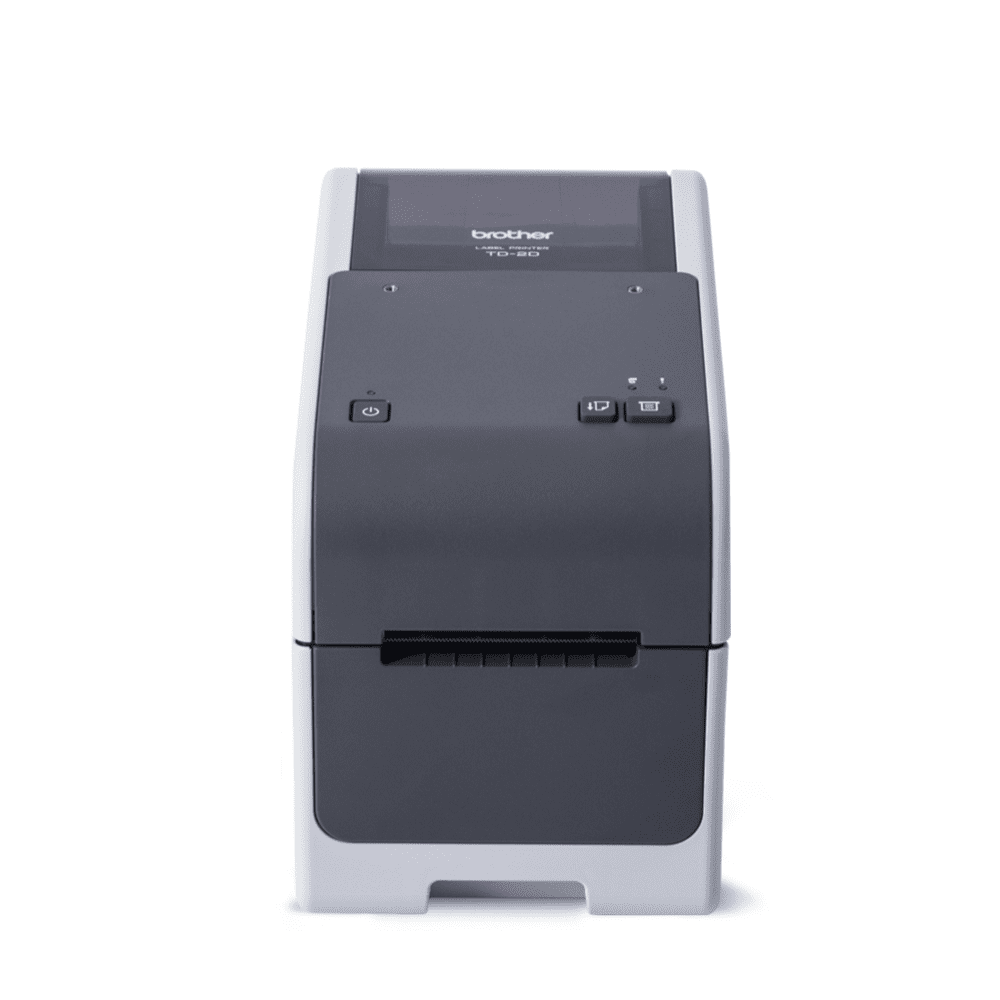

TD 2310D
Standard-Resolution 2-Inch Direct Thermal Desktop Printer with USB
SKU: TD-2310D
Streamline your operations with this compact, reliable, and affordable desktop label printer. Use the free label design software1 to swiftly create and print labels for pricing, shelves, markdowns, and more. Create accurate labels quickly by using your existing data, and enjoy the flexibility and cost-savings of using a wide variety of compatible rolls. Save time, space, and money with this versatile labeling solution.
Real Features
- Print labels, receipts, and tags up to 2.4 inches wide at up to 6 inches per second print speed to increase efficiency
- Stand up to the toughest shifts with splash and spill resistant keypad and durable metal components
- Choose your own labels and reduce roll change frequency with capacity up to 5 inch in diameter and drop-in spindle-less design
- Create professional labels with the included P-touch Editor label design software1 application
- 203dpi thermal print technology for reliable quality
- Connect easily with USB 2.0 and RS-232C Serial interface change
- Get the confidence of a 2-year Premier Limited Warranty
| In the box | Printer, AC adapter, power cord, USB A to C cable, media roll holder (1in & 1.5in) installed, media disk roll holder for (0.5in and 0.75in), quick start guide, safety guide |
| Dimensions | 4.7in x 8.8in x 6.2in (119mm x 224mm x 158mm) |
| Weight | 3.22lbs (1.46kg) |
| Memory | 256MB RAM / 32MB FLASH / 8MB User Area |
| Control panel | 3 LEDs with 3 buttons |
| Operating temperature / humidity | 41° F to 104° F (5° C to 40° C), 20% to 80% non-condensing |
| Storage temperature / humidity | -4° F to 140° F ( -20° C to 60° C), 10% to 90% non-condensing |
| Warranty | 2 Years Premier Limited Warranty |
| Power | External AC Adapter (Input: 100-240V AC 50/60Hz 1.5A, Output: 24V DC 3.6A) |
| Energy conservation certifications | Energy Star Certified |
| Print technology | Direct thermal |
| Resolution | 203dpi |
| Max print speed | Up to 6ips |
| Max print width | 2.32in (59mm) |
| Max print length | 118.1in (3000mm) |
| Communications interfaces | USB v2.0 (Full Speed) Type C, USB Host (Keyboards, Scanners, Memory), RS232C (RJ25) |
| Communications security | WEP 64/128bit, WPA/WPA2-PSK/WPA3-SAE (TKIP+AES / AES), WPA3-SAE (AES), EAP-FAST, PEAP, EAP-TLS, EAP-TTLS |
| OS compatibility | Windows® 10 & 11, Linux, Android™ and iOS® For the most up-to-date compatibility, visit our Support Page |
| Print driver compatibility | Windows®, Linux For the most up-to-date compatibility, visit our Support Page |
| SDK support | Windows® bPAC, Android™ 9 For more information on SDKs, please visit our Support Page |
| Support software | Brother P-Touch Editor Label Design/Print, Brother BRAdmin Device Management, Brother Printer Setting Tool |
| Apps | Mobile Deploy, Mobile Transfer Express, Print SDK Demo |
| Printer languages | P-touch Template 2.0, Raster, ESC/P |
| Emulations | ZPL, EPL, DPL, CPCL |
| Linear barcodes | CODE 39, ITF(I-2/5), EAN-8/13(JAN8/13), UPC-A, UPC-E, CODABAR (NW-7), CODE 128, GS1-128(UCC/EAN 128), GS1 Databar & Composite, CODE93, POSTNET, MSI, Intelligent Mail Barcode (IMb) |
| 2D barcodes | QR Code, Micro QR, Maxicode, PDF417, MicroPDF417, Data Matrix, Aztec |
| Fonts | 6 BMP & 4 Outline fonts |
| Media sensors | Top cover, transmissive (gap), full width moveable reflective (black mark), optional peeler |
| Media type | Label, receipt, tag, continuous, die cut, roll, fanfold, wristband |
| Media loading | Drop-in spindle-less design, rear feed (external roll and fanfold) |
| Media roll diameter | 5.00in (127mm) |
| Media inner core diameter | 0.5in (11mm to 12.7mm), 0.75in (19mm), 1.0in (25mm to 25.4mm), 1.38in (34.9mm), 1.5in (38.1mm) |
| Media width | 0.59in to 2.48in (15mm to 63 mm) |
| Max media thickness | 2mil to 11mil (0.058mm to 0.279mm) |
| Max print height | Continuous: 0.25in to 118in (6.4mm to 3,000mm) Peeler: 0.67in to 118in (17mm to 3,000mm) Cutter: 0.79in to 118in (20mm to 3,000mm) Tear: 0.71in to 118in (18mm to 3,000mm) |
