Get 2-inch printing fit to your work with endurance to handle everyday hazards.

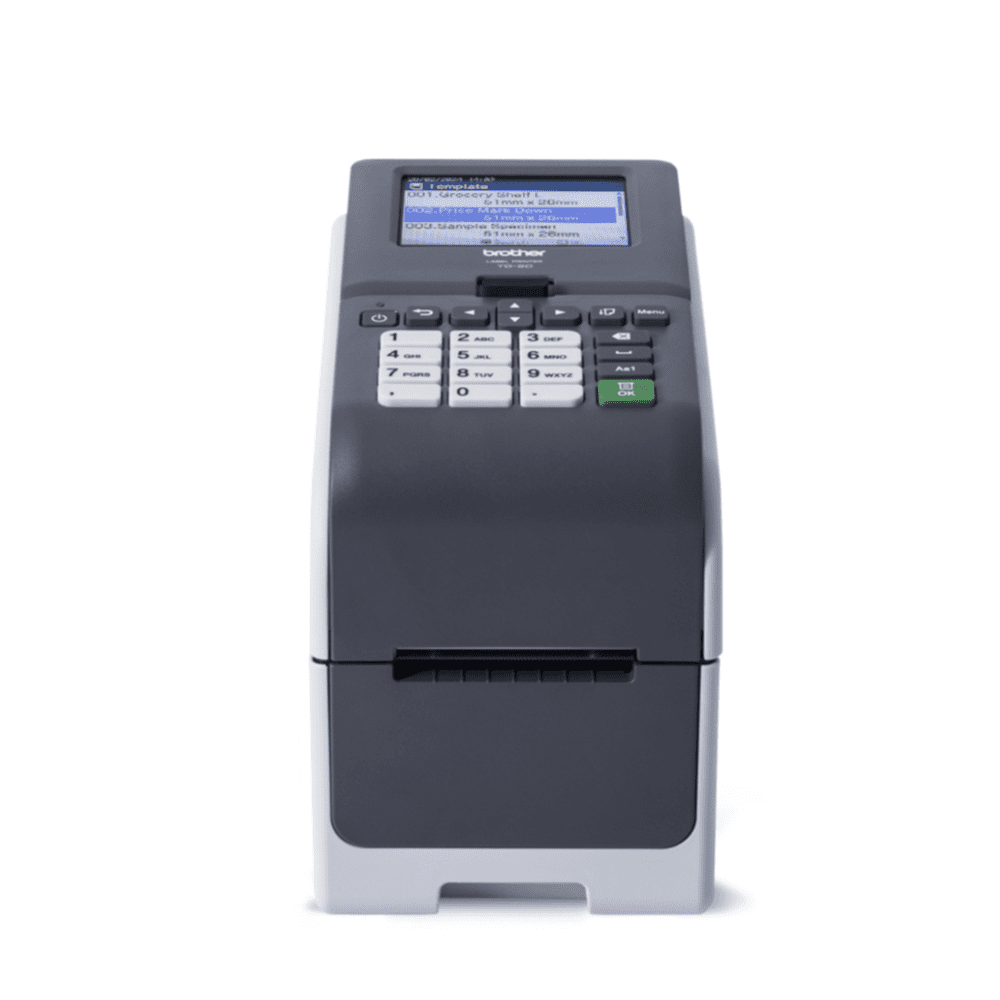

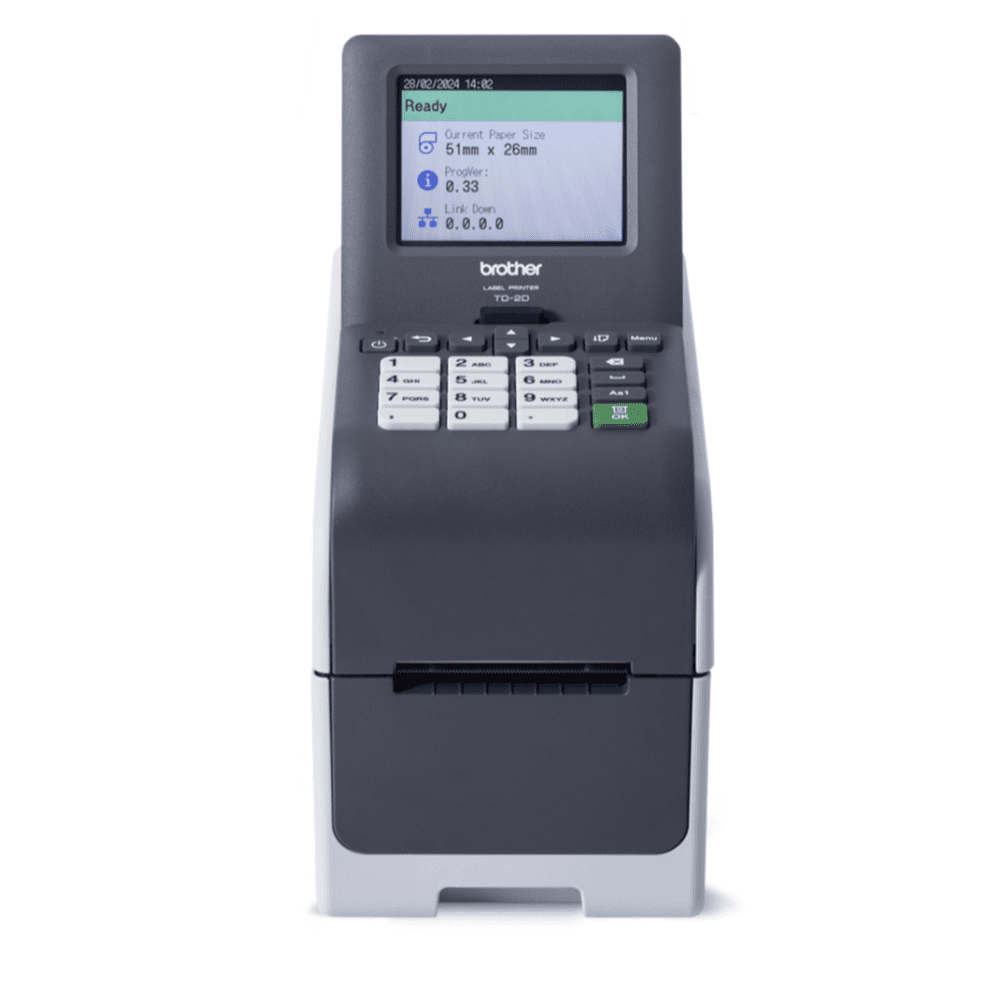

TD 2350DSA203
Standard-Resolution 2-Inch Direct Thermal Desktop Printer with Bluetooth®, Wi-Fi®, USB, and Standalone Capability
SKU: TD-2350DSA203
Experience the best of both worlds with the TD-2350DSA203: standalone functionality with advanced connectivity. Store up to 255 label designs and select to print with the keyboard and tiltable color touch LCD display for offline printing. Utilize the real-time clock to program auto-time stamp for food expiration or maintenance due. Build out further efficiency with an optional cutter or label peeler to adapt your printing operations to business needs. And with Wi-Fi® and Bluetooth® wireless connectivity, you get flexible point-of-application printing that boosts efficiency and service.
Real Features
- Print labels, receipts, and tags up to 2.4 inches wide at up to 6 inches per second print speed to increase efficiency
- Stand up to the toughest shifts with splash and spill resistant keypad and durable metal components
- Print without using a PC by with the touch panel keyboard with LCD screen for standalone printing capabilities
- Choose your own labels and reduce roll change frequency with capacity up to 5 inch in diameter and drop-in spindle-less design
- Create professional labels with the included P-touch Editor label design software1 application
- 203dpi thermal print technology for reliable quality
- Connect and print where you need to with Wi-Fi® and Bluetooth® wireless technology and compatibility with Android™, iOS® and AirPrint®
- Get the confidence of a 2-year Premier Limited Warranty
| In the box | Printer, AC adapter, power cord, USB A to C cable, media roll holder (1in & 1.5in) installed, media disk roll holder for (0.5in & 0.75in), quick start guide, safety guide |
| Dimensions | 4.7in x 8.8in x 6.2in (119mm x 224mm x 158mm) |
| Weight | 3.37lbs (1.53 kg) |
| Memory | 256MB DRAM / 64MB Flash / 32MB User Area |
| Control panel | 3.5in color touch screen & 24-key numeric keypad with 14 languages |
| Real time clock | Standard with battery backup |
| Operating temperature / humidity | 41° F to 104° F (5° C to 40° C), 20% to 80% non-condensing |
| Storage temperature / humidity | -4° F to 140° F ( -20° C to 60° C), 10% to 90% non-condensing |
| Warranty | 2 Years Premier Limited Warranty |
| Power | External AC Adapter (Input: 100-240V AC 50/60Hz 1.5A, Output: 24V DC 3.6A) External Device Charging: USB-C at 5V/3A |
| Battery | 14.4v, 1750 mAh, 26Wh (optional) |
| Battery yield | 13,000 labels (50mm x 30mm), in a controlled environment |
| Battery charging options | Direct in battery base or optional single slot charger |
| Battery charging time | Up to 2.2hrs |
| Energy conservation certifications | Energy Star Certified |
| Print technology | Direct thermal |
| Resolution | 203dpi |
| Max print speed | Up to 6ips |
| Max print width | 2.32in (59mm) |
| Max print length | 118.1in (3000mm) |
| Communications interfaces | Wi-Fi (802.11 a/b/g/n), Bluetooth v5.2 (BR/EDR: Class 1, Bluetooth Low Energy: Class1.5) MFi, LAN (10/100 BASE-TX), USB v2.0 (Full Speed) Type C, USB Host (Keyboards, Scanners, Memory), RS232C (RJ25) |
| Communications security | WEP 64/128bit, WPA/WPA2-PSK/WPA3-SAE (TKIP+AES / AES), WPA3-SAE (AES), EAP-FAST, PEAP, EAP-TLS, EAP-TTLS |
| OS compatibility | Windows® 10 & 11, Linux, Android™ and iOS® For the most up-to-date compatibility, visit our Support Page |
| Print driver compatibility | Windows®, Linux For the most up-to-date compatibility, visit our Support Page |
| SDK support | Windows® bPAC, Android™ 9 For more information on SDKs, please visit our Support Page |
| Support software | Brother P-Touch Editor Label Design/Print, Brother BRAdmin Device Management, Brother Printer Setting Tool |
| Apps | Mobile Deploy, Mobile Transfer Express, Print SDK Demo |
| Printer languages | P-touch Template 2.0, Raster, ESC/P |
| Emulations | ZPL, EPL, DPL, CPCL, SBPL(option) |
| Linear barcodes | CODE 39, ITF(I-2/5), EAN-8/13(JAN8/13), UPC-A, UPC-E, CODABAR (NW-7), CODE 128, GS1-128(UCC/EAN 128), GS1 Databar & Composite, CODE93, POSTNET, MSI, Intelligent Mail Barcode (IMb) |
| 2D barcodes | QR Code, Micro QR, Maxicode, PDF417, MicroPDF417, Data Matrix, Aztec |
| Fonts | 6 BMP & 4 Outline fonts |
| Media sensors | Top cover, transmissive (gap), full width moveable reflective (black mark), optional peeler |
| Media type | Label, receipt, tag, continuous, die cut, roll, fanfold, wristband |
| Media loading | Drop-in spindle-less design, rear feed (external roll and fanfold) |
| Media roll diameter | 5.00in (127mm) |
| Media inner core diameter | 0.5in (11mm to 12.7mm), 0.75in (19mm), 1.0in (25mm to 25.4mm), 1.38in (34.9mm), 1.5in (38.1mm) |
| Media width | 0.59in to 2.48in (15mm to 63 mm) |
| Max media thickness | 2mil to 11mil (0.058mm to 0.279mm) |
| Max print height | Continuous: 0.25in to 118in (6.4mm to 3,000mm) Peeler: 0.67in to 118in (17mm to 3,000mm) Cutter: 0.79in to 118in (20mm to 3,000mm) Tear: 0.71in to 118in (18mm to 3,000mm) |
