Get 2-inch printing fit to your work with endurance to handle everyday hazards.
TD 4520DN
High-Resolution 4-Inch Direct Thermal Desktop Printer with USB and Network Capability
SKU: TD-4520DN
Featuring high print resolution at 300dpi, the TD-4520DN desktop printer lets you print 4-inch barcodes, shipping labels, tags, and more at up to 6 inches per second. Streamline your workflow with the ability to print from multiple PCs on one network. Easy-to-use LED icons replace the LCD display on this affordable, high-resolution printer.
Real Features
- Print 4-inch barcodes, shipping labels, tags, and more with up to 6 inches per second print speed
- 300dpi direct thermal print technology delivers high quality resolution
- Connect easily with USB 2.0 and Ethernet LAN serial interfaces
- Increase productivity with optional peeler and cutter accessories
- Drop in and integrate seamlessly with industry-leading WMS systems and ZPL emulation
- Create professional labels with the included P-touch Editor label design software1
- Expect unlimited printhead replacements for your Brother desktop printers while under warranty
| In the box | Printer, AC adapter, power cord, USB cable, CD quick start guide, safety guide |
| Dimensions | 7.1in x 6.1in x 8.8in (180mm x 155mm x 224mm) |
| Weight | 4.4lbs (1996g) |
| Memory | 64 DRAM / 256MB Flash |
| Control panel | 3 LEDs with 3 buttons |
| Operating temperature / humidity | 41° F to 104° F (5° C to 40° C), 25% to 85% non-condensing |
| Storage temperature / humidity | -4° F to 140° F (-20° C to 60° C), 10% to 90% non-condensing |
| Warranty | 2 Year Premier Limited Warranty |
| Power | External AC Adapter (Input: 100-240V AC 50/60Hz 2.0A, Output: 24V DC 5A) |
| Energy conservation certifications | Energy Star |
| Print technology | Direct thermal |
| Resolution | 300dpi |
| Max print speed | Up to 6ips |
| Max print width | 4.27in (108.4mm) max |
| Max print length | 118.11in (3,000mm) |
| Communications interfaces | USB 2.0, RS232C Serial |
| OS compatibility | Windows®, Linux For the most up-to-date compatibility, visit our Support Page |
| OS printing | Windows®, Mobile Android™, Linux |
| Print driver compatibility | Windows®, Linux For the most up-to-date compatibility, visit our Support Page |
| SDK support | Windows® bPAC, Android™ 6 or higher |
| Support software | Brother Design/Print, Network Printer Management and Setup Software |
| Apps | Support Center, Print SDK Demo |
| Printer languages | P-touch Template2.0, Raster, ESC/P |
| Emulations | ZPL, EPL, DPL, CPCL, SBPL(option) |
| Linear barcodes | Code39, Code93, Code128, ITF, UPC-A/E, EAN8/13, GS1-128 (UCC/EAN-128), GS1 DataBar (RSS), MSI / Plessey, Codabar (NW-7), POSTNET |
| 2D barcodes | PDF417 / MicroPDF417, Data Matrix, Maxicode, QR Code / Micro QR Code, Aztec |
| Fonts | 6 BMP & 5 Outline fonts |
| Cutter | Optional |
| Media sensors | Top cover, transmissive (gap), full width moveable reflective (black mark), optional peeler |
| Media type | Roll or fanfold, die cut or continuous label, receipt, tag and wristband |
| Media loading | Drop-in spindle-less design rear feed (external roll and fanfold) |
| Media roll diameter | 5.00in (127mm) |
| Media inner core diameter | All core sizes down to 0.5in (12.7mm) |
| Media width | 4.65in (118mm) |
| Max media thickness | 11mil (0.279mm) |
Related supplies
RD008U1S
4in x 6in white premium direct thermal paper label, die-cut roll
RDS05U1
2in x 1in premium direct thermal labels, die-cut roll
RDS04U1
3in x 1in premium direct thermal labels, die-cut roll
RDS03U1
4in x 2in white premium direct thermal labels, die-cut roll
RDS02U1
4in x 6in white premium direct thermal label, die-cut roll
RDS01U2
4in wide white premium direct thermal paper label, continuous roll
RD017U7U
2.25in x 3.25in white with black mark premium direct thermal paper tag
RD016U1U
2in x 4in white supreme direct thermal high-speed labels, die-cut roll
RD012U5S
4in wide premium direct thermal receipt paper, continuous roll
RD011U1S
4in x 6in white polypropylene direct thermal label, die-cut roll
RD010U1S
4in x 4in white polypropylene direct thermal label, die-cut roll
RD009U1U
2in x 1in white supreme direct thermal high-speed labels on continuous rollRelated accessories
PA-HU3-001
300dpi replacement printhead kit for TD-4520DN & TD-4550DNWB
PA-LP-002
Label peeler kit for TD 4 printers
PA-PR3-001
300dpi platen roller replacement kit for TD-4520DN & TD-4550DNWB
PA-CU-001
Auto-cutter kit for TD 4 printers
LBX102001
Power adapter kit for TD 4 direct thermal series
Software & Drivers
Download and install the latest drivers and software for your Brother products.
Manuals & Guides
Download the latest manuals and user guides for your Brother products.
Support & FAQs
Find the answers to our most frequently asked questions and troubleshooting here.
Quick Links
DemoRelated products

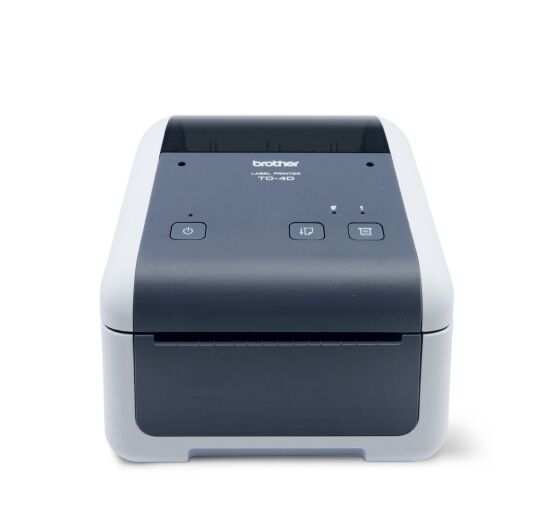

TD 4210D
