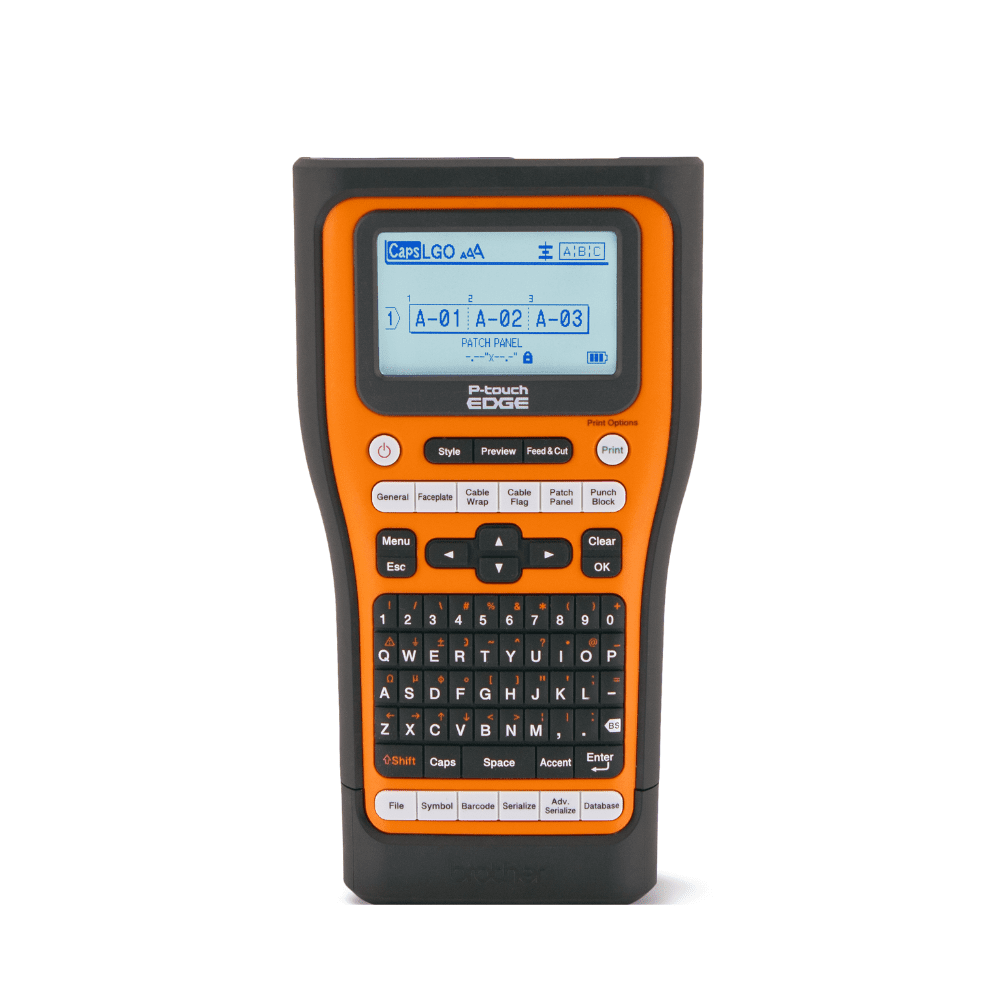

Handheld Industrial Label Printer for Radio-free Jobsites with Dual Auto-Cutter and USB-C® (up to 24mm labels)


Built for the demands of radio-restricted jobsites, the P-Touch EDGE 510 simplifies labeling tasks without compromising security. Measure your spacing with the included ruler, then format and print tough laminated labels or heat shrink tubes up to 24mm in a few simple steps with quick application keys. Local printer storage supports security restrictions and ensures that templates and databases are always at your fingertips to edit or create labels right on site. Connect to your PC via USB-C to design custom labels with P-Touch Editor software. Print, peel and apply a strip of labels with ease thanks to the dual auto-cutter with half cut. And with advanced serialization, a hand strap to help prevent drops and long battery life, the PT-E510 has convenience and compliance covered.

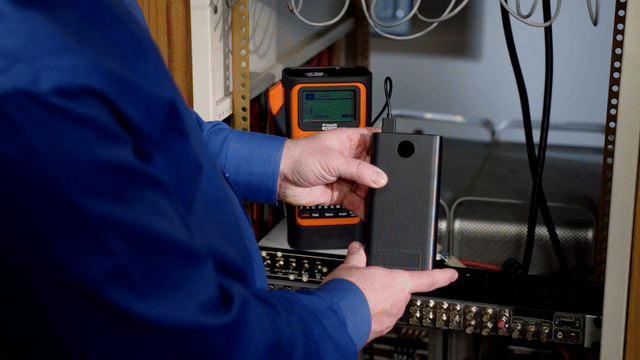

Professional electrical installer using the Brother P-touch EDGE 560BTVP industrial label printer while standing next to indoor electrical equipment.

Real Features

  • Label large industrial projects with laminated labels & heat shrink tubes from 3.5mm to 24mm
  • Create labels faster with quick application keys for cable wrap, cable flag, patch panel, punch block, and faceplate labels, plus add QR codes & linear barcodes
  • Print a strip of half-cut labels with the dual auto-cutter to make peel-and-apply easy
  • Store your databases and templates to print quickly from existing work
  • Charge the printer and connect to your PC with USB-C to design and print from P-touch Editor label design software
  • Ambidextrous hand strap and utility ring provides added drop-protection and convenience
  • Kit includes hard carrying case, patch panel ruler, hand strap, long-lasting rechargeable li-ion battery, USB-C cable

In the box Handheld label printer, Li-ion battery pack, 24mm flexible ID tape (8m), USB-C cable (3ft), computer software (download), hand strap, deluxe carrying case, quick start guide, patch panel ruler card, personal safety guide
Dimensions 5.2in x 9.6in x 3.15in (132mm x 244mm x 80mm)
Weight Without tape and battery: 2.43lbs. (1.1kg)
Memory Standalone: Up to 99 label designs (1,800 characters / file)
Download: Up to 99 templates, databases & images (6MB)
Control panel 70 rubber keys (QWERTY)
17 characters x 2 rows LCD and backlight
Operating temperature / humidity 50° F to 95° F (10° C to 35° C), 20% to 80% non-condensing
Storage temperature / humidity -4° F to 140° F (-20° C to 60° C), 20% to 80% non-condensing
Warranty 2 Year Limited Exchange Warranty

Power Optional USB-C PD AC adapter (5VDC, 3A / 9VDC, 3A / 12VDC, 2.5A / 15VDC, 2A, 20VDC, 1.5A)
Battery Rechargeable Li-ion battery
Battery yield 5 tapes on one charge
Battery charging options USB-C PD AC adapter or any USB-C power source
Battery charging time 3 hours
Energy conservation certifications ENERGY STAR®
Print technology Laminating thermal transfer
Resolution 180dpi
Max print speed Up to 1.2ips via AC adapter, up to 0.78ips via battery
Max print width 0.71in (18mm)
Max print length 39.37in (1m)

Communications interfaces USB-C 3.0 (Windows®) / 2.0 (Mac®)
OS compatibility Windows®, MacOS®
For the most up-to-date compatibility, visit our Support Page
Print driver compatibility Windows®, Mac®
For the most up-to-date compatibility, visit our Support Page
SDK support Windows®
Support software Windows® Printer Driver, P-touch Editor v6.x for Windows®, P-touch Editor v5.x for Windows® (with Cable Labeling Wizard), Transfer Manager v2.x for Windows®, Printer Setting Tool for Windows®, Transfer Express for Windows®, Update Software for Windows®, Driver Deployment Wizard for Windows®, Firmware Update Tool for Windows® & Mac®
Mobile Apps Pro Label Tool for Android™ & iOS®, iLink&Label for Android™ & iOS®, iPrint&Label for Android™ & iOS®, Mobile Transfer Express for Android™ & iOS®, Print SDK Demo for Android™

Printer languages Raster, ESC P, P-touch Template (download)
Linear barcodes Code39, Code128, I-2/5 (ITF), UPC-A/E, EAN-8/13, GS1-128 (UCC/EAN-128), Codabar (NW-7)
2D barcodes QR Code, Data Matrix
Fonts Helsinki, Brussels, US, Los Angeles, San Diego, Florida, Calgary, Belgium, Atlanta, Adams, Brunei, Sofia, Germany, Letter Gothic
Function keys General, faceplate, cable wrap, cable flag, patch panel / terminal strip, punch block, barcode, serialize, advanced serialization, database, heat shrink tube (auto activation), self-laminate tape (auto activation)
Keyboard QWERTY, mini size rubber (70 keys)
Print capabilities Up to 25 alpha-numeric characters, up to 99 alpha-numeric character increments (individual or simultaneous), auto formats (faceplate, cable wrap, cable flag, patch panel / terminal strip, punch block, heat shrink tube, self-laminating), 476 symbols, text insert, multi-block up to 99, 20 languages, up to 99 downloadable templates / databases / graphic images (6MB)
Print layout Real Print preview, up to 7 lines per label, 10 type styles, 9 type sizes, 5 type widths, invert & vertical printing, repeat printing up to 99 copies

Cutter Automatic dual blade cutter (full and easy to peel multi-label strip cutter)
Media sensors Smart Identification
Media type HGe, TZe, HSe, STe
Media loading Cartridge
Media sizes 24mm, 18mm, 12mm, 9mm, 6mm, 3.5mm
Media width 24mm (0.94in) max
Max print height 0.71in (18mm)
