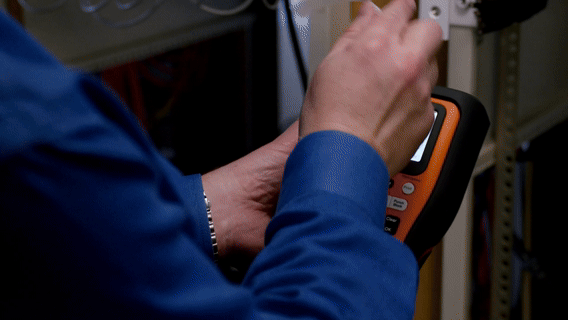

side of P-touch EDGE 560btvp or P-touch EDGE 510bt industrial label printer with a hand using the hand strap to hold the printer.
Bother patch panel ruler used for port measurements and faceplates.

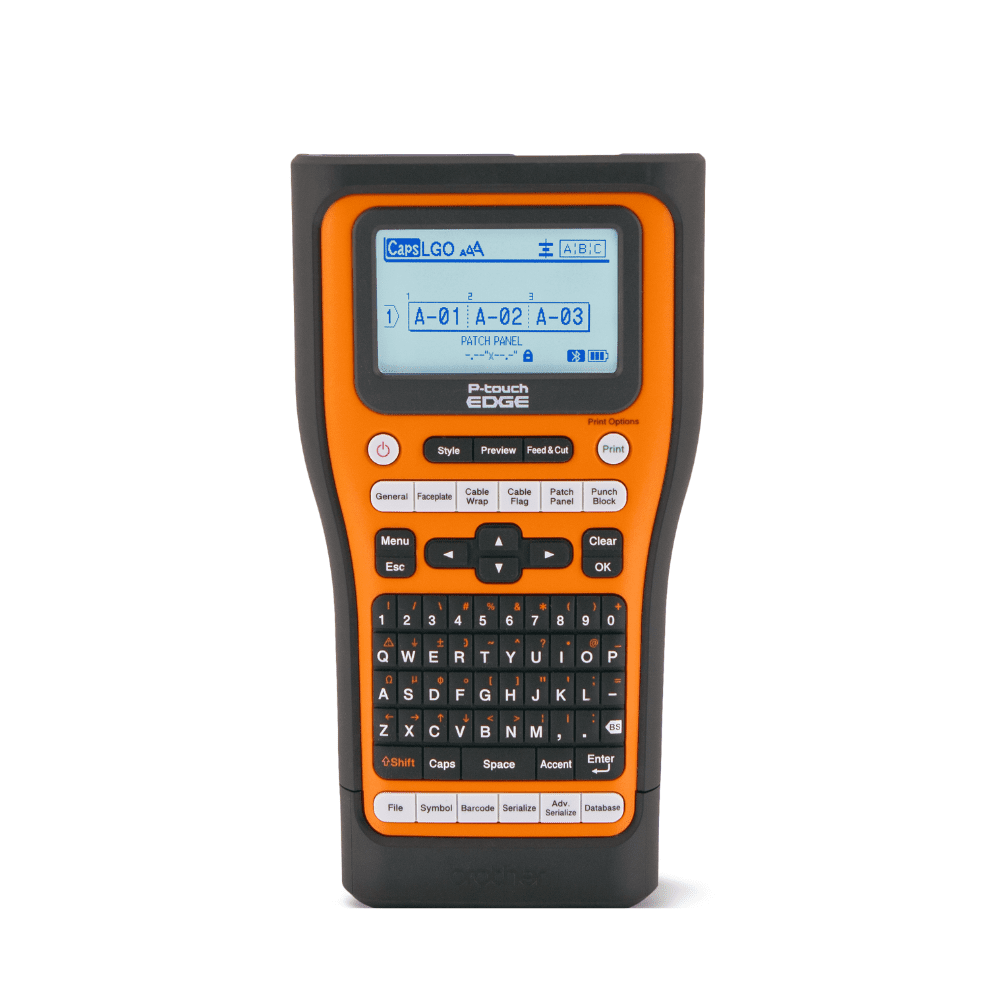

P-TOUCH EDGE 560BTVP

Handheld Industrial Label Printer with Wireless Bluetooth® Technology and Dual Auto-Cutter (up to 24mm labels)

SKU: PT-E560BTVP

Designed to support contractors in large project applications, the P-Touch EDGE 560BT is loaded with features to streamline labeling for techs. Format laminated labels and heat shrink tubes up to 24mm for your applications in fewer steps using the included ruler and quick application keys. Store your databases and templates, intuitively serialize and create QR codes and linear barcodes straight on the printer itself to cut out wasted time from repetitive tasks.

Rather work on your phone or computer? Get the job done from your mobile device thanks to Bluetooth wireless connectivity and the Pro Label tool app. Or, connect and charge from your PC with a common USB-C® cable and print from the P-Touch Editor software. Then, watch the auto-cutter print a strip of labels with half-cuts to make peeling and applying labels a cinch. Add in a secure hand strap to help prevent drops and a long-lasting battery and the PT-E560BT is the go-to tool for crushing tasks with the precision and efficiency of a seasoned pro.

Contact sales team Browse P-touch tapes

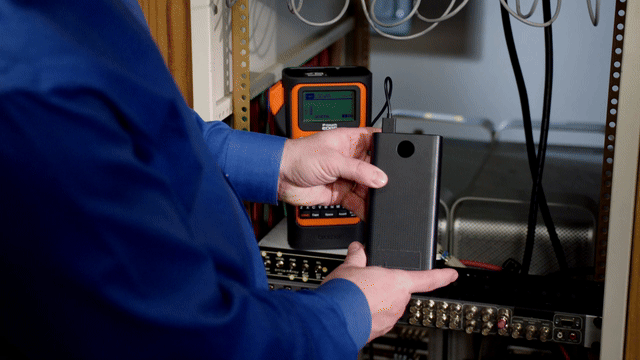

Professional electrical installer using the Brother P-touch EDGE 560BTVP industrial label printer while standing next to indoor electrical equipment.

Real Features

  • Label large industrial projects with laminated labels & heat shrink tubes from 3.5mm to 24mm
  • Create labels faster with quick application keys for cable wrap, cable flag, patch panel, punch block and faceplate labels plus add QR codes & linear barcodes
  • Print a strip of half-cut labels with the dual auto-cutter to make peel-and-apply easy
  • Store your databases and templates to print quickly from existing work
  • Design labels from your mobile device on the Pro Label Tool app and print labels wirelessly with convenient Bluetooth connectivity
  • Charge the printer and connect to your PC with USB-C to design and print from P-touch Editor label design software
  • Ambidextrous hand strap and utility ring provides added drop-protection and convenience
  • Kit includes hard carrying case, patch panel ruler, hand strap, long-lasting rechargeable li-ion battery, USB-C cable

In the box Handheld label printer, Li-ion battery pack, 24mm flexible ID tape (8m), USB-C cable (3ft), computer software (download), mobile apps (download), hand strap, deluxe carrying case, quick start guide, patch panel ruler card, personal safety guide
Dimensions 5.2in x 9.6in x 3.15in (132mm x 244mm x 80mm)
Weight Without tape and battery: 2.43lbs. (1.1kg)
Memory Standalone: Up to 99 label designs (1,800 characters / file)
Download: Up to 99 templates, databases & images (6MB)
Control panel 70 rubber keys (QWERTY)
17 characters x 2 rows LCD and backlight
Operating temperature / humidity 50° F to 95° F (10° C to 35° C), 20% to 80% non-condensing
Storage temperature / humidity -4° F to 140° F (-20° C to 60° C), 20% to 80% non-condensing
Warranty 2 Year Limited Exchange Warranty

Power Optional USB-C PD AC adapter (5VDC, 3A / 9VDC, 3A / 12VDC, 2.5A / 15VDC, 2A, 20VDC, 1.5A)
Battery Rechargeable Li-ion battery
Battery yield 5 tapes on one charge
Battery charging options USB-C PD AC adapter or any USB-C power source
Battery charging time 3 hours
Energy conservation certifications ENERGY STAR®
Print technology Laminating thermal transfer
Resolution 180dpi
Max print speed Up to 1.2ips via AC adapter, up to 0.78ips via battery
Max print width 0.71in (18mm)
Max print length 39.37in (1m)

Communications interfaces USB-C 3.0 (Windows®) / 2.0 (Mac®), Bluetooth® 5.0 (SPP) MFi (iAP)
OS compatibility Windows®, MacOS®
For the most up-to-date compatibility, visit our Support Page
Print driver compatibility Windows®, Mac®
For the most up-to-date compatibility, visit our Support Page
SDK support Android™, iOS®
Support software Windows® Printer Driver, P-touch Editor v6.x for Windows®, P-touch Editor v5.x for Windows® (with Cable Labeling Wizard), Transfer Manager v2.x for Windows®, Printer Setting Tool for Windows®, Transfer Express for Windows®, Update Software for Windows®, Driver Deployment Wizard for Windows®, Firmware Update Tool for Windows® & Mac®
Apps Pro Label Tool for Android™ & iOS®, iLink&Label for Android™ & iOS®, iPrint&Label for Android™ & iOS®, Mobile Transfer Express for Android™ & iOS®, Print SDK Demo for Android™

Printer languages Raster, ESC P, P-touch Template (download), Mobile SDK
Linear barcodes Code39, Code128, I-2/5 (ITF), UPC-A/E, EAN-8/13, GS1-128 (UCC/EAN-128), Codabar (NW-7)
2D barcodes QR Code, Data Matrix
Fonts Helsinki, Brussels, US, Los Angeles, San Diego, Florida, Calgary, Belgium, Atlanta, Adams, Brunei, Sofia, Germany, Letter Gothic
Function keys General, faceplate, cable wrap, cable flag, patch panel / terminal strip, punch block, barcode, serialize, advanced serialization, database, heat shrink tube (auto activation), self-laminate tape (auto activation)
Keyboard QWERTY, mini size rubber (70 keys)
Print capabilities Up to 25 alpha-numeric characters, up to 99 alpha-numeric character increments (individual or simultaneous), auto formats (faceplate, cable wrap, cable flag, patch panel / terminal strip, punch block, heat shrink tube, self-laminating), 476 symbols, text insert, multi-block up to 99, 20 languages, up to 99 downloadable templates / databases / graphic images (6MB)
Print layout Real Print preview, up to 7 lines per label, 10 type styles, 9 type sizes, 5 type widths, invert & vertical printing, repeat printing up to 99 copies

Cutter Automatic dual blade cutter (full and easy to peel multi-label strip cutter)
Media sensors Smart Identification
Media type HGe, TZe, HSe, STe
Media loading Cartridge
Media sizes 24mm, 18mm, 12mm, 9mm, 6mm, 3.5mm
Media width 24mm (0.94in) max
Max print height 0.71in (18mm)
