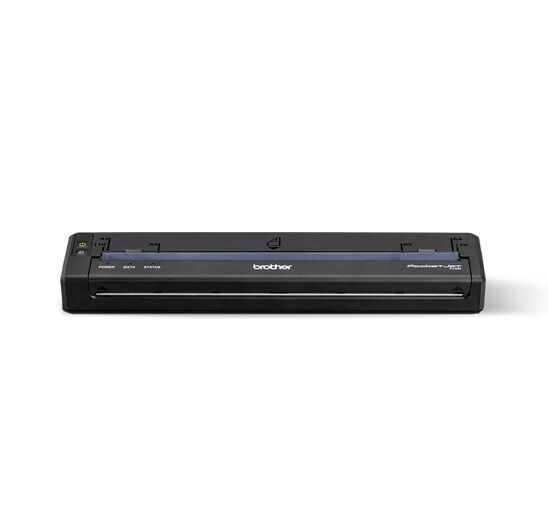

Brother PocketJet 863 - Front Facing
Brother PocketJet 863 - Front Facing
Brother PocketJet 863 - Front Facing
Brother PocketJet 863 - Front Facing
Brother PocketJet 863 - Right Facing
Brother PocketJet 863 - Left Facing
Mobile worker with PocketJet 8
PocketJet 8 in Police Car
Field service worker with PocketJet 8

POCKETJET 863

High-Resolution Full-Page Mobile Printer with Bluetooth® Wireless Technology and USB-C®

SKU: PJ-863

Get connected with ease via MFi Bluetooth® protocol or USB Type-C® to start printing fast from a variety of mobile devices and PCs. The PocketJet 863 lets you produce full-page documents on the move and on demand with the quality and clarity of 300dpi print resolution – helping your small fonts, graphics, and images print clearly and quickly every time, no matter where you’re printing from.

Battery not included.

Try one for free Contact sales team
Field worker printing invoice with PocketJet 8

Real Features

  • Print 8.5 inches x 11 inches at up to 13.5 pages per minute print speed to increase efficiency
  • Enable even greater mobility with optional mounts and carrying options
  • Communicate and charge power easily with a single USB Type-C® cable
  • Connect easily to print from a mobile device with MFi Bluetooth® wireless technology
  • Windows®, MacOS®, and Linux (via USB) OS compatibility
  • Android™ SDK and Print Service Plug-in
  • High-resolution 300dpi thermal print technology for top quality
  • Optional rechargeable Li-ion battery capable of printing up to 600 pages from a single charge
  • 2-Year Limited Premier Warranty and responsive lifetime2 customer support

In the box Printer
Dimensions 10.04in x 2.17in x 1.18in (255mm x 55mm x 30mm)
Weight Without battery: 0.95lbs (430g)
With battery: 1.34lbs (610g)
Memory 256MB DRAM, 64MB flash (30MB available)
Control panel 4 LEDs with 3 buttons
Sealing certification IP54 with case
Safety UL, CSA
Operating temperature / humidity Printing with battery/car adapter: 14° F to 122° F (-10° C to 50° C)
Printing with AC adapter: 14° F to 104° F (-10° C to 40° C)
Charging: 32° F to 104° F (0° C to 40° C)
20% to 80% non-condensing
Storage temperature / humidity -4° F to 140° F (-20° C to 60° C), 20% to 80% non-condensing
Warranty 2 Year Premier Limited Warranty

Power Input: 15V DC 4.0A
Battery Rechargeable Li-ion battery, replaceable, 10.8V
Battery yield1 600 pages per charge
Battery charging options AC adapter, DC car adapter, USB-C
Battery charging time With AC adapter: 2hrs
With car adapter: 2hrs
With USB-C: 2hrs
Energy conservation certification Energy Star certified
Print technology Direct thermal
Resolution 300dpi
Max print speed Up to 3ips
Max print width 8in (203.2mm) max

Communications interfaces USB-C Ver 2.0, Bluetooth® Ver 5.2, MFi, NFC
OS compatibility Windows®, Mac®, Linux, Mobile Android™, Mobile iOS®

For the most up-to-date compatibility, visit our Support Page
OS Printing Windows Mobile®, Android™, iOS®, Apple Airprint®, Google Cloud Print™, Mopria™
Print driver compatibility Windows®, Mac®, Linux

For the most up-to-date compatibility, visit our Support Page
SDK support Android 8™ or later iOS® 11 or later
Support software Software / Document Installer, P-Touch Editor, P-Touch Transfer, Printer Setting Tool, P-touch Transfer Express, Driver Deployment Wizard, Firmware Update Tool, Firmware for Network Connection, BRAdmin Light / Agent / Professional
Apps Print Service Plugin, Support Center, iPrint&Scan, PJ-673 Print, Print SDK Demo, RJ-4040 Print, Mobile Transfer Express, Mobile Deploy

Printer languages ESC/P_P, ESC/P_B
Emulations Raster_P, P-touch Template, ZPL II
Linear barcodes CODE39, ITF (I-2/5), EAN-8( JAN8), EAN-13 (JAN13), UPC-A, UPC-E, CODABAR (NW-7), CODE128, GS1-128 (UCC/EAN-128), POSTNET, GS1 DataBar (RSS), UPC/EAN EXTENSION, MSI, Intelligent Mail Barcode, Industrial 2-of-5, Standard 2-of-5

Downloadable barcodes available
2D barcodes QR Code, PDF417, MaxiCode, Aztec, Micro QR Code, MicroPDF417, DataMatrix, GS1 Databar Composite

Downloadable barcodes available
Fonts Bitmap font: Gothic, Letter Gothic Bold, Helsinki, Brussel, San Diego, Broughham, ZPL II "A", "B", "C", "D", "E", "F", "G", "H"
Outline font: Gothic, Letter Gothic, Helsinki, Brussel, ZPL II "0"

Downloadable fonts available with font manager

Cutter Tear up edge
Media sensors Reflective (black bar), out of paper
Media type Paper and synthetic: cut sheet, continuous roll, perforated roll, fan-fold
Labels: Cut sheet, fan-fold
Media loading Auto grip
Media sizes Letter, legal, A4, A5 continuous, custom sizes and pre-printed media are available upon request
Media width 8.5in max
Media thickness 0.006in (0.16mm) or less
Download the datasheetTéléchargez la brochure
