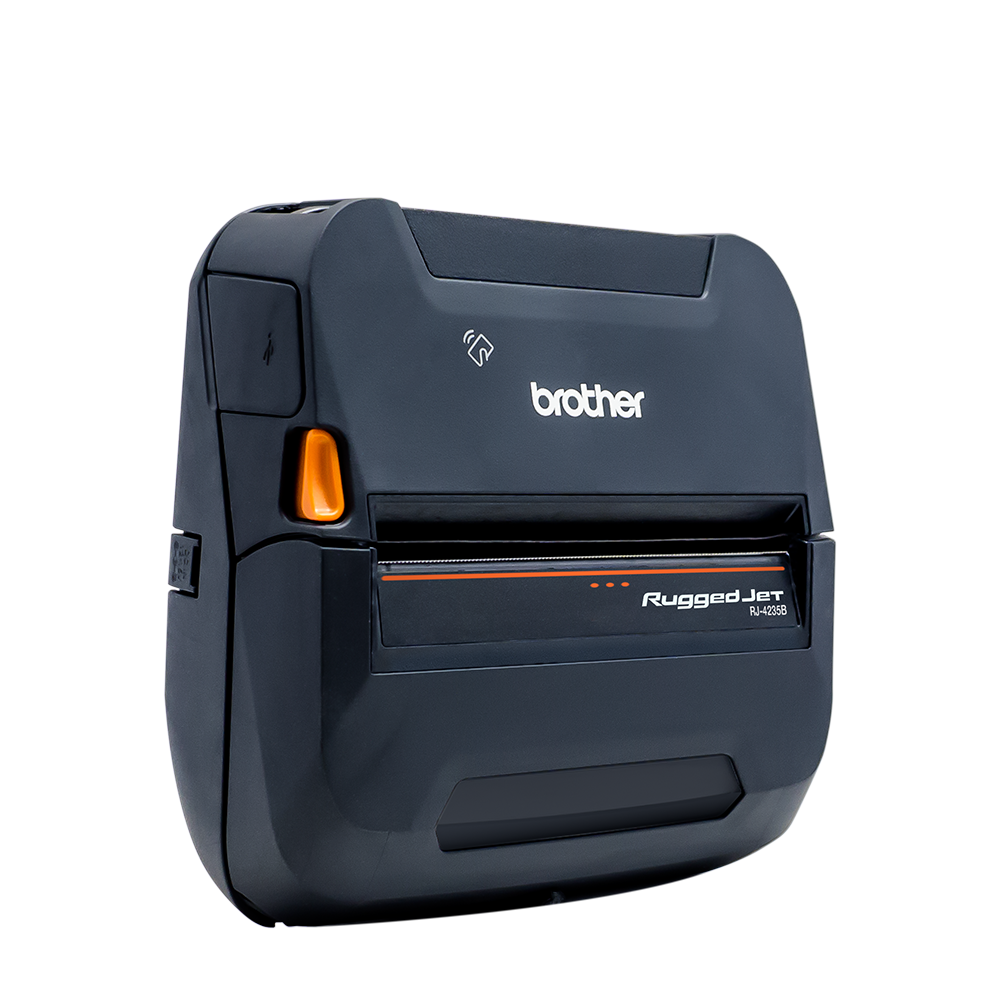

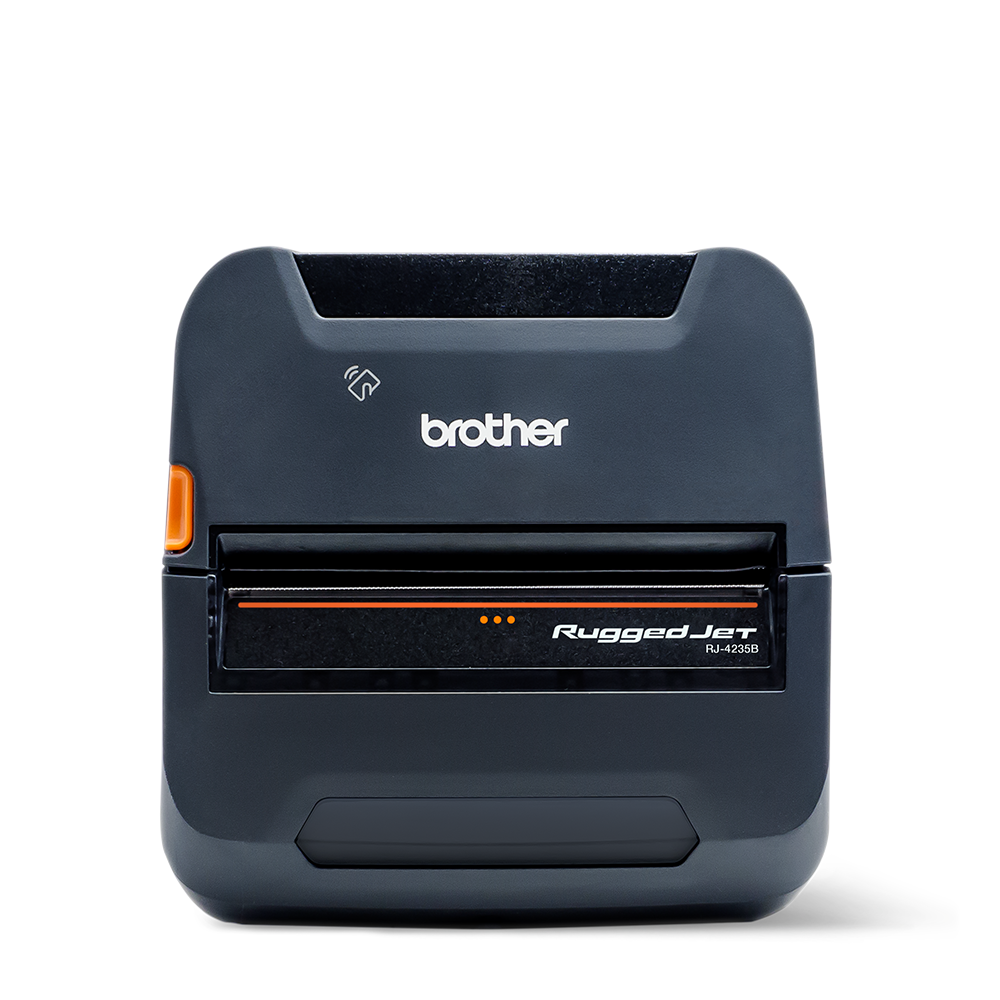

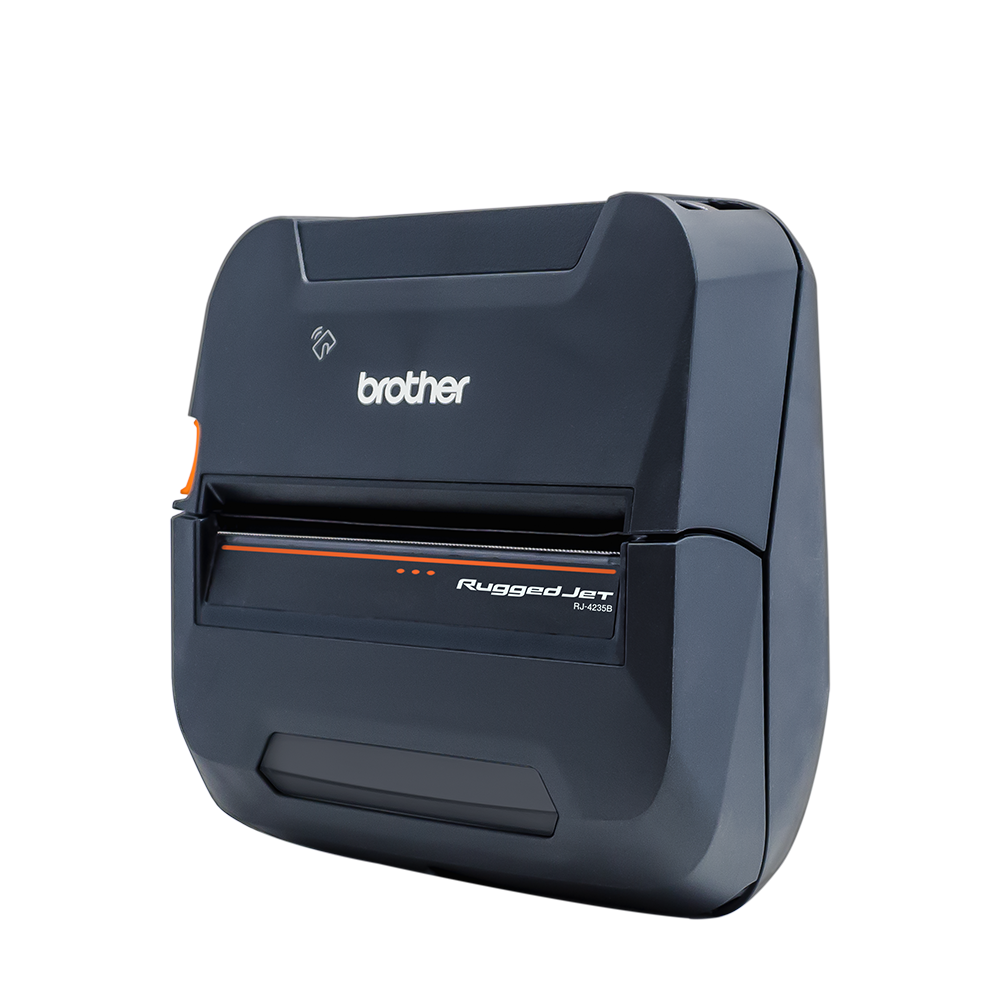

RUGGEDJET 4235B

4-Inch Rugged Mobile Printer with Bluetooth® Wireless Technology

SKU: RJ-4235B

The RJ-4235B mobile label and receipt printer delivers the speed, durability, and connectivity needed to print labels, invoices, receipts, and more on the road. This refreshed model features Bluetooth® Dual Mode (Classic + LE) for faster data transfer and long-range printing, plus USB Type-C® connectivity for modern charging and improved data speeds. Because this model does not include a battery, it is ideal for mounted use in public sector and field service vehicles using the optional battery eliminator — printing on the go without the need for a network connection.

Try one for free Contact sales team

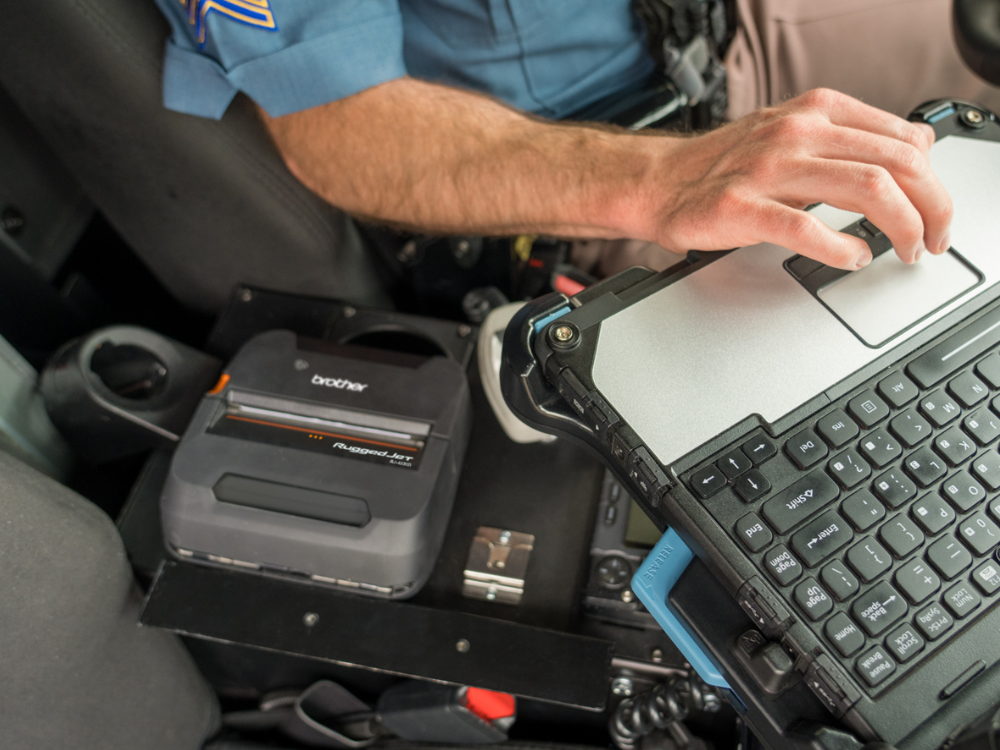

A police officer prints a ticket in a patrol car using a mobile computer and printer.

Real features

  • Print 2-inch to 4-inch linerless labels at up to 5 inches per second1 print speed to increase efficiency
  • MAC and Bluetooth® address included on printer hardware and outer box for easier pairing and deployment during setup
  • Stay printing amidst demanding applications or conditions with IP54 certification for dust and moisture, plus 6.9ft drop protection2, reinforced parts, and molded rubber housing

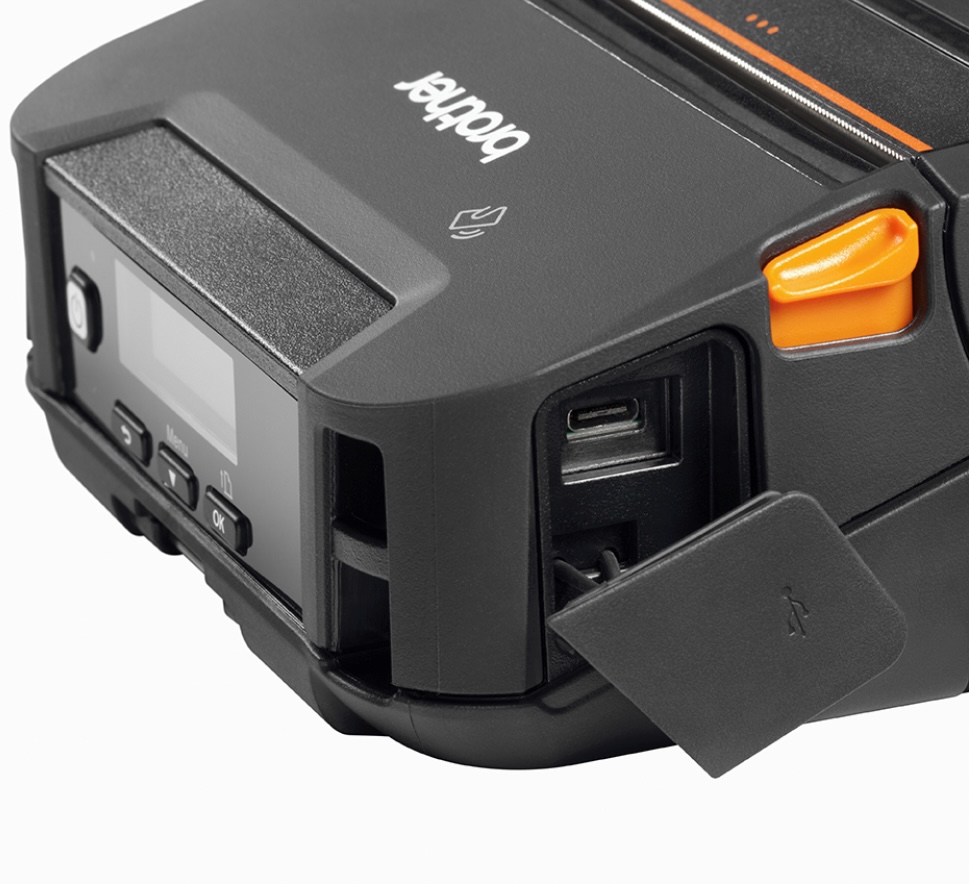

  • Connect easily with USB Type-C®, Bluetooth®, and NFC pairing
  • Enable even greater mobility with optional accessories, including mounts and carrying cases, shoulder straps, belt clips, rechargeable Li-ion battery, in-vehicle DC adapter, 4-bay battery charger, and more3
  • Windows®, Android™, and Apple iOS® compatibility

In the box Printer, belt clip, support documents
Dimensions 6.02in x 6.26in x 2.68in (153mm x 159mm x 68mm)
Weight Without battery: 1.58lbs (717g)
With battery: 1.87lbs (850g)
Memory 256MB DRAM / 64MB Flash
Control panel 1 LED with 4 buttons
Drop protection 6.9ft (2.1m), multiple drops, under controlled environment
Sealing certification IP54
Safety UL, CE, CSA
Operating temperature / humidity Battery: -4° F to 131° F (-20° C to 55° C)
AC adapter: 14° F to 104° F (-10° C to 40° C)
Car adapter: 14° F to 122° F (-10° C to 50° C)
Charging: 32° F to 104° F (0° C to 40° C), 10% to 90% non-condensing, max wet bulb: 80.6° F
Storage temperature / humidity -4° F to 140° F (-20° C to 60° C), 10% to 90% non-condensing, max wet bulb: 113° F (45° C)
Warranty 2 Year Premier Limited Warranty

Power 15V DC 4.0A
Battery Optional rechargeable Li-ion smart battery: 7.2V, 3000mAh
Battery yield 10,000 (1.97in x 1.18in @ 11% density) labels per charge, under controlled environment with optional battery
Battery charging options AC adapter, car adapter
Battery charging time 4 hours with optional battery
Print technology Direct thermal
Resolution 203dpi
Max print speed Up to 5ips
Max print width 4.09in (104mm)
Max print length 118.1in (3m)

Communications interfaces USB-C, MFi, Bluetooth®, NFC
OS compatibility Windows®
For the most up-to-date compatibility, visit our Support Page
Print driver compatibility Windows® and Linux
For the most up-to-date compatibility, visit our Support Page
SDK support Android™ 8 to 15 or later, iOS® 15 to 18 or later
Support software P-Touch Editor, P-Touch Transfer Express, BRConfiguration Tool
Apps Print Service Plugin Support Center, PJ-673 Print, Print SDK Demo, RJ-4040 Print, Mobile Deploy, Mobile Transfer Express

Printer languages P-touch Template2.0, Raster, ESC/P
Emulations ZPL, CPCL (CPCL page print mode / CPCL line print mode)
Linear barcodes CODE 39, ITF (I-2/5) , EAN-8, EAN-13, UPC-A, UPC-E, UPC / EAN EXTENSION, CODABAR, CODE 128, GS1-128 (UCC / EAN 128), POSTNET, GS1 Databar (Omnidirectional / Truncated / Stacked / Stacked Omnidirectional / Limited / Expanded / Expanded Stacked), CODE93, MSI / Plessey, Intelligent Mail Barcode
2D barcodes QR Code (model 1, model 2, micro QR), Maxi Code, PDF417 (Standard, Truncate), MicroPDF 417, Data Matrix (Square, Rectangular), Aztec Code
Fonts ESC/P: 6 BMP & 4 Outline Fonts
P-touch Template: 4 Outline Fonts
ZPL II: 5 BMP & 1 Outline Font
CPCL: 7 BMP Fonts

Downloadable fonts available with font manager

Cutter Tear up & tear down bars
Media sensors Transmissive, reflective, continuous receipt, gap/black mark labels and tags, continuous linerless
Media type Paper and synthetic receipts, labels, tags, linerless (optional)
Media loading Drop in roll
Media roll diameter 2.28in (58mm)
Media inner core diameter Receipt: 0.50in (12.7mm)
Label: 1.00in (25.4mm)
Media width 4.49in (114mm) max
Max media thickness Receipt: 2.3mil to 3.5mil (0.058mm to 0.089mm)
Tag: 3.5mil to 5.3mil (0.089mm to 0.135mm)
Label: 3.2mil to 6.7mil (0.081mm to 0.170mm)
Download the datasheet

Related supplies

RD002U5M

RD007U5M

4.375in bright white economy direct thermal receipt paper continuous roll
Go to product
RD005U1S

RD008U1M

4in x 2in white standard direct thermal labels, die-cut roll
Go to product
RD001U5V2

RDR01U5

2in wide standard direct thermal receipt paper, continuous roll
Go to product
RD003U1P

RDR01U1

2in x 1in white premium direct thermal labels with black mark, die-cut roll
Go to product
RDQ02U1

RDQ03U1

2in x 4in white premium direct thermal labels, die-cut roll
Go to product
RDQ02U1

RDQ02U1

2in x 3in white premium direct thermal labels, die-cut roll
Go to product
RD003U1P

RDQ01U1

2in x 1in white premium label, die-cut roll with gap
Go to product
RD005U1S

RDM06U1

4in x 3in white premium direct thermal labels, die-cut roll
Go to product
RDM05U1

RDM05U1

4in x 3in white premium direct thermal labels, die-cut roll
Go to product
RD002U5M

RDM04U5

4.375in wide premium direct thermal receipt paper, continuous roll
Go to product
RD002U5M

RDM04U1

4in x 4in premium direct thermal label, die-cut roll
Go to product
RD002U5M

RDM03U5

4.375in wide standard direct thermal receipt paper, continuous roll
Go to product

Related accessories

LBX079 Front

LBX079

Carrying case for RuggedJet 4200 printers
Go to product
LBX115001-USBCPower SupplyWithACCord

LBX115001

AC / USB Type-C® charging power supply with AC cord for P-touch EDGE, PocketJet 8 and RuggedJet 3200
Go to product
PA-CR-002ANP

PA-CR-002A

Active docking / mounting station with power and USB connectivity for RuggedJet 4200 printers
Go to product
PA-BC-003

PA-BC-003

Expandable drop-in battery charger for RuggedJet 3200 and RuggedJet 4200 printers
Go to product
LB3690-car-adapter

LB3690

3ft automobile auxiliary power outlet adapter for PocketJet & RuggedJet printers
Go to product
PA-BT-006

PA-BT-006

Rechargeable Li-Ion Smart battery for RuggedJet 4 printers
Go to product
PAAD003-USBCPower Supply

PA-AD-003

AC / USB Type-C® charging power supply (no AC cord) for PocketJet 8, RuggedJet 3200 and P-touch EDGE
Go to product
A black USB-C cable coiled in a circle, with connectors visible at both ends, against a plain white background.

LBX116001

6ft USB cable Type C to C for RuggedJet 3200, PocketJet and P-touch EDGE printers
Go to product
A black USB-C cable coiled in a circle, with connectors visible at both ends, against a plain white background.

LBX114001

4ft USB cable Type C to C for RuggedJet 3200, PocketJet and P-touch EDGE printers
Go to product
LBX110001

LBX110001

10ft USB cable Type A to C for RuggedJet 3200, PocketJet and P-touch EDGE printers
Go to product
LBX106001

LBX106001

6ft USB cable Type A to C for RuggedJet 3200, PocketJet and P-touch EDGE printers
Go to product
LBX104001

LBX104001

4ft USB cable type A to C for RuggedJet 3200, PocketJet and P-touch EDGE printers
Go to product
Software & Drivers

Software & Drivers

Download and install the latest drivers and software for your Brother products.

Get software & drivers
Manuals & Guides

Manuals & Guides

Download the latest manuals and user guides for your Brother products.

Get the product manual
Support & FAQs

Support & FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

Get Support
Quick Links

Quick Links

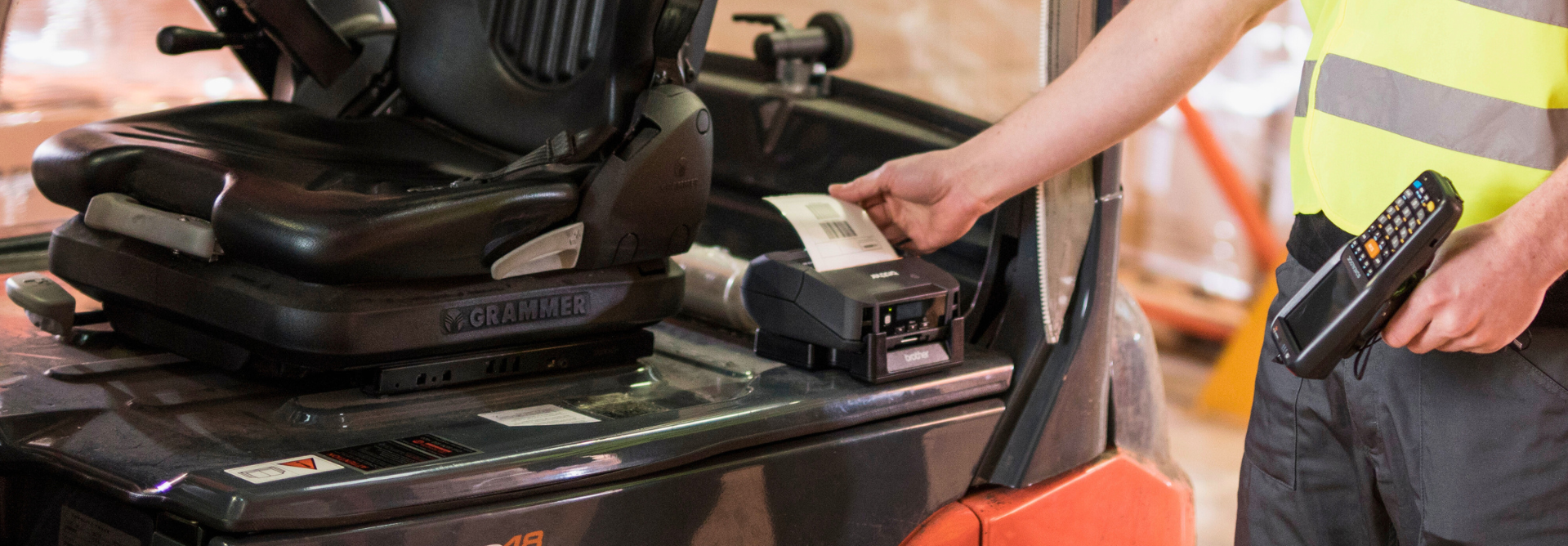

A worker in a safety vest collects a printed label from a machine on a forklift, holding a handheld scanner.
