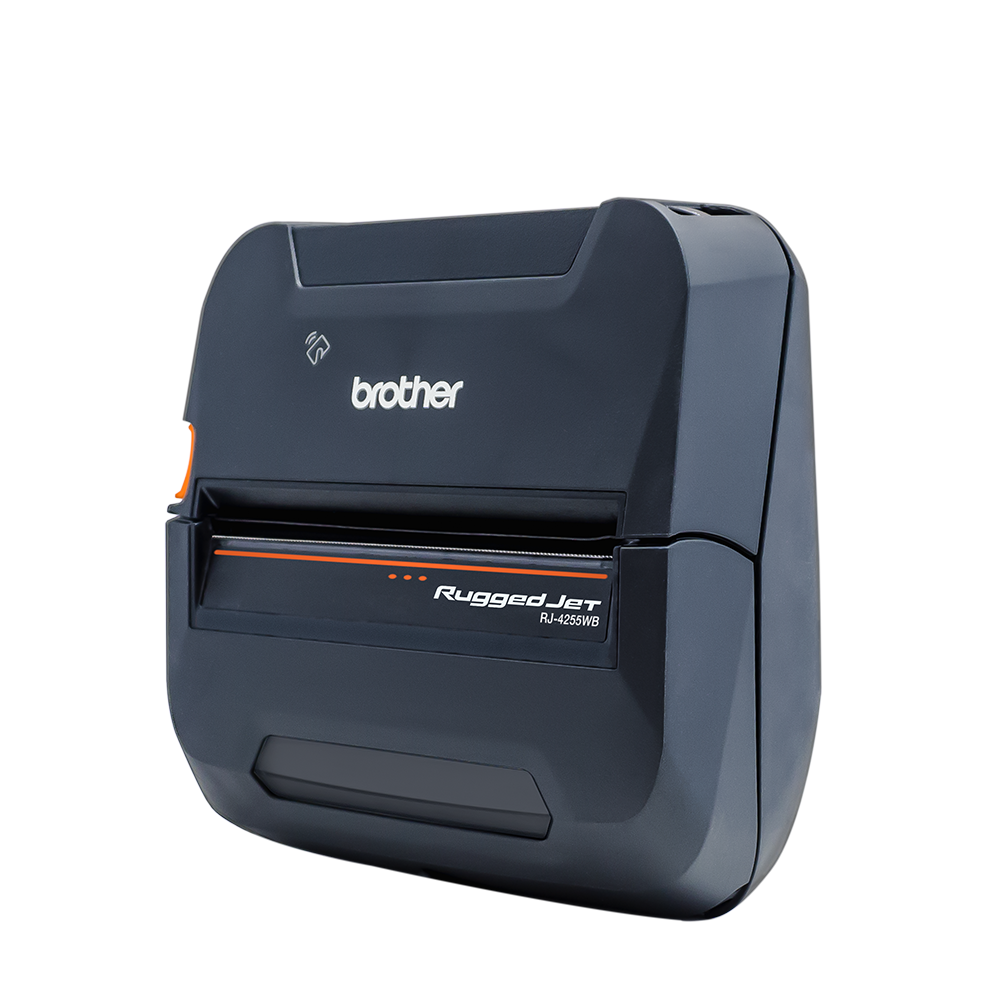

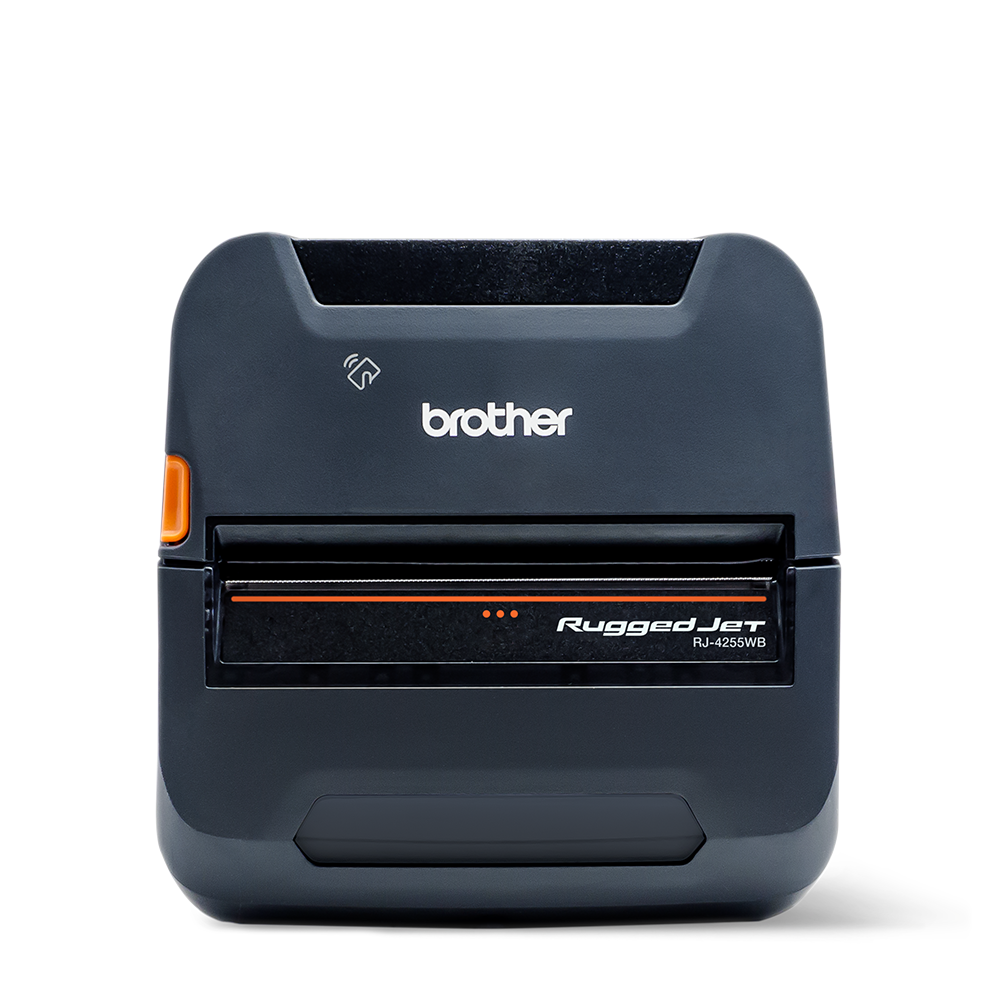

RUGGEDJET 4255WBLCP

4-Inch Rugged Mobile Printer with Wi-Fi®, Bluetooth® Wireless Technology, Smart Li-ion Battery and Charging Conductor Plate

SKU: RJ-4255WB-LCP

Designed for demanding mobile workflows, the RJ-4255WBL mobile label and receipt printer combines rugged durability with flexible connectivity. A pre-installed conductor plate allows easy charging through compatible vehicle or workspace docking stations, while the included smart Li-ion battery supports reliable printing on the move. With dual Bluetooth® and Wi-Fi® radios, Bluetooth® Dual Mode (Classic + LE), and USB Type-C® connectivity, this refreshed model enables fast data transfer and convenient mobile printing for labels, invoices, receipts, and more.

Try one for free Contact sales team

A man in a yellow safety vest scans a label inside a warehouse near a forklift.

Real features

  • Print 2-inch to 4-inch linerless labels at up to 5 inches per second1 print speed to increase efficiency
  • MAC and Bluetooth® address included on printer hardware and outer box for easier pairing and deployment during setup

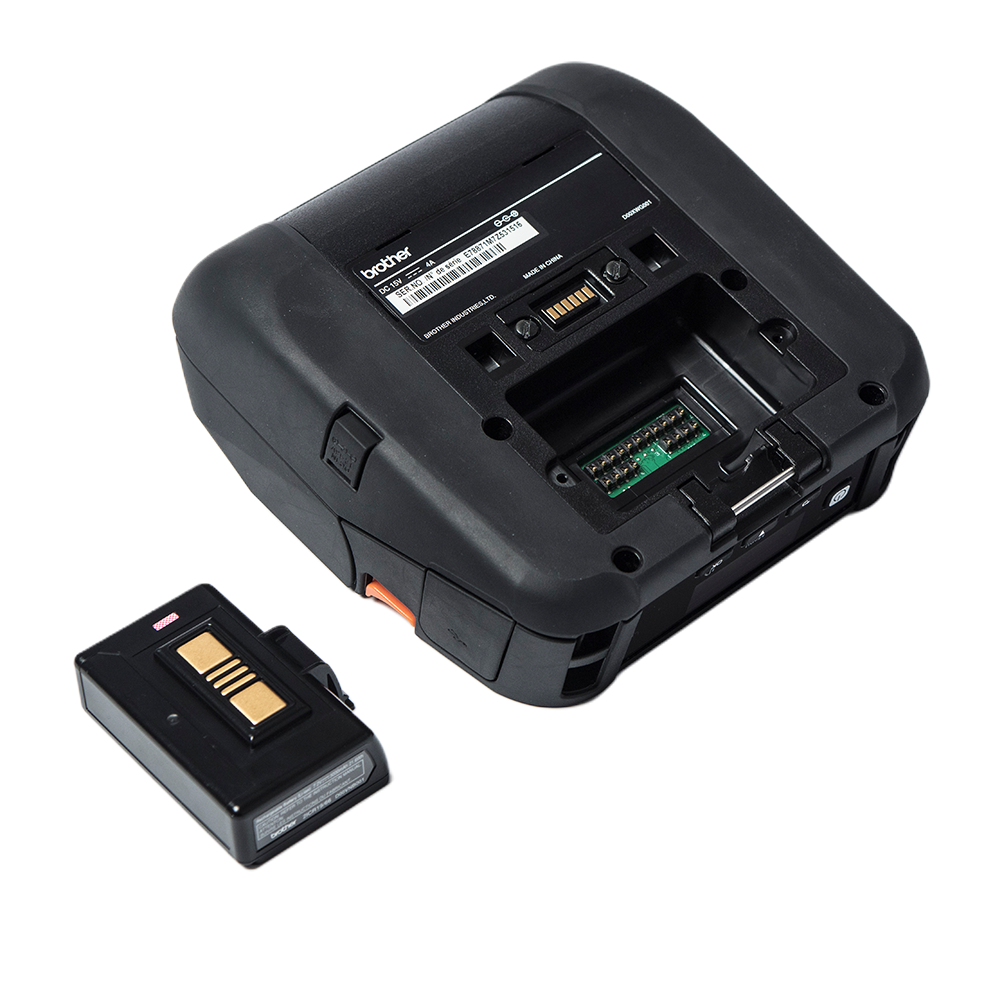

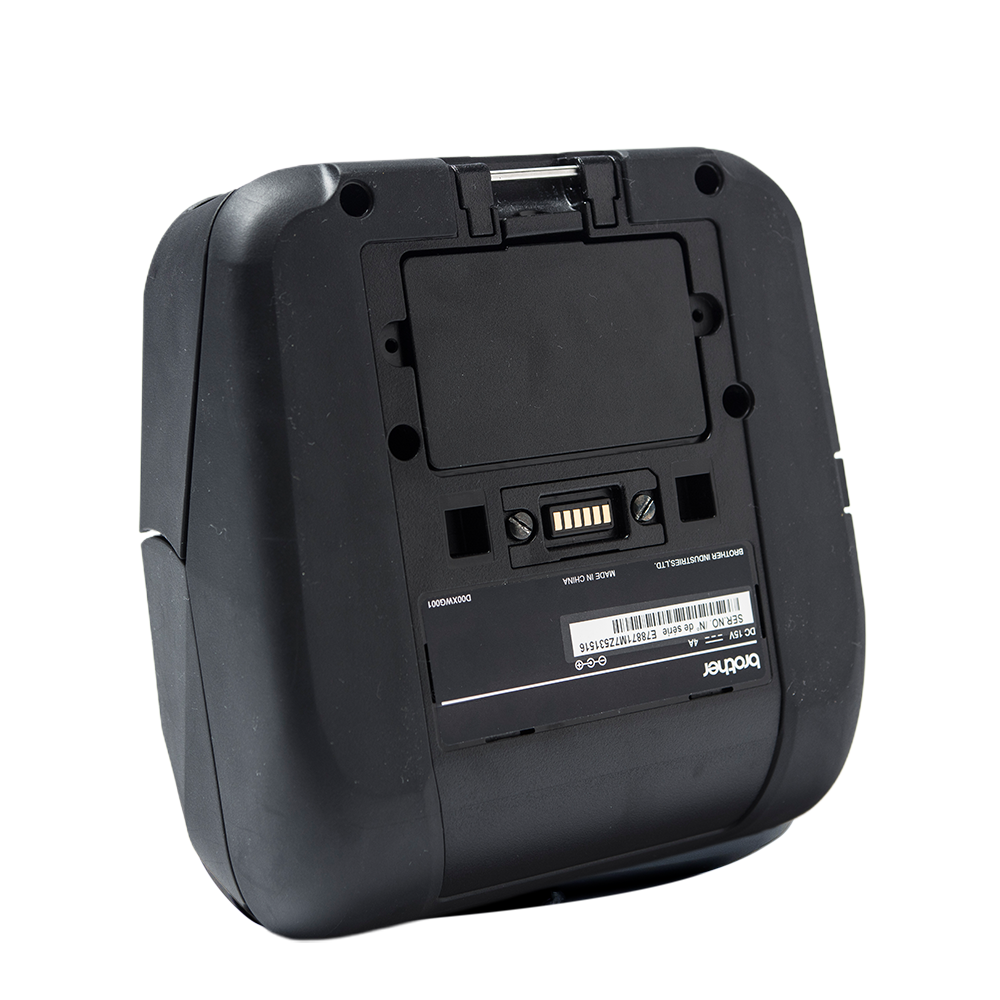

  • Use the pre-installed conductor plate for compatibility with single or 4 bay docking station
  • Stay printing amidst demanding applications or conditions with IP54 certification for dust and moisture, plus 6.9ft drop protection2, reinforced parts, and molded rubber housing
  • Connect easily with USB Type-C®, Bluetooth®, Wi-Fi® and NFC pairing
  • Enable even greater mobility with optional accessories, including mounts and carrying cases, shoulder straps, belt clips, extra batteries, in-vehicle DC adapter, 4-bay battery charger, and more3
  • Windows®, Android™, and Apple iOS® compatibility
  • Print through a full day shift with the industry-leading battery life of the smart Li-ion battery2, complete with battery status indicator

In the box Printer, belt clip, support documents, Li-ion smart battery, conductor plate installed
Dimensions 6.02in x 6.26in x 2.68in (153mm x 159mm x 68mm)
Weight Without battery: 1.58lbs (717g)
With battery: 1.87lbs (850g)
Memory 256MB DRAM / 64MB Flash
Control panel 1 LED with 4 buttons
Drop protection 6.9ft (2.1m), multiple drops, under controlled environment
Sealing certification IP54
Safety UL, CE, CSA
Operating temperature / humidity Battery: -4° F to 131° F (-20° C to 55° C)
AC adapter: 14° F to 104° F (-10° C to 40° C)
Car adapter: 14° F to 122° F (-10° C to 50° C)
Charging: 32° F to 104° F (0° C to 40° C), 10% to 90% non-condensing, max wet bulb: 80.6° F
Storage temperature / humidity -4° F to 140° F (-20° C to 60° C), 10% to 90% non-condensing, max wet bulb: 113° F (45° C)
Warranty 2 Year Premier Limited Warranty

Power 15V DC 4.0A
Battery Rechargeable Li-ion smart battery: 7.2V, 3000mAh
Battery yield 10,000 (1.97in x 1.18in @ 11% density) labels per charge, under controlled environment with optional battery
Battery charging options AC adapter, car adapter
Battery charging time 4 hours with optional battery
Print technology Direct thermal
Resolution 203dpi
Max print speed Up to 5ips
Max print width 4.09in (104mm)
Max print length 118.1in (3m)

Communications interfaces USB-C, MFi, Bluetooth®, NFC, Wi-Fi®
Communications security Infrastructure Mode: Personal mode: Open System (None, WEP 64/128 bit); Common Key Authentication (WEP 64/128 bit), WPA/WPA2-PSK/WPA3-SAE (TKIP+AES, AES), WPA3-SAE (AES) Enterprise mode: EAP-FAST (TKIP+AES, AES), PEAP (TKIP+AES, AES), EAP-TLS (TKIP+AES, AES), EAP-TTLS (TKIP+AES, AES) Wireless Direct Mode: WPA2-PSK (AES) Ad-hoc Mode: N/A
OS compatibility Windows®
For the most up-to-date compatibility, visit our Support Page
Print driver compatibility Windows® and Linux
For the most up-to-date compatibility, visit our Support Page
SDK support Android™ 8 to 15 or later, iOS® 15 to 18 or later
Support software P-Touch Editor, P-Touch Transfer Express, BRConfiguration Tool, BRAdmin Professional 4, BRAdmin Light, BRAgent
Apps Print Service Plugin Support Center, PJ-673 Print, Print SDK Demo, RJ-4040 Print, Mobile Deploy, Mobile Transfer Express

Printer languages P-touch Template2.0, Raster, ESC/P
Emulations ZPL, CPCL (CPCL page print mode / CPCL line print mode)
Linear barcodes CODE 39, ITF (I-2/5) , EAN-8, EAN-13, UPC-A, UPC-E, UPC / EAN EXTENSION, CODABAR, CODE 128, GS1-128 (UCC / EAN 128), POSTNET, GS1 Databar (Omnidirectional / Truncated / Stacked / Stacked Omnidirectional / Limited / Expanded / Expanded Stacked), CODE93, MSI / Plessey, Intelligent Mail Barcode
2D barcodes QR Code (model 1, model 2, micro QR), Maxi Code, PDF417 (Standard, Truncate), MicroPDF 417, Data Matrix (Square, Rectangular), Aztec Code
Fonts ESC/P: 6 BMP & 4 Outline Fonts
P-touch Template: 4 Outline Fonts
ZPL II: 5 BMP & 1 Outline Font
CPCL: 7 BMP Fonts

Downloadable fonts available with font manager

Cutter Tear up & tear down bars
Media sensors Transmissive, reflective, continuous receipt, gap/black mark labels and tags, continuous linerless
Media type Paper and synthetic receipts, labels, tags, linerless (optional)
Media loading Drop in roll
Media roll diameter 2.28in (58mm)
Media inner core diameter Receipt: 0.50in (12.7mm)
Label: 1.00in (25.4mm)
Media width 4.49in (114mm) max
Max media thickness Receipt: 2.3mil to 3.5mil (0.058mm to 0.089mm)
Tag: 3.5mil to 5.3mil (0.089mm to 0.135mm)
Label: 3.2mil to 6.7mil (0.081mm to 0.170mm)
Download the datasheet
