Get 2-inch printing fit to your work with endurance to handle everyday hazards.

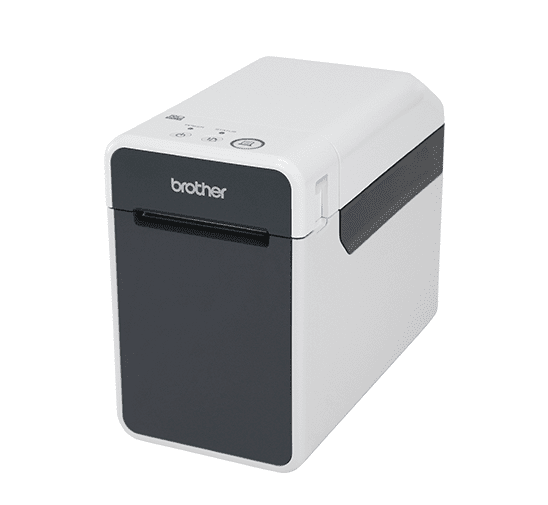

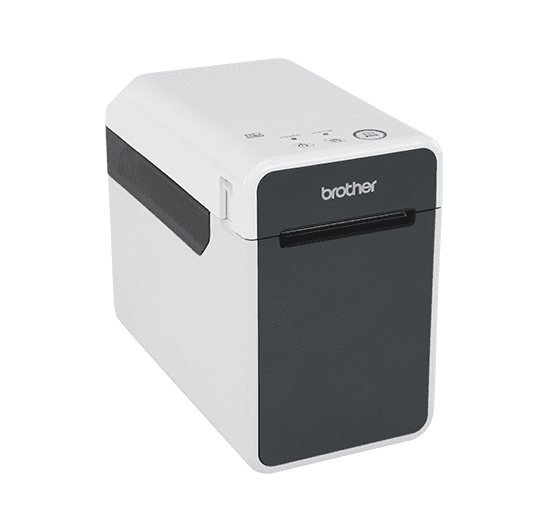

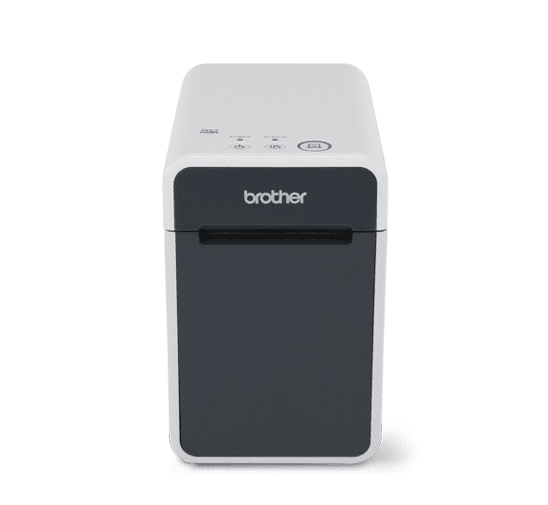

TD 2135N
High-Resolution 2-Inch Direct Thermal Desktop Printer with USB and Network Capability
SKU: TD-2135N
Featuring 300dpi print resolution, the TD-2135N desktop printer lets you print small fonts and barcodes on professional labels, tags, and receipts up to 2.4 inches with consistent clarity. Conveniently connect to and print from mobile devices and PCs using USB or network capability, and work from where you want to by adding an optional touch-panel keyboard for self-contained printing. And continue to keep things simple by adding an optional peeler that removes the label backing for you2.
Real Features
- Print labels, receipts, and tags up to 2.4 inches wide at up to 6 inches per second print speed to increase efficiency
- 300dpi thermal print resolution for top quality
- Connect easily with Ethernet, USB 2.0 and RS-232C Serial interfaces
- Increase ease of use with an optional peeler or print without using a PC by adding an optional keyboard and screen for standalone printing capabilities2
- Windows® and Android™ compatibility
- Easily change media rolls with capacity up to 5 inch in diameter with drop-in spindle-less design
- Create professional labels with the included P-touch Editor label design software application1
- Get the confidence of a 2-year Premier Limited Warranty
| In the box | Printer, AC adapter, power cord, USB mini cable, CD quick start guide, safety guide |
| Dimensions | 4.33in x 6.77in x 8.46in ((109.98mm x 171.96mm x 214.88mm) |
| Weight | 2.96lbs (1342.6g) |
| Memory | 32MB DRAM / 16MB Flash |
| Control panel | 2 LEDs with 3 buttons Optional touch panel and LCD |
| Real time clock | Optional, available with touch panel & LCD |
| Operating temperature / humidity | 41° F to 104° F (5° C to 40° C), 20% to 80% non-condensing |
| Storage temperature / humidity | -4° F to 140° F ( -20° C to 60° C), 20% to 80% non-condensing |
| Warranty | 2 Years Premier Limited Warranty |
| Power | External AC Adapter (Input: 100-240V AC 50/60Hz 2.1A, Output: 25V DC 6A) |
| Battery | Optional rechargeable Li-ion battery |
| Battery yield | 2000 labels per charge, under controlled environment |
| Battery charging options | AC adapter, car adapter |
| Battery charging time | 4 hours |
| Print technology | Direct thermal |
| Resolution | 300dpi |
| Max print speed | Up to 6ips |
| Max print width | 2.205in (56mm) max |
| Max print length | 39.37in (1,000mm) |
| Communications interfaces | Ethernet LAN (10/100 Base-TX), USB 2.0, Host USB, RS232C Serial |
| Optional interfaces | Wi-Fi® (802.11 a/b/g/n), Bluetooth® Ver 5.2 (Classic & LE) via TD-2135NWB |
| Communications security | WEP 64/128bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), WPA3-SAE(TKIP+AES), WPA3-SAE(AES), EAP-FAST, PEAP, EAP-TLS, EAP-TTLS |
| OS compatibility | Windows®, Linux For the most up-to-date compatibility, visit our Support Page |
| Print driver compatibility | Windows®, Linux, Android™, iOS® For the most up-to-date compatibility, visit our Support Page |
| SDK support | Windows |
| Support software | Brother Design/Print, Network Printer Management and Setup Software |
| Apps | Support Center, Print SDK Demo, Mobile Deploy, Mobile Transfer Express |
| Printer languages | ZPL II, CPCL |
| Emulations | Raster Graphics, Text (Template) ESC P, AirPrint® |
| Linear barcodes | Code39, Code93, Code128, ITF, UPC-A/E, EAN8/13, GS1-128 (UCC / EAN - 128), GS1 DataBar (RSS), MSI / Plessey, Industrial 2/5, Codabar (NW-7), POSTNET |
| 2D barcodes | PDF417 / MicroPDF417, Data Matrix, Maxicode, QR Code / Micro QR Code, Aztec |
| Fonts | 6 BMP & 4 Outline fonts |
| Media sensors | Top cover, transmissive (gap), full width moveable reflective (black mark), optional peeler |
| Media type | Roll or fanfold, die cut or continuous label, continuous receipt, tag and wristband |
| Media loading | Drop-in spindle-less design, rear feed (external roll and fanfold) |
| Media roll diameter | 5.00in (127mm) |
| Media inner core diameter | 1in (25.4mm) min |
| Media width | 2.48in (63mm) max |
| Max media thickness | 11mil (0.279mm) max |
| Max print height | 39.37in (1,000mm) max |
