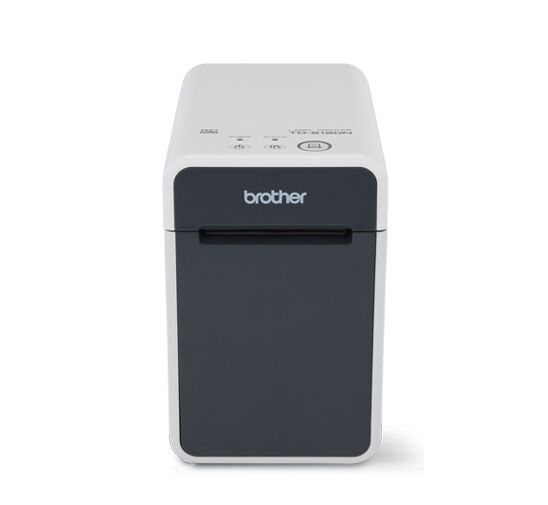

TD 2120N

Standard-Resolution 2-Inch Direct Thermal Desktop Printer with USB and Network Capability

SKU: TD-2120N

With standard USB and network capability, the compact TD-2120 lets you share the printer between multiple PCs and mobile devices and manage it remotely. Print labels, tags, and receipts up to 2.4 inches from connected or networked mobile devices and PCs. Plus, configure your printer to your specific wireless needs with optional Li-ion battery, Wi-Fi® or Bluetooth® wireless technology interfaces. It’s a versatile, affordable labeling solution that delivers the quality you need.

warning sign This product has been discontinued.

Nurse Grabbing Medical Bracelet Being Printed from TD-2 Desktop Printer

Real Features

  • Print labels, receipts, and tags up to 2.4 inches wide at up to 6 inches per second print speed to increase efficiency
  • 203dpi thermal print technology for top quality
  • Connect easily with Ethernet LAN (10/100Base-TX), USB 2.0, Host USB, and RS-232C Serial interfaces
  • Increase mobility with optional Wi-Fi® LAN (802.11b/g/n), Bluetooth® wireless technology Ver. 2.0+EDR (Class 2) wireless or long-life Li-ion rechargeable battery
  • Easily change media rolls with capacity up to 5 inch in diameter with drop-in spindle-less design
  • Adjustable edge-to-edge reflective media sensor
  • Create professional labels with the included P-touch Editor label design software application

In the box Printer, AC adapter, power cord, USB mini cable, CD quick start guide, safety guide
Dimensions 4.33in x 6.77in x 8.46in ((109.98mm x 171.96mm x 214.88mm)
Weight 2.96lbs (1342.6g)
Memory 32MB DRAM / 16MB Flash
Control panel 2 LEDs with 3 buttons
Optional touch panel and LCD
Real time clock Optional, available with touch panel & LCD
Operating temperature / humidity 41° F to 104° F (5° C to 40° C), 20% to 80% non-condensing
Storage temperature / humidity -4° F to 140° F ( -20° C to 60° C), 20% to 80% non-condensing
Warranty 2 Years Premier Limited Warranty

Power External AC Adapter (Input: 100-240V AC 50/60Hz 2.1A, Output: 25V DC 6A)
Battery Optional rechargeable Li-ion battery
Battery yield 2000 labels per charge, under controlled environment
Battery charging options AC adapter, car adapter
Battery charging time 4 hours
Print technology Direct thermal
Resolution 203dpi
Max print speed Up to 6ips
Max print width 2.205in (56mm) max
Max print length 39.37in (1,000mm)

Communications interfaces Ethernet LAN (10/100 Base-TX), USB 2.0, Host USB, RS232C Serial
Optional Interfaces Wi-Fi® WLAN (802.11b/g/n Infrastructure, 802.11b Adhoc), Bluetooth® Version 2.0 + EDR (Class 2)
Communications security Adhoc: Open System (None / WEP)
Infrastructure: WEP 64/128bit, WPA-PSK (TKIP / AES), WPA2-PSK (AES)
Protocols: 802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)
OS compatibility Windows®, Linux
For the most up-to-date compatibility, visit our Support Page
Print driver compatibility Windows®, Linux, Android, Windows Mobile®, iOS®
For the most up-to-date compatibility, visit our Support Page
SDK support Windows® bPAC, Android 6 or higher, iOS® 10 or higher
Support software Brother Design/Print, Network Printer Management and Setup Software
Apps Support Center, Print SDK Demo, Mobile Deploy, Mobile Transfer Express

Printer languages ZPL II, CPCL
Emulations Raster Graphics, Text (Template) ESC P, AirPrint
Linear barcodes Code39, Code93, Code128, ITF, UPC-A/E, EAN8/13, GS1-128 (UCC / EAN - 128), GS1 DataBar (RSS), MSI / Plessey, Industrial 2/5, Codabar (NW-7), POSTNET
2D barcodes PDF417 / MicroPDF417, Data Matrix, Maxicode, QR Code / Micro QR Code, Aztec
Fonts 3 BMP & 5 Outline fonts

Media sensors Top cover, transmissive (gap), full width moveable reflective (black mark), optional peeler
Media type Brother RD roll or fanfold, die cut or continuous label, continuous receipt, tag and wristband
Media loading Drop-in spindle-less design, rear feed (external roll and fanfold)
Media roll diameter 5.00in (127mm)
Media inner core diameter 1in (25.4mm) min
Media width 2.48in (63mm) max
Max media thickness 11mil (0.279mm) max
Max print height 39.37in (1,000mm) max
