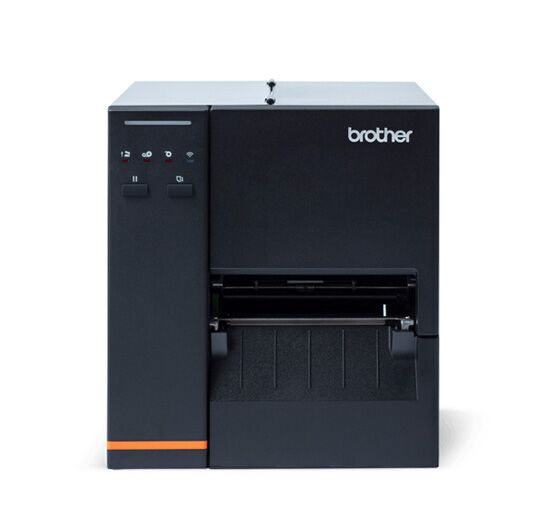

Titan 4010TN Industrial printer front view
The Brother Titan Industrial Printer 4010TN features a sleek, rectangular design complete with an LED control panel. Its wide opening for label output optimizes efficiency, and the orange accent on the front adds a modern touch to this compact powerhouse.

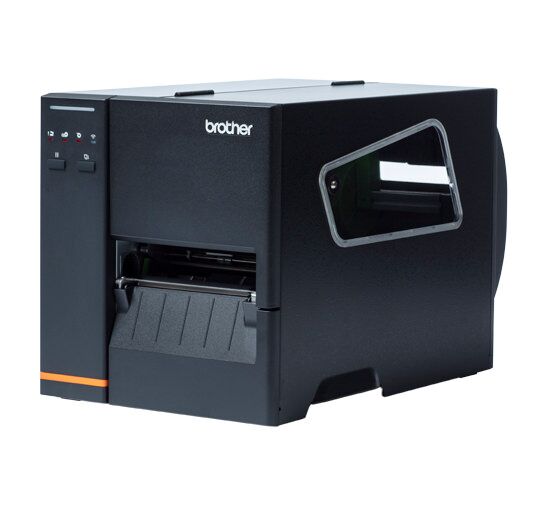

The Brother Titan Industrial Printer 4010TN features a cubic design with a compact control panel on the front and a paper output tray at the bottom, all against a plain white background.
A hand presses the power button on a sleek black device, the Brother Titan Industrial Printer 4010TN. The panel features icons for power, pause, and language settings, with a small light indicator above it. Its modern aesthetic, set against a plain white background, makes it an ideal addition to any workspace.
The Brother Titan Industrial Printer 4010TN is displayed with its side panel open, revealing a large roll of white labels inside. This printer boasts an upright design and includes black and green components.
The Brother Titan Industrial Printer 4010TN is a sleek label printer with an open side that exposes its green internal components and rollers. Its modern black design, paired with multiple compartments for effortless label placement, makes it ideal for efficient, high-volume printing tasks.
A person skillfully inserts the ribbon spool for the Brother Titan Industrial Printer 4010TN, as a roll of white labels stands by in the background, ready to be used in this setup.
Small footprint Titan Industrial Printer creates package labels for cookies
Warehouse employee uses the two button control panels to print pallet labels from Titan Industrial printer
Warehouse employees receives pallet labels printer by the Titan Industrial printer

BROTHER TITAN INDUSTRIAL PRINTER 4010TN

Entry-Level, High-Volume Barcode Label Printer with Basic Control Panel

SKU: TJ-4010TN

The TJ-4010TN leverages direct thermal or thermal transfer printing to deliver volume printing at an amazingly affordable price. Expect print speeds of up to 6 inches per second with a crisp 203dpi label resolution on all your workstations and throughout your warehouse. Operations are made easy for all users with a 2-key basic control panel and simple Ethernet/LAN connection. And a low price point makes this the ideal industrial printer for all stages of your warehouse fulfillment workflow.

Try one for free Contact sales team
Hand holding a shipping label printed by a Titan Industrial printer

Real features

  • Leverage direct thermal or thermal transfer printing in one printer
  • Print barcode labels, shipping labels, and more at up to 6 inches per second print speeds
  • 203dpi resolution creates crisp, scannable labels
  • Up to 450m ribbon capacity to support higher volume printing
  • Ethernet/LAN connectivity lets you share the printer between multiple users and manage remotely
  • Allow basic user control with the 2-key, 4-icon LED control panel
  • Explore field upgradeable options to customize your printer, including Wi-Fi®, label cutter, and label peeler
  • Make integration easy with WMS and ERP compatibility and a full suite of included emulations, SDKs, and drivers
  • Get the confidence of a 2-year Premier Limited Warranty with Printhead Perks

In the box Printer, power cord, USB cable, paper core, safety guide
Dimensions 9.8in x 10.8in x 17.2in (248mm x 274mm x 436mm)
Weight 20.7lbs (9.4kg)
Memory 128MB DRAM / 128MB Flash
Control panel 2 Keys with 3-Color Status LED, 4 Icon LEDs
Real time clock Standard
Audio device Standard
Safety UL/cUL 62368-1
Operating temperature / humidity 32° F to 104° F (0° C to 40° C), 25% to 85% non-condensing
Storage temperature / humidity -40° F to 140° F (-40° C to 60° C), 10% to 90% non-condensing
Warranty 2 Year Premier Limited Warranty

Power Built-in power supply (100-240V AC 50/60Hz 2.0A)
Energy conservation certifications Energy Star 3.0
Print technology Direct thermal & thermal transfer
Resolution 203dpi
Max print speed Up to 6ips
Max print width 4.21in (107 mm)

Communications interfaces Standard: Ethernet LAN (10/100Base-TX), USB 2.0, Host USB, RS232C Serial Optional: Wi-Fi® WLAN (5GHz 802.11a/n, 2.4GHz 802.11b/g/n Infrastructure)
Communications security WLAN: IPv4, ARP, ICMP, UDP, TCP, RAW, DHCP Client, DHCP FQDN Option, Unicast DHCP Offer
Wired LAN: ARP, MAC, BOOTP, DHCP, DNS, WINS, FTP SERVER, HTTP server, SNTP client, SMTP client, SNMP V1, Telnet, LPR/LPD, RAW 9100, IPV4, ICMP, IGMP, TCP, UDP
OS compatibility Windows®, MacOS X®, macOS®, Linux
For the most up-to-date compatibility, visit our Support Page
Print driver compatibility Windows®, Mac®, Linux
For the most up-to-date compatibility, visit our Support Page
SDK support Windows®, Android™ 5.0 or higher, iOS® 10.0 or higher
Support software Seagull BarTender UltraLite Design/Print Software Application Brother Printer Management Software Tool

Printer languages FBPL II, ZPL II, EPL2, DPL
Emulations FBPL II, ZPL II, EPL2, DPL
Linear barcodes Code 11 (USD-8), Code 39, Code 93, Code 128 with subsets A/B/C, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, GS1-128 (UCC/EAN-128), MSI Plessey, POSTNET, Standard 2-of-5 (IATA), Industrial 2-of-5, Interleaved 2-of-5, ITF-14, EAN-14, LOGMARS, Codabar (NW-7), Planet, Telepen, Deutsche Post Identcode, Deutsche Post Leitcode, Datalogic 2-of-5 (China Post)
2D barcodes CODABLOCK F, PDF417, Code 49, GS1 DataMatrix, MaxiCode, QR Code, TLC39, MicroPDF417, GS1 DataBar (RSS), Aztec Code
Fonts 8 BMP & 1 Scalable

Cutter Optional guillotine full cutter
Media sensors Transmissive (full width moveable gap), reflective (black mark), ribbon encoder and ribbon end, head open peeler (optional)
Media type Labels, tags, roll or fanfold, die cut, notch or continuous
Media loading Internal: 1in spindle with 3in core adapters (2 pieces)
External: rear feed (external roll and fanfold)
Media roll diameter 8.00in (203.2mm) outer diameter
Media inner core diameter Wound out 1in (25.4mm) or 3in (76.2mm) core inside diameter
Media width Width (tear, peeler): 0.79in to 4.72in (20mm to 120mm)
Width (cutter): 0.79in to 4.49in (20mm to 114mm)
Max media thickness 2.36mil to 11mil (0.06mm to 0.28mm)
Ribbon types Wax, semi (wax / resin), resin
Ribbon length 1,476ft (450m) per roll, 3.2in (81.3mm) outer diameter, wound in/out on 1in (25.4mm) core inside diameter (no notch)
984ft (300m) per roll, 2.64in (67mm) outer diameter, wound in/out on 1in (25.4mm) core inside diameter (no notch)
Ribbon width 1.57in to 4.33in (40mm to 110mm)
Ribbon take up core 4.33in (110mm) wide, 1in (25.4mm) inside diameter (no notch)
Download the datasheetTéléchargez la brochure
