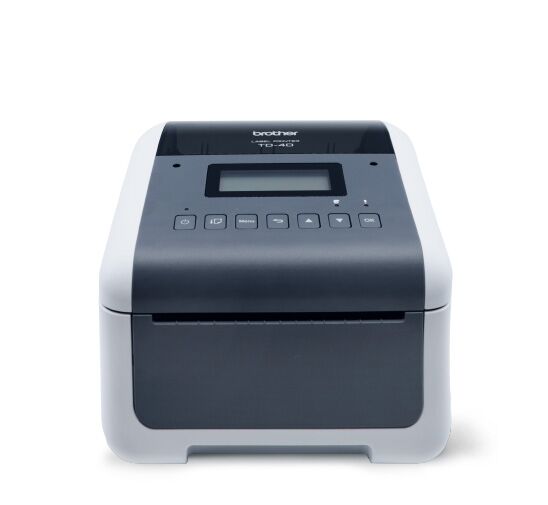

TD 4550DNWB
High-Resolution 4-Inch Direct Thermal Desktop Printer with Wi-Fi®, MFi and Bluetooth® Wireless Technology
SKU: TD-4550DNWB
Featuring 300dpi high print resolution, the TD-4450DNWB desktop printer lets you print 4-inch barcodes, shipping labels, tags, and more with clear details and graphics. Wi-Fi®, MFi and Bluetooth® connectivity enable you to conveniently print from a powered cart or workstation across your facility floor.
Real Features
- Print 4-inch labels and tags with up to 6 inches per second print speed to increase efficiency
- 300dpi direct thermal print technology for reliable quality
- Connect easily with Wi-Fi®, Ethernet LAN, Bluetooth® with MFi protocol, USB 2.0, and RS232C serial interfaces
- Increase productivity with optional peeler and cutter accessories
- Integrate seamlessly with industry-leading WMS systems, connect to mobile devices, and print directly from within the SAP® Printer Vendor program
- Windows®, Linux, Android™, and Apple iOS® MFi and AirPrint® compatibility
| In the box | Printer, AC adapter, power cord, USB cable, ribbon take-up 1in core, ribbon spindle (2 pieces), documents (Quick Start Guide, Safety Guide) |
| Dimensions | 7.1in x 6.1in x 8.8in (180mm x 155mm x 224mm) |
| Weight | 5.51lbs (2499g) |
| Memory | 64 DRAM / 256MB Flash |
| Control panel | 1 3-color LED with 6 buttons, 2.3in Color LCD |
| Real time clock | Standard |
| Audio device | Standard (buzzer) |
| Operating temperature / humidity | 41° F to 104° F (5° C to 40° C), 25% to 85% non-condensing |
| Storage temperature / humidity | -4° F to 140° F (-20° C to 60° C), 10% to 90% non-condensing |
| Warranty | 2 Years Premier Limited Warranty |
| Power | External AC Adapter (Input: 100-240V AC 50/60Hz 2.0A, Output: 24V DC 5A) |
| Energy conservation certifications | Energy Star |
| Print technology | Direct thermal |
| Resolution | 300dpi |
| Max print speed | Up to 6ips |
| Max print width | 4.27in (108.4mm) max |
| Max print length | 118.11in (3,000mm) |
| Communications interfaces | Wi-Fi® WLAN (5GHz 802.11a/n and 2.4GHz 802.11b/g/n Infrastructure, 802.11g/n Wireless Direct), Ethernet LAN (10/100Base-TX), Bluetooth® Version 4.2 BLE/MFi, USB 2.0, Host USB, RS232C Serial |
| OS compatibility | Windows®, Linux For the most up-to-date compatibility, visit our Support Page |
| OS printing | Windows®, Mobile Android™, Mobile iOS®, Linux |
| Print driver compatibility | Windows®, Linux For the most up-to-date compatibility, visit our Support Page |
| SDK support | Windows® bPAC, Android™ 6 or higher, iOS® 10 or higher |
| Support software | Brother Design/Print, Network Printer Management and Setup Software |
| Apps | Support Center, Print SDK Demo, Mobile Deploy, Mobile Transfer Express |
| Printer languages | P-touch Template2.0, Raster, ESC/P |
| Emulations | ZPL, EPL, DPL, CPCL, SBPL(option) |
| Linear barcodes | Code39, Code93, Code128, ITF, UPC-A/E, EAN8/13, GS1-128 (UCC/EAN-128), GS1 DataBar (RSS), MSI / Plessey, Codabar (NW-7), POSTNET |
| 2D barcodes | PDF417 / MicroPDF417, Data Matrix, Maxicode, QR Code/Micro QR Code, Aztec |
| Fonts | 6 BMP & 5 Outline fonts |
| Cutter | Optional |
| Media sensors | Top cover, transmissive (gap), full width moveable reflective (black mark), optional peeler |
| Media type | Roll or fanfold, die cut or continuous label, receipt, tag and wristband |
| Media loading | Drop-in spindle-less design rear feed (external roll and fanfold) |
| Media roll diameter | 5.00in (127mm) |
| Media inner core diameter | All core sizes down to 0.5in (12.7mm) |
| Media width | 4.65in (118mm) |
| Max media thickness | 11mil (0.279mm) |
