Get 2-inch printing fit to your work with endurance to handle everyday hazards.

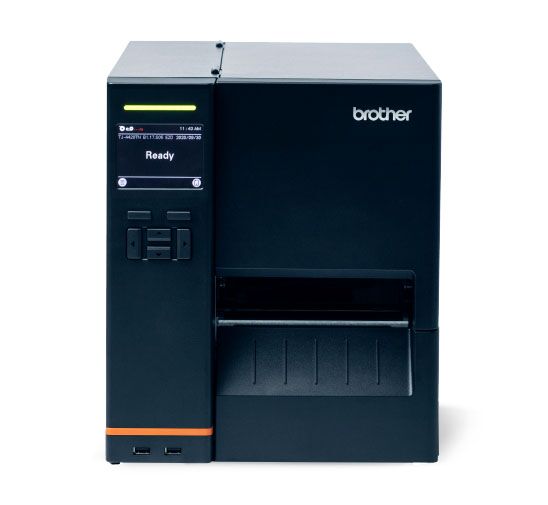

BROTHER TITAN INDUSTRIAL PRINTER 4620TN
Ultra-high Resolution, High-volume Barcode Label Printer with LCD Display
SKU: TJ-4620TN
The Brother Titan Industrial Printer model TJ-4620TN answers the call for ultimate print resolution. Featuring 600dpi, this high-volume printer has what it takes to print small fonts, 2D barcodes, and detailed product ID labels with reliable precision and quick speeds up to 6 inches per second1.
Real features
- Print 2D barcodes, small-detailed product ID labels, and more at up to 6 inches per second1 print speed
- 600dpi thermal print technology for the highest possible resolution and readability
- Stay printing longer with up to 600m ribbon capacity
- Ethernet/LAN, USB 2.0, Host-USB, and RS232C Serial connectivity let you share the printer between multiple users and manage remotely
- See printer status and make selections on the fly with a bright multicolor status light and LCD display
- Explore field upgradeable options to customize your printer, including: Wi-Fi®, Bluetooth® wireless technology, label cutter, label peeler and liner rewinder
- Make integration easy with WMS and ERP compatibility and a full suite of included emulations, SDKs, and drivers
- Get the confidence of a 2-year Premier Limited Warranty with Printhead Perks
| In the box | Printer, USB cable, power cord, safety guide |
| Dimensions | 10.9in x 12.8in x 19.8in (276mm x 326mm x 502mm) |
| Weight | 33.8lbs (15.3kg) |
| Memory | 256MB DRAM / 512MB Flash, Optional 32GB MicroSD Card |
| Control panel | 1 3-color status LED with 6 buttons, 3.5in color TFT LCD control panel, dual host USB interface ports |
| Real time clock | Standard |
| Audio device | Standard |
| Safety | UL/cUL 62368-1 |
| Operating temperature / humidity | 32° F to 104° F (0° C to 40° C), 25% to 85% non-condensing |
| Storage temperature / humidity | -40° F to 140° F (-40° C to 60° C), 10% to 90% non-condensing |
| Warranty | 2 Year Premier Limited Warranty |
| Power | Built-in power supply (100-240V AC 50/60Hz 2.0A) |
| Energy conservation certifications | Energy Star 3.0 |
| Print technology | Direct thermal & thermal transfer |
| Resolution | 600dpi |
| Max print speed | Up to 6ips |
| Max print width | 4.1in (104mm) |
| Communications interfaces | Standard: Ethernet LAN (10/100Base-TX), USB 2.0, Host USB, RS232C Serial Optional: Wi-Fi® WLAN (5GHz 802.11a/n, 2.4GHz 802.11b/g/n Infrastructure) |
| Communications security | WLAN: IPv4, ARP, ICMP, UDP, TCP, RAW, DHCP Client, DHCP FQDN Option, Unicast DHCP Offer LAN: ARP, MAC, BOOTP, DHCP, DNS, WINS, FTP Server, HTTP Server, SNTP Client, SMTP Client, SNMP V1, Telnet, LPR/LPD, RAW 9100, IPv4, ICMP, IGMP, TCP, UDP |
| OS compatibility | Windows®, MacOS X®, macOS®, Linux For the most up-to-date compatibility, visit our Support Page |
| Print driver compatibility | Windows®, Mac®, Linux For the most up-to-date compatibility, visit our Support Page |
| SDK support | Windows®, Android™ 5.0 or higher, iOS® 10.0 or higher |
| Support software | Seagull BarTender UltraLite Design/Print Software Application Brother Printer Management Software Tool |
| Printer languages | FBPL II, ZPL II, EPL2, DPL |
| Emulations | FBPL II, ZPL II, EPL2, DPL |
| Linear barcodes | Code 11 (USD-8), Code 39, Code 93, Code 128 with subsets A/B/C, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, GS1-128 (UCC/EAN-128), MSI Plessey, POSTNET, Standard 2-of-5 (IATA), Industrial 2-of-5, Interleaved 2-of-5, ITF-14, EAN-14, LOGMARS, Codabar (NW-7), Planet, Telepen, Deutsche Post Identcode, Deutsche Post Leitcode, Datalogic 2-of-5 (China Post) |
| 2D barcodes | CODABLOCK F, PDF417, Code 49, GS1 DataMatrix, MaxiCode, QR Code, TLC39, MicroPDF417, GS1 DataBar (RSS), Aztec Code |
| Fonts | 8 BMP & 1 Scalable |
| Cutter | Optional guillotine full cutter |
| Media sensors | Transmissive (full width moveable gap), reflective (black mark), ribbon encoder and ribbon end, head open peeler (optional) |
| Media type | Labels, tags, roll or fanfold, die cut, notch or continuous |
| Media loading | Internal: 1in spindle with 3in core adapters (2 pieces) External: rear feed (external roll and fanfold) |
| Media roll diameter | 8.00in (203.2mm) outer diameter |
| Media inner core diameter | Wound out 1.5in (38.1mm) or 3in (76.2mm) core inside diameter |
| Media width | 0.79in to 4.5in (20mm to 114mm) |
| Max media thickness | 2.36mil to 11mil (0.06mm to 0.28mm) |
| Ribbon types | Wax, semi (wax / resin), resin |
| Ribbon length | 1,968ft (600m) per roll, 3.5in (90mm) outer diameter, wound in/out on 1in (25.4mm) core inside diameter (no notch) 1,476ft (450m) per roll, 3.2in (81.3mm) outer diameter, wound in/out on 1in (25.4mm) core inside diameter (no notch) 984ft (300m) per roll, 2.64in (67mm) outer diameter, wound in/out on 1in (25.4mm) core inside diameter (no notch) |
| Ribbon width | 1.0in to 4.5in (25.4mm to 114.3mm) |
| Ribbon take up core | Ribbon quick release take up spindle, no ribbon take up core required |
