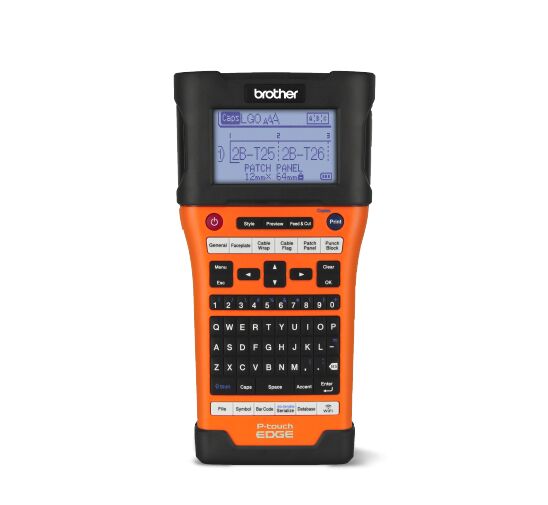

P-TOUCH EDGE 550W

Handheld Industrial Label Printer with Wi-Fi® and Auto-Cutter (up to 24mm labels)

SKU: PT-E550W

With the EDGE PT-E550W, you get the simple, powerful jobsite management tool that helps you tackle industrial labeling projects with top efficiency. Create and print labels up to 24mm – from apps using Wi-Fi® connectivity, from your PC. Import an existing database or serialize a list of labels and print with a series of automatic half-cuts, making it refreshingly easy to peel and apply. Finally, this project-ready printer features a full QWERTY keyboard, large LCD screen, barcode and industrial application keys, plus P-touch Editor software to design custom labels with ease.

Cable Wrap Labels Getting Printed by Datacom Professional

Real Features

  • Label large industrial projects with 6 label sizes from 3.5mm to 24mm
  • Increase efficiency with 5 quick application keys for cable wrap, cable flag, patch panel, punch block and faceplate labels
  • Connect to import databases and design labels wirelessly from apps like Cable Label Tool, Transfer Express, and iPrint&Label using Wi-Fi® connectivity
  • Design your own custom labels including barcodes and QR codes with the included P-touch Editor software and PC connectivity
  • Increase productivity with advanced alpha and numeric serialization and an automatic half-cutter
  • Hard carry case, rechargeable Li-ion battery, AC adapter, and USB cable included

In the box Handheld label printer, Li-ion battery pack, AC adapter, 12mm flexible ID tape (8m), mini USB cable (3ft), CD (software, printer driver, utility), wrist strap, deluxe carrying case, user manual, patch panel ruler card
Dimensions 4.8in x 3.6in x 9.8in (121.9mm x 91.4 x 248.9mm)
Weight Without tape and battery: 2.4lbs (1.1kg)
Memory Up to 99 label designs (18,297 characters)
Control panel 70 keys (QWERTY)
15 characters x 2 rows LCD and backlight
Operating temperature / humidity 50° F to 95° F (10° C to 35° C), 20% to 80% non-condensing
Storage temperature / humidity -4° F to 140° F (-20° C to 60° C), 20% to 80% non-condensing
Warranty 2 Year Limited Exchange Warranty

Power AC adapter (12VDC, 2A)
Battery Rechargeable Li-ion battery, Alkaline 6 AA (optional), Ni-MH 6 AA (optional)
Battery yield 16 tapes on one charge
Battery charging options AC adapter
Battery charging time 6 hours
Energy conservation certifications Energy Star
Print technology Laminating thermal transfer
Resolution 180dpi
Max print speed Up to 1.2ips via AC adapter, up to 0.78ips via battery
Max print width 0.71in (18mm)
Max print length 39.37in (1m)

Communications interfaces USB v2.0 (mini-B), WLAN 802.11b/g/n (infrastructure, adhoc)
Communications security SSID (32 characters), WEP 64/128 bit, WPA2-PSK (AES), LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS
OS compatibility Windows®, MacOS®, Android, iOS®
For the most up-to-date compatibility, visit our Support Page
Print driver compatibility Windows®, Mac®
For the most up-to-date compatibility, visit our Support Page
SDK support Android, iOS®
Support software Printer Driver, P-touch Editor v5.1 (with Cable Labeling Wizard), Transfer Manager v2.2, Printer Setting Tool, Transfer Express, Update Software, BRAdmin Professional 4, BRAdmin Light, BRAgent, Driver Deployment Wizard, Firmware Update Tool
Apps Pro Label Tool, Mobile Cable Label Tool, iLink&Label, iPrint&Label, Mobile Deploy, iPrint&Scan, Mobile Transfer Express, Print SDK Demo, Print Service Plug-in, P-touch Design&Print, P-touch Design&Print 2, Color Label Editor

Printer languages Raster, ESC P, P-touch
Linear barcodes Code39, Code128, I-2/5 (ITF), UPC-A/E, EAN-8/13, GS1-128 (UCC/EAN-128), Codabar (NW-7)
Fonts Helsinki, Brussels, US, Los Angeles, San Diego, Florida, Calgary, Belgium, Atlanta, Adams, Brunei, Sofia, Germany, Letter Gothic
Function keys General, faceplate, cable wrap, cable flag, patch panel, punch block, file, symbol, barcode, serialize (standard, advanced), database, Wi-Fi®
Keyboard QWERTY, mini size rubber (70 keys)
Print capabilities Up to 25 alpha-numeric characters, up to 99 alpha-numeric character increments (individual or simultaneous), auto formats (faceplate, cable crap, cable flag, patch panel, punch block), 386 symbols, text insert, multi-block up to 99, 20 languages, up to 99 graphic images (6MB)
Print layout Print preview, up to 7 lines per label, 10 type styles, 9 type sizes, 5 type widths, vertical printing, repeat printing up to 99 copies

Cutter Automatic dual blade cutter (full and easy to peel strip cutting)
Media sensors Smart Identification
Media type HGe, TZe, HSe, STe
Media loading Cartridge
Media sizes 24mm, 18mm, 12mm, 9mm, 6mm, 3.5mm
Media width 24mm (0.94in) max
Max print height 0.71in (18mm)
